Detail Information

Bore Diameter:	8 Mm	Outside Diameter:	19 Mm
Width Inner Ring:	12 Mm	Width Outer Ring:	9 Mm
Weight:	16.98 G	Ball Diameter:	15.875 Mm
Highlight:	Radial Spherical Bearing 20mm bore , Radial Spherical Bearing 200°C temp , Radial Spherical Bearing mechanical structures

Product Description

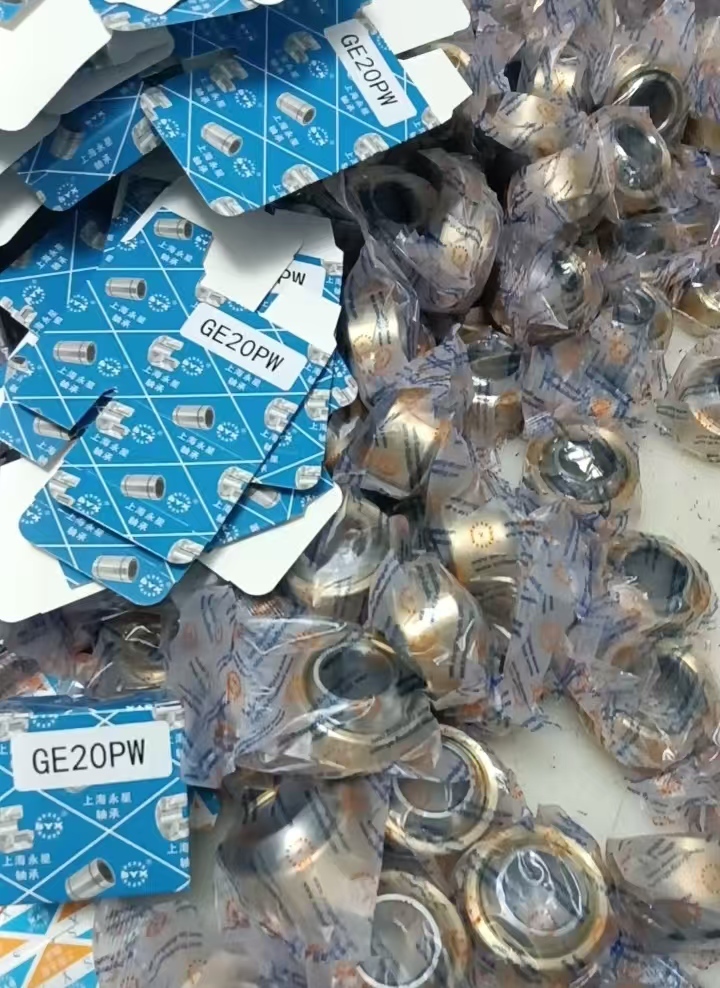

GE20PW Spherical Plain Bearings

Compact spherical plain bearings designed for applications requiring swinging, tilting, or rotating motion with high load capacity and angular misalignment accommodation.

Main Dimensions

Parameter	Value	Description
d	20 mm	Bore diameter bearing
D	40 mm	Outside diameter bearing
B	25 mm	Width Inner ring
C	18 mm	Width Outer ring
≈m	150 g	Weight

Mounting Dimensions

Parameter	Value	Description
r1smin	0.3 mm	Edge Spacing
r2smin	0.3 mm	Edge Spacing
Damin	14 mm	Housing Connection Diameter
damax	10.3 mm	Connection measurement, inner ring

Dimensions & Tolerances

Parameter	Value	Description
dK	34.925 mm	Ball diameter
α	14 °	Tilt angle
dT	H7	Bore diameter bearing, tolerance
DOT	0 mm	Outside diameter, upper tolerance
DUT	-0.009 mm	Outside diameter, lower tolerance
BOT	0 mm	Width inner ring, upper tolerance
BUT	-0.12 mm	Width inner ring, lower tolerance
dOT	0.015 mm	Bore diameter bearing, upper tolerance
COT	0 mm	Width outer ring, upper tolerance
CUT	-0.24 mm	Width outer ring, lower tolerance
Gr	0.006 - 0.035	Radial Clearance
Grmax	0.035 mm	Radial clearance, maximum
Grmin	0.006 mm	Radial clearance, minimum

Performance Data

Parameter	Value	Description
Cr	57000 N	Basic dynamic load rating, radial
C0r	140000 N	Basic static load rating, radial

Temperature Range

Parameter	Value	Description
Tmin	-50 °C	Operating temperature min.
Tmax	200 °C	Operating temperature max.

Applications

GE20PW radial spherical plain bearings are widely used in mechanical structures requiring swinging, tilting, or rotating motion due to their compact design, high load-carrying capacity, and ability to accommodate significant angular misalignment.

Construction machinery: connecting rods and cylinder trunnions in excavators, loaders, and cranes
Automotive industry: suspension systems, steering mechanisms, and shock absorber connection points
Agricultural machinery: moving parts in seeders and harvesters
Industrial equipment: textile machinery, printing machinery, and robotic joints
