Name: Industrial Radial Spherical Bearing with Hard Chromium / PTFE Fabric
Brand: Shanghai Yongxing Bearing Manufacturing Co., Ltd.
SKU: GEEW20ETL-2RS
Availability: InStock

Detail Information

Inner Diameter:	140mm	Static Load:	780KN
Bore Diameter:	20 Mm	Outside Diameter:	35 Mm
Basic Dynamic Load:	83 KN	Basic Static Load:	139 KN
Highlight:	PTFE Fabric Radial Spherical Bearing , Industrial Radial Spherical Bearing , Hard Chromium Self Lubricating Bearing

Product Description

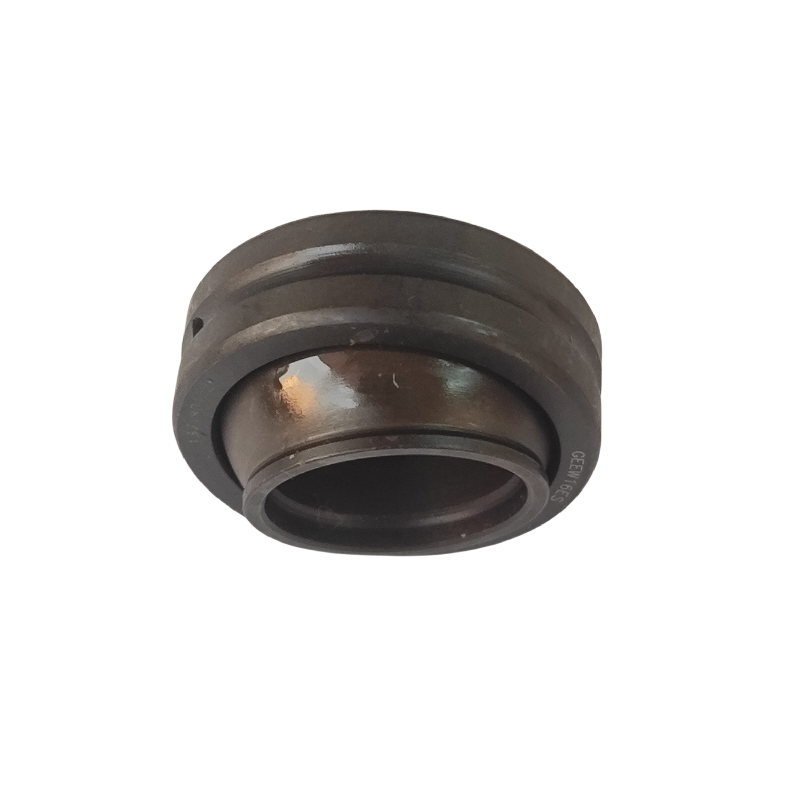

GEEW20ETL-2RS Spherical Plain Bearings

Maintenance-free radial spherical plain bearing to ISO 12 240-1, dimension series W, sliding contact surface hard chromium/PTFE fabric, sealed

Inner ring with cylindrical extensions at each side
Outer ring with an axially split, non-separable
Outer ring: bearing steel, hardened and phosphated, sliding contact surface with PTFE fabric liner
Inner ring: bearing steel, hardened, sliding contact surface hard-chromium plated
Lip seals on both sides, NBR seal with sheet steel insert is available on request (suffix: GS)

Properties

Feature	Description
Maintenance-free	Maintenance
Hard chromium/PTFE fabric	Sliding contact surface
Lip seals	Sealing
Bearing steel	Material, inner ring
Bearing steel	Material, outer ring

Dimensions

Parameter	Value	Description
d	20 mm	Bore diameter
D	35 mm	Outside diameter
B	20 mm	Width inner ring
C	12 mm	Width outer ring
dk	29 mm	Ball diameter
a	4 °	Tilt angle
d2	25 mm	Connection measure Inner ring
r1	0.3 mm	Chamfer dimension
r2	0.3 mm	Chamfer dimension

Load Capacity

Parameter	Value	Description
Cr	83 kN	Basic dynamic load rating, radial
C0r	139 kN	Basic static load rating, radial

Weight

Parameter	Value	Description
≈m	0.069 kg	Weight

Mounting Dimensions

Parameter	Value	Description
da max	25 mm	Connection measure inner ring, max.
Da min	27.5 mm	Housing connection diameter, min.

Radial Clearance

Parameter	Value	Description
Max.	0.04 mm	Radial clearance

Tolerance

Parameter	Value	Description
dOT	0.021 mm	Bore diameter, upper tolerance
DUT	-0.011 mm	Outside diameter, lower tolerance
BUT	-0.21 mm	Inner ring width, lower tolerance
CUT	-0.24 mm	Outer ring width, lower tolerance

Temperature Range

Parameter	Value	Description
Tmin	-30 °C	Operating temperature min.
Tmax	130 °C	Operating temperature max.

Tag:

Place of Origin:	Shanghai, China
Brand Name:	SYX
Certification:	ISO/TS 16949: 2009
Model Number:	GEEW20ETL-2RS

Minimum Order Quantity:	100 pcs
Packaging Details:	wooden pallet
Delivery Time:	30 working days
Payment Terms:	T/T,L/C,Western Union
