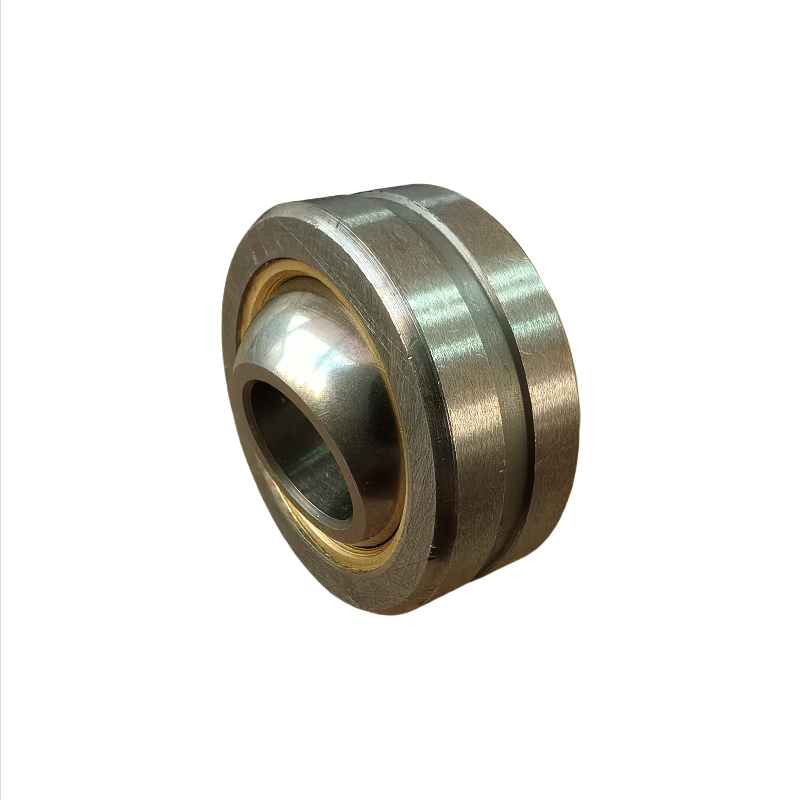

Name: GEBK12S Spherical Plain Bearings 12 Mm Bore Diameter With Hard Chromium Plated Inner Ring
Brand: Shanghai Yongxing Bearing Manufacturing Co., Ltd.
SKU: GEBK12S
Availability: InStock

Detail Information

Bore Diameter:	12 Mm	Outside Diameter:	30 Mm
Inner Ring Width:	16 Mm	Outer Ring Width:	12 Mm
Basic Dynamic Load:	13 KN	Operating Temperature:	-50 °C To 150 °C
Highlight:	12 mm Bore Diameter Spherical Plain Bearings , Steel Sliding Contact Surface Spherical Bearing , Hard Chromium Plated Ring Plain Bearing

Product Description

GEBK12S Spherical Plain Bearings

Radial spherical plain bearing, DIN ISO 12240-1, dimension series K, four pieces, requiring maintenance. Sliding contact surface: steel/brass.

Outer ring: carbon steel, formed, oil coated
Inner ring: 52100 bearing steel, ground, hardened, hard chromium plated
Insert liner: brass
This spherical plain bearing must be properly lubricated with grease

Properties

Requiring maintenance	Maintenance
Steel/Brass	Sliding contact surface
Without	Sealing
Bearing steel	Material, inner ring
Carbon steel	Material, outer ring

Dimensions

d	12 mm	Bore diameter
D	30 mm	Outside diameter
B	16 mm	Width inner ring
C	12 mm	Width outer ring
dk	22.225 mm	Ball diameter
a	13 °	Tilt angle
d2	15.4 mm	Connection measure Inner ring
r1	0.3 mm	Chamfer dimension
r2	0.6 mm	Chamfer dimension

Load Capacity

Cr	13 kN	Basic dynamic load rating, radial
C0r	31 kN	Basic static load rating, radial

Weight

≈m

0.058 kg

Weight

Mounting Dimensions

da max

15.4 mm

Connection measure inner ring, max.

Radial Clearance

Min.	0.006 mm	Radial clearance
Max.	0.035 mm	Radial clearance

Tolerance

dOT	0.018 mm	Bore diameter, upper tolerance
DUT	-0.013 mm	Outside diameter, lower tolerance
BUT	-0.1 mm	Inner ring width, lower tolerance
COT	0.1 mm	Outer ring width, upper tolerance
CUT	-0.1 mm	Outer ring width, lower tolerance

Temperature Range

Tmin	-50 °C	Operating temperature min.
Tmax	150 °C	Operating temperature max.

Tag:

Place of Origin:	Shanghai, China
Brand Name:	SYX
Certification:	IATF 16949: 2016
Model Number:	GEBK12S

Minimum Order Quantity:	100 PCS
Packaging Details:	Wooden Pallet
Delivery Time:	30 working days
Payment Terms:	,T/T,L/C,Western Union
