Detail Information

Bore Diameter:	8 Mm	Outside Diameter:	19 Mm
Width Inner Ring:	12 Mm	Width Outer Ring:	9 Mm
Weight:	16.98 G	Ball Diameter:	15.875 Mm
Highlight:	8mm bore diameter spherical plain bearings , 200 °C operating temperature spherical plain bearings , mechanical structures radial spherical bearings

Product Description

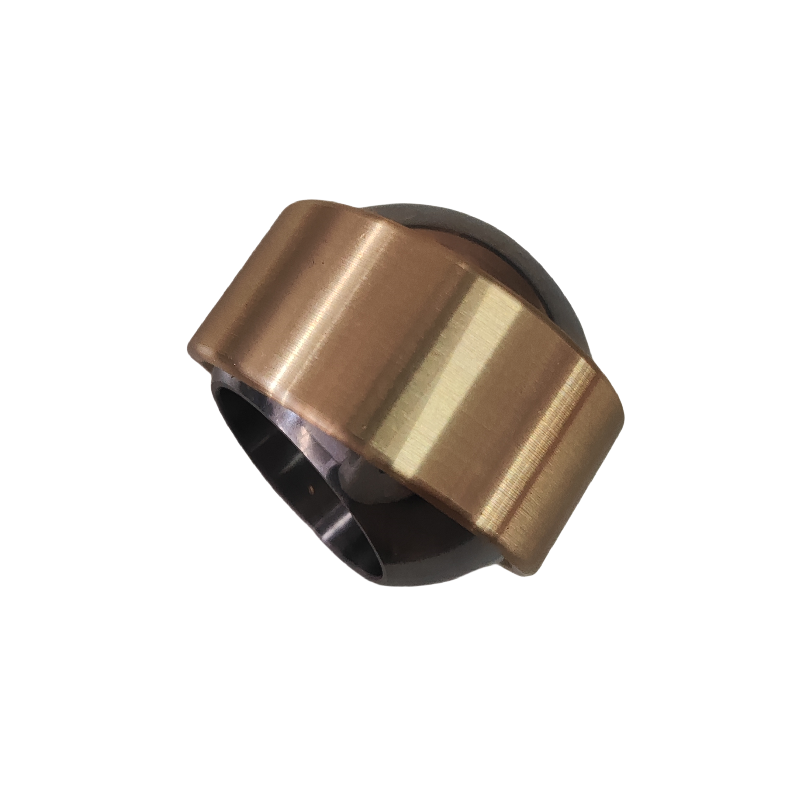

GE8-PW Spherical Plain Bearings

Compact spherical plain bearings designed for applications requiring swinging, tilting, or rotating motion with high load capacity and angular misalignment accommodation.

Main Dimensions

Parameter	Value	Description
d	8 mm	Bore diameter bearing
D	19 mm	Outside diameter bearing
B	12 mm	Width Inner ring
C	9 mm	Width Outer ring
≈m	16.98 g	Weight

Mounting Dimensions

Parameter	Value	Description
r1smin	0.3 mm	Edge Spacing
r2smin	0.3 mm	Edge Spacing
Damin	14 mm	Housing Connection Diameter
damax	10.3 mm	Connection measurement, inner ring

Dimensions & Tolerances

Parameter	Value	Description
dK	15.875 mm	Ball diameter
α	14 °	Tilt angle
dT	H7	Bore diameter bearing, tolerance
DOT	0 mm	Outside diameter, upper tolerance
DUT	-0.009 mm	Outside diameter, lower tolerance
BOT	0 mm	Width inner ring, upper tolerance
BUT	-0.12 mm	Width inner ring, lower tolerance
dOT	0.015 mm	Bore diameter bearing, upper tolerance
COT	0 mm	Width outer ring, upper tolerance
CUT	-0.24 mm	Width outer ring, lower tolerance
Gr	0.006 - 0.035	Radial Clearance
Grmax	0.035 mm	Radial clearance, maximum
Grmin	0.006 mm	Radial clearance, minimum

Performance Data

Parameter	Value	Description
Cr	12,900 N	Basic dynamic load rating, radial
C0r	32,100 N	Basic static load rating, radial

Temperature Range

Parameter	Value	Description
Tmin	-50 °C	Operating temperature min.
Tmax	200 °C	Operating temperature max.

Applications

GE8-PW radial spherical plain bearings are widely used in mechanical structures requiring swinging, tilting, or rotating motion due to their compact design, high load-carrying capacity, and ability to accommodate significant angular misalignment.

Construction machinery: connecting rods and cylinder trunnions in excavators, loaders, and cranes
Automotive industry: suspension systems, steering mechanisms, and shock absorber connection points
Agricultural machinery: moving parts in seeders and harvesters
Industrial equipment: textile machinery, printing machinery, and robotic joints

Tag:

Place of Origin:	Shanghai, China
Brand Name:	SYX
Certification:	ISO/TS 16949: 2009
Model Number:	GE8

Minimum Order Quantity:	100 PCS
Packaging Details:	wooden pallet
Delivery Time:	30 working days
Payment Terms:	T/T,L/C,Western Union

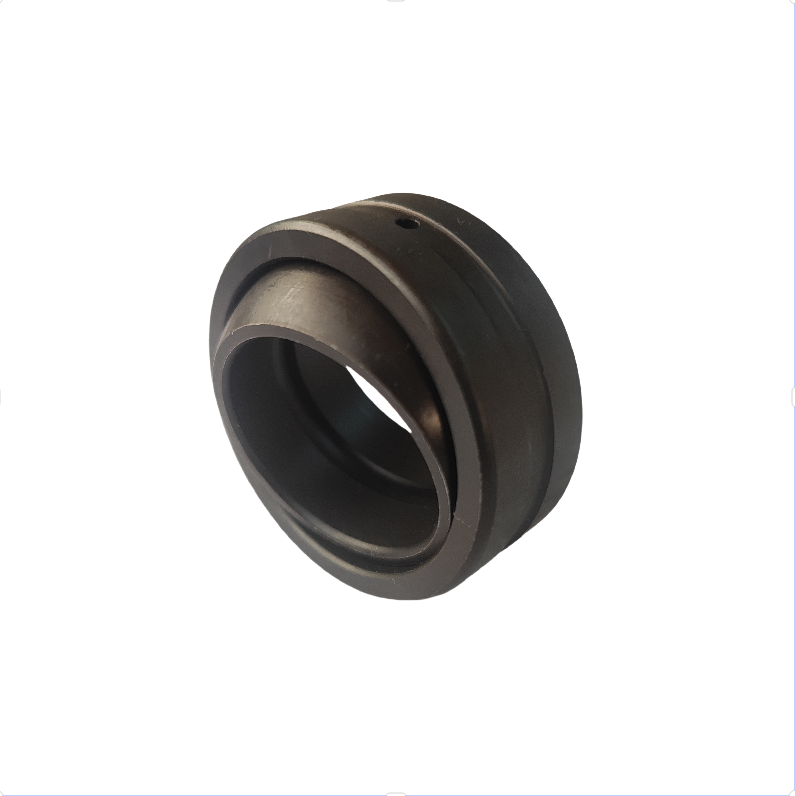

GE8-PW Radial Spherical Bearing 8mm Bore 200 °C Operating Temp For Mechanical Structures
