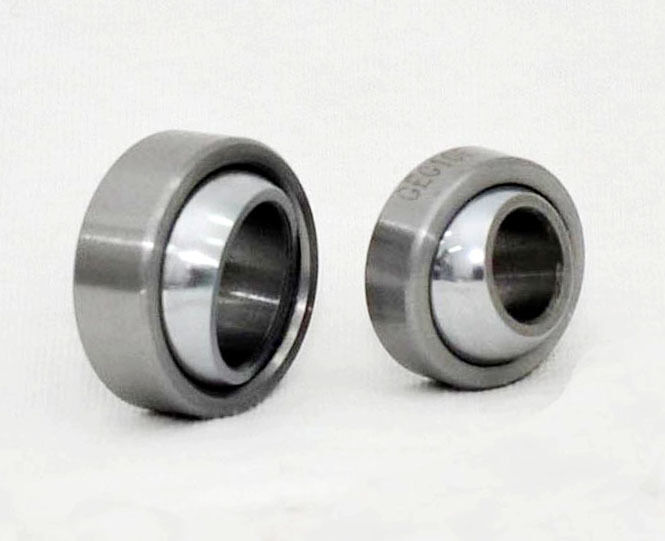

Name: Radial Spherical Plain Bearing with PTFE Composite Material Carbon Steel Outer Ring
Brand: Shanghai Yongxing Bearing Manufacturing Co., Ltd.
SKU: GE...C/GEG...C
Availability: InStock

Detail Information

Type:	Rod End,Sliding,Washers,Flanged,Strips	Precision Rating:	P0 P6 P5 P4 P2,High Precision,P0,P6,P4
Bore Size:	1 - 70 Mm,4 - 100 Mm,4.826 - 50.80 Mm,0.165 - 2 Inch,30 Mm	Material:	Chrome Steel,stainless Steel,carbon Steel,SSIC,Chrome/stainless
Service:	OEM Customized Services,OEM Accept,OEM Or Private Label Accepted.,good After Sales Service	Application:	Industry,Engineering Hydraulic Cylinders,OFFROAD,gearboxes;reducers;electrical Machine;other Machine,Engineering
Feature:	High Temperature Resistance .carrying Capability,Sealing Performance,maintenance Free,Durable,no Noise	Product Name:	Steel Thrust Radial Spherical Plain Bearing,GEH17C Radial Spherical Plain Bearing,Quality Assured Radial Spherical Plain Bearing COM,Lubricated Radial Spherical Plain Bearing GE,COMT Series
Packing:	Thread Protection,Individual Or Industrial,Boxes,Netual Packing,Individually Bagged	Package:	Plastic Bag+ Box+ Carton + Pallet,single Box Or As Your Requirements,Plastic+carton Joint Bearing GE100ES
Ball Material:	Hard Chrome Plated,52100 Bearing Steel,SSIC,Si3N4,ZrO2	Oem:	Acceptable,accepted
Size:	Custom Size,10015090mm,Customized	Item:	Universal Joint,Hydraulic Spherical Plain Bearing
Weight:	0.006-0.38 Kg,4.65kg,0.027-39.91kg	Market:	Europe,Globle,AUSTRALIA,USA
Sample:	Available,Accept,free	Heat Treated:	Heat Treated,HRC40-60
Base Material:	CuZn25Al+Graphite,graphite,Customized
Highlight:	Carbon Steel Radial Spherical Plain Bearing , PTFE Composite Spherical Plain Bearing , Hard Chrome Plated Inner Ring Bearing

Product Description

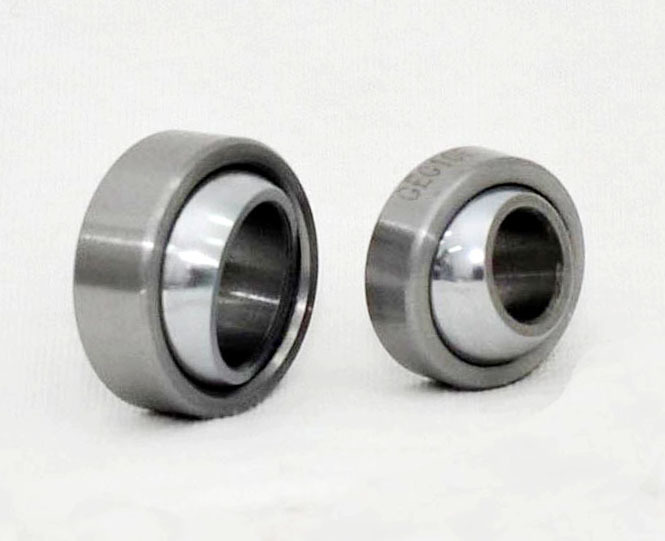

GE...C/GEG...C Spherical Plain Bearings (4-30mm)

Product Overview

High-performance spherical plain bearings designed for industrial applications requiring reliable motion control and durability.

Construction & Materials

Outer Ring: Carbon steel construction, precision-pressed around the inner ring for secure fit and optimal performance
Outer Ring Race: Bonded with PTFE composite material for superior low-friction properties and extended service life
Inner Ring: Manufactured from carbon chromium steel, hardened for exceptional strength and wear resistance
Surface Treatment: Spherical surface of inner ring features hard chrome plating for enhanced corrosion resistance and smooth operation

Size Range: 4mm to 30mm
Type: Spherical Plain Bearing
Applications: Industrial machinery, automotive systems, construction equipment

Bearing number	Dimensions 　　　　　　mm										Load ratings kN		Weight ≈kg
Bearing number	d		D		B	C	dk	rs min	r1s min	α˚ ≈	Dynamic	Static	Weight ≈kg
GE4C	4		12		5	3	8	0.3	0.3	16	2.1	5.4	0.003
GE5C	5		14		6	4	10	0.3	0.3	13	3.6	9.1	0.005
GE6C	6		14		6	4	10	0.3	0.3	13	3.6	9.1	0.004
GE8C	8		16		8	5	13	0.3	0.3	15	5.8	14	0.007
GE10C	10		19		9	6	16	0.3	0.3	12	8.6	21	0.011
GE12C	12		22		10	7	18	0.3	0.3	10	11	28	0.017
GE15C	15		26		12	9	22	0.3	0.3	8	18	45	0.026
GE17C	17		30		14	10	25	0.3	0.3	10	22	56	0.040
GE20C	20		35		16	12	29	0.3	0.3	9	31	78	0.064
GE25C	25		42		20	16	35.5	0.6	0.6	7	51	127	0.115
GE30C	30		47		22	18	40.7	0.6	0.6	6	65	166	0.149
GE35C	35		55		25	20	47	0.6	1	6	84	211	0.228
GE40C	40		62		28	22	53	0.6	1	7	104	262	0.318
GE45C	45		68		32	25	60	0.6	1	7	135	337	0.421
GE50C	50		75		35	28	66	0.6	1	6	166	415	0.562

GEG4C		4		14	7	4	10	0.3	0.3	20	3.6	9.1	0.005
GEG5C		5		16	9	5	13	0.3	0.3	21	5.8	14	0.008
GEG6C		6		16	9	5	13	0.3	0.3	21	5.8	14	0.006
GEG8C		8		19	11	6	16	0.3	0.3	21	8.6	21	0.014
GEG10C		10		22	12	7	18	0.3	0.3	18	11	28	0.021
GEG12C		12		26	15	9	22	0.3	0.3	18	18	45	0.033
GEG15C		15		30	16	10	25	0.3	0.3	16	22	56	0.049
GEG17C		17		35	20	12	29	0.3	0.3	19	31	78	0.083
GEG20C		20		42	25	16	35.5	0.3	0.3	17	51	127	0.153
GEG25C		25		47	28	18	40.7	0.6	0.6	17	65	166	0.203
GEG30C		30		55	32	20	47	0.6	1	17	84	211	0.304
GEG35C		35		62	35	22	53	0.6	1	16	104	262	0.408
GEG40C		40		68	40	25	60	0.6	1	17	135	337	0.542
GEG45C		45		75	43	28	66	0.6	1	15	166	415	0.713

Tag:

Place of Origin:	Shanghai, China
Brand Name:	SYX
Certification:	ISO/TS 16949：2009
Model Number:	GE...C/GEG...C

Minimum Order Quantity:	100 PCS
Packaging Details:	wooden pallet
Delivery Time:	30 working days
Payment Terms:	T/T,L/C
