Name: GE120-PW Spherical Plain Bearing 120Mm Bore Diameter for Automotive Industry
Brand: Shanghai Yongxing Bearing Manufacturing Co., Ltd.
SKU: GE120-PW
Availability: InStock

Detail Information

Bore Diameter:	120 Mm	Outside Diameter:	180 Mm
Width Inner Ring:	85 Mm	Weight:	7.236 Kg
Basic Dynamic Load:	1,240,000 N	Operating Temperature:	-60 °C To 200 °C
Highlight:	120mm bore diameter spherical plain bearing , Automotive Industry radial plain bearing , GE120-PW spherical plain bearing

Product Description

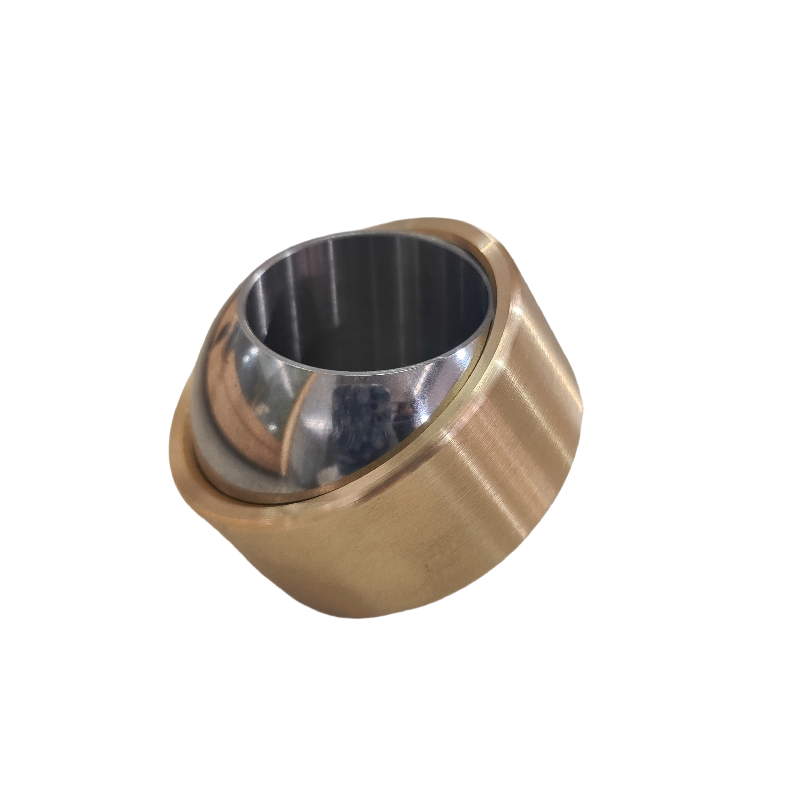

GE120-PW Spherical Plain Bearing

GE12 PW radial spherical plain bearing is widely used in mechanical structures requiring swinging, tilting, or rotating motion due to its compact design, high load-carrying capacity, and ability to accommodate significant angular misalignment.

Main Dimensions

Parameter	Value	Description
d	120 mm	Bore diameter bearing
D	180 mm	Outside diameter bearing
B	85 mm	Width Inner ring
≈m	7.236 kg	Weight

Mounting Dimensions

Parameter	Value	Description
r1smin	1 mm	Edge Spacing
r2smin	1 mm	Edge Spacing
da max	135.5 mm	Connection measure Inner ring
Da min	150 mm	Housing Connection Diameter

Dimensions

Parameter	Value	Description
C	70 mm	Width Outer ring
dK	160 mm	Ball diameter
α	6 °	Tilt angle
dOT	0 mm	Bore diameter bearing, upper tolerance
dUT	-0.02 mm	Bore diameter bearing, lower tolerance
DOT	0 mm	Outside diameter, upper tolerance
DUT	-0.025 mm	Outside diameter, lower tolerance
BOT	0 mm	Width inner ring, upper tolerance
BUT	-0.2 mm	Width inner ring, lower tolerance
Gr	0.085 - 0.165	Radial Clearance
Grmax	0.165 mm	Radial clearance, maximum
Grmin	0.085 mm	Radial clearance, minimum

Performance Data

Parameter	Value	Description
Cr	1,240,000 N	Basic dynamic load rating, radial
C0r	4,760,000 N	Basic static load rating, radial

Temperature Range

Parameter	Value	Description
Tmin	-60 °C	Operating temperature min.
Tmax	200 °C	Operating temperature max.

Typical Applications

Construction machinery: such as connecting rods and cylinder trunnions in excavators, loaders, and cranes
Automotive industry: suspension systems, steering mechanisms, and shock absorber connection points
Agricultural machinery: moving parts in seeders and harvesters
Industrial equipment: textile machinery, printing machinery, and robotic joints

Tag:

Place of Origin:	Shanghai, China
Brand Name:	SYX
Certification:	ISO/TS 16949: 2009
Model Number:	GE120-PW

Minimum Order Quantity:	100 pcs
Packaging Details:	wooden pallet
Delivery Time:	30 working days
Payment Terms:	T/T,L/C,Western Union
