Detail Information

Weight:	Varies By Size And Material	Bearing Type:	Plain Bearing
Lubrication:	Self-lubricated	Thread Size:	M6 To M35
Application:	Automotive, Aerospace, Industrial Machinery	Thread Type:	Metric
Load Capacity:	Varies By Size, Typically Up To Several Tons	Surfacetreatment:	Zinc Plated
Highlight:	Self Lubricated Spherical Rod End , M35 Thread Spherical Rod End , PTFE Composite Bushing Rod End

Product Description

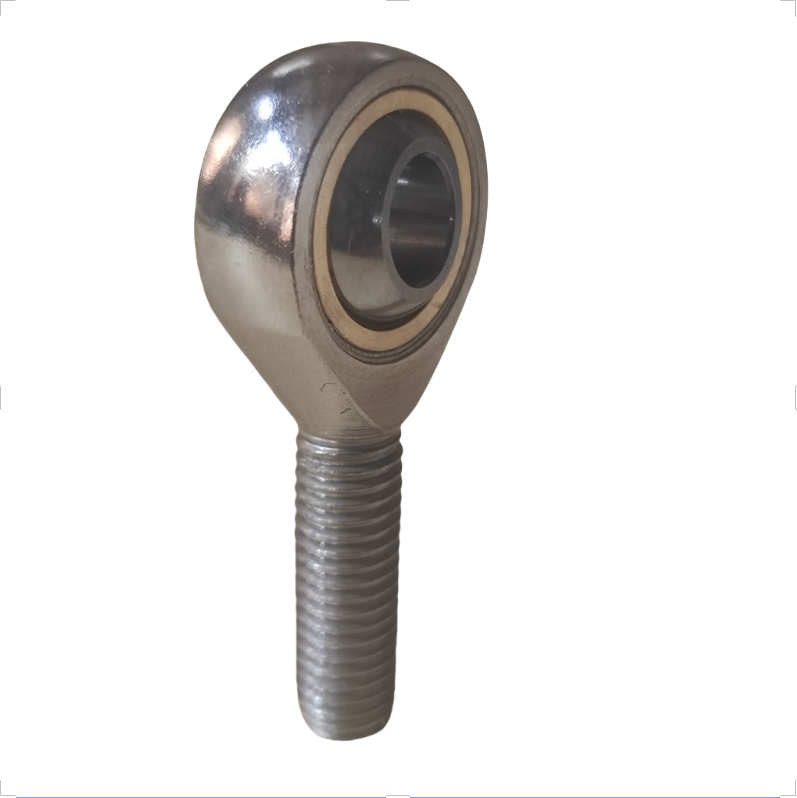

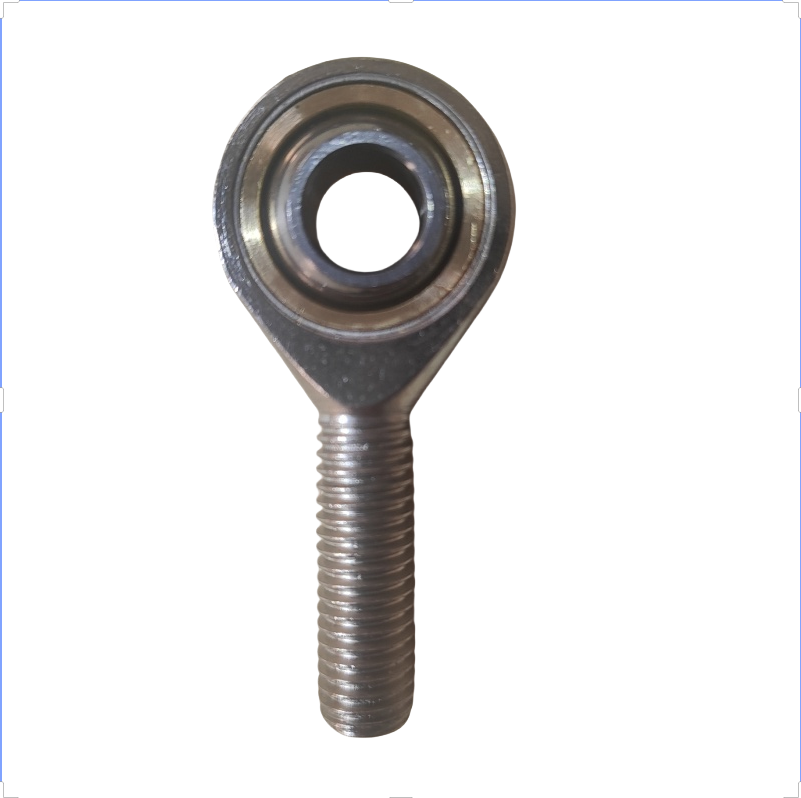

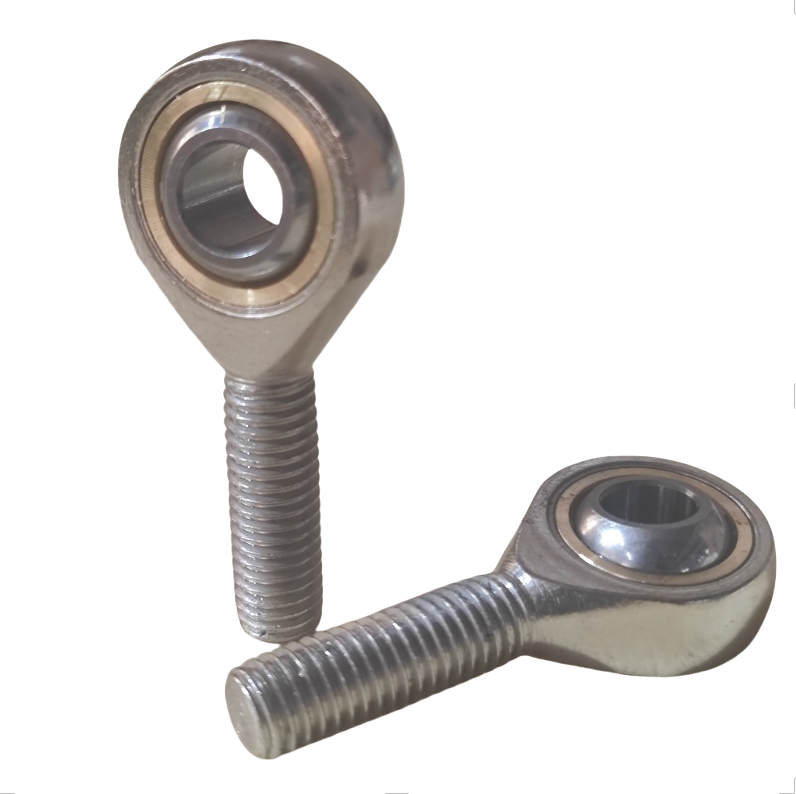

Self-lubricated M6 to M35 Plain Bearing Spherical Rod End Bushing SA...TK

SA...TK Spherical Rod End Plain Bearing Bush PTFE Plain Bearing. A rod end bearing, also known as a spherical rod end joint or universal joint, is a specialized bearing designed for use at the end of rods or in hinged parts, typically at the ends of mechanical linkages. Rod end bearings can withstand significant radial and axial loads and allow multi-directional movement, making them suitable for applications that require oscillating, tilting, or rotational motion.

Excellent Price Tie Rod End Ball Joint Carbon Steel GCr15 Body Lathed or Forged Rod End Bearings For Construction Works. These products are connectors that support loads and allow motion control.

Product Features

Maintenance-free operation for reduced downtime and extended service life
Carbon steel body with zinc plating for corrosion resistance
Bronze bushing with anti-friction PTFE composite material
Hardened carbon chromium steel ball with hard chrome plating
Male threaded design for easy installation

Technical Specifications

Available Sizes: 5mm to 35mm diameter range

Bearing Code	d	B	dk	C1	d2	d3	h	L1	L2	a°	Dynamic Load Rating kN	Static Load Rating kN	Weight ≈kg
SA5T/K	5	8	11.112	7.5	18	M5x0.8	33	19	42	4	3.6	3.9	0.013
SA5T/K-1	5	8	11.112	7.5	18	M4x0.8	33	19	42	4	3.6	3.9	0.013
SA6T/K	6	9	12.7	7.5	20	M6x1	36	21	46	9	4.7	5.2	0.020
SA8T/K	8	12	15.88	9.5	24	M8x1.25	42	25	54	12	7.6	8.2	0.038
SA10T/K	10	14	19.05	11.5	28	M10x1.5	48	28	63	12	12	15	0.071
SA10T/K-1	10	14	19.05	11.5	28	M10*1.25	48	28	63	12	12	15	0.071
SA12T/K	12	16	22.23	12.5	32	M12x1.75	54	32	71	12	14	19	0.120
SA12T/K-1	12	16	22.23	12.5	32	M12*1.25	54	32	71	12	14	19	0.120
SA14T/K	14	19	25.4	14.5	36	M14x1.75	60	36	79	14	19	24	0.170
SA14T/K-1	14	19	25.4	14.5	36	M14*1.5	60	36	79	14	19	24	0.170
SA16T/K	16	21	28.58	15.5	42	M16x1.75	66	37	87	14	23	29	0.230
SA16T/K-1	16	21	28.58	15.5	42	M16*1.5	66	37	87	14	23	29	0.230
SA18T/K	18	23	31.75	17.5	46	M18*1.5	72	41	95	13	29	34	0.310
SA20T/K	20	25	34.93	18.5	50	M20*1.5	78	45	103	14	34	40	0.400
SA22T/K	22	28	38.1	21.0	54	M22*1.5	84	48	112	14	42	50	0.490
SA25T/K	25	31	42.86	23.0	60	M24*2	94	55	124	14	52	57	0.650
SA30T/K	30	37	50.8	27.0	70	M30*2	110	62	136	15	52	77	1.100
SA30T/K-1	30	37	50.8	27.0	70	M27*2	110	62	136	15	73	77	1.100
SA35T/K	35	43	57.1	28.0	80	M36*2	125	77	165	17	110	116	1.400

Tag:

Place of Origin:	China
Brand Name:	SYX
Certification:	ISO/TS 16949:2009
Model Number:	SA..TK

Minimum Order Quantity:	100pcs
Price:	US$0.5 - US$20.00
Packaging Details:	white box, plasic bag, color box, ect.
Delivery Time:	5-8 working days
Payment Terms:	T/T
Supply Ability:	100000pcs per week
