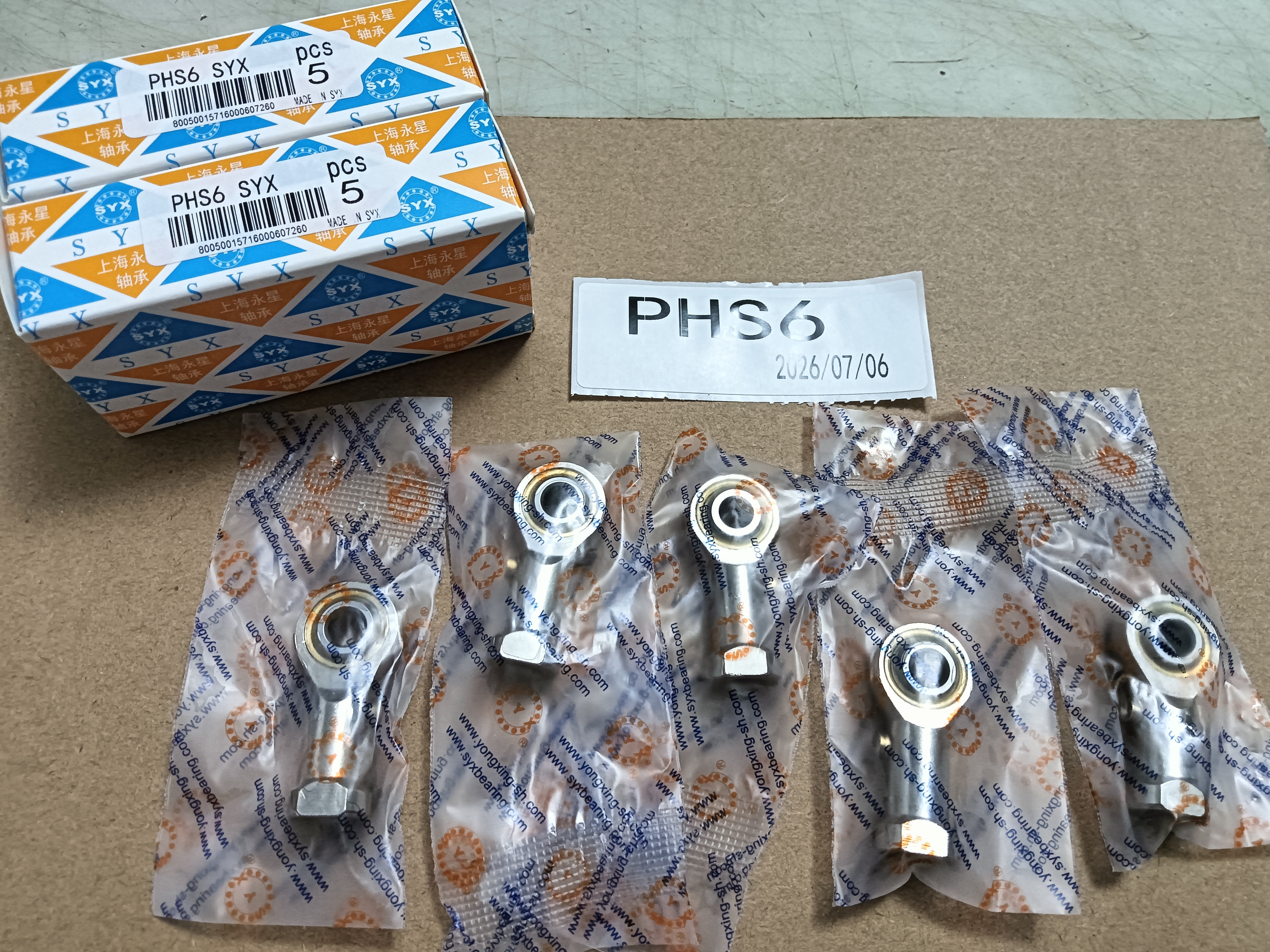

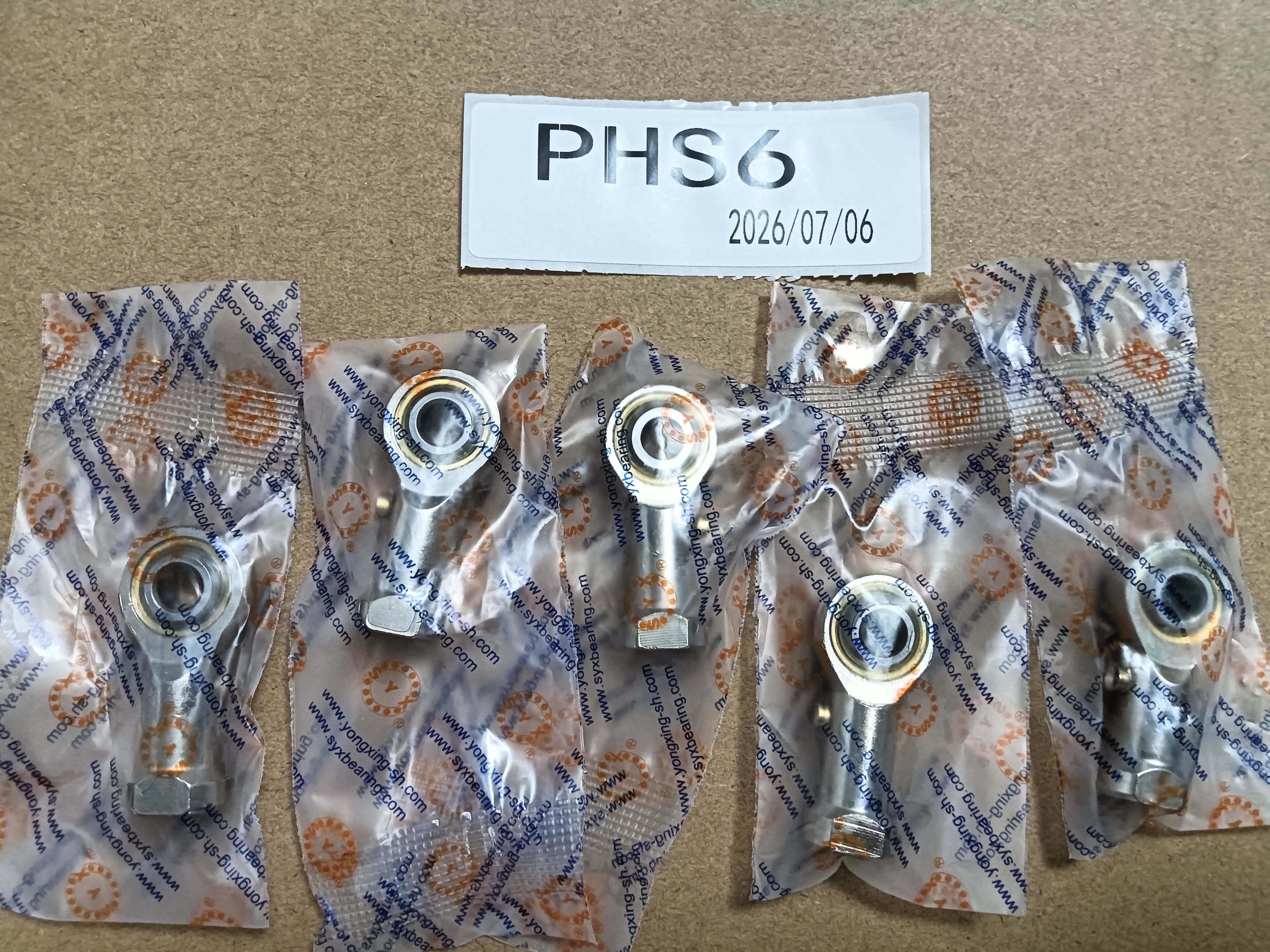

PHS6 series Spherical Rod End Bearing Corrosion Resistant Bronze Sliding Surface D 5mm-35mm

Product Review

PHS Rod End Bearing - Corrosion Resistant Spherical Rod Equivalent to GIKR ...PB INA Sliding surface: Steel/Bronze d:5mm-35mm

PHS bearings are a series of rod end bearings​ (also known as spherical plain bearings ) designed for high-precision articulation and load transfer in mechanical linkages. They are widely recognized for their robust construction and ability to accommodate misalignment.

Overall Performance:

• High Precision:​ Known for tight tolerances (e.g., axial clearance within ±0.02mm), ensuring smooth, low-friction movement without play or backlash .

• Durability:​ Constructed from hardened bearing steel (e.g., GCr15 or 52100) with advanced heat treatment, providing excellent wear resistance and a long service life, even under high-frequency oscillating motion .

• Stability:​ Users report exceptional stability in applications like automation equipment and robotics, with no loosening or abnormal noise after extended use .

Key Features

1. Self-Aligning Design:​ The spherical inner ring allows for angular misalignment compensation (typically up to ±15°), enabling smooth rotation and oscillation even when components are not perfectly aligned .

2. High Load Capacity:​ Engineered to withstand extreme radial, axial, and combined loads, making them suitable for heavy machinery and hydraulic systems .

3. Self-Lubricating/PTFE Liner:​ Many models feature a PTFE (Teflon) or composite liner, allowing for maintenance-free operation without the need for external lubrication. This is ideal for applications where re-greasing is difficult or where contamination must be avoided .

4. Corrosion & Wear Resistance:​ Available in materials like chrome steel, stainless steel, or with special coatings (e.g., zinc-nickel) to resist rust and wear in harsh environments .

5. Easy Installation:​ Features a female (internal) thread design (M5, M6, M8, etc.), which simplifies mounting onto rods or shafts. Some variants also offer left-hand threads for specialized linkages .

Application

PHS rod end bearings are versatile components used across various industries for connecting rods, linkages, and control arms. Common applications include:

• Automotive & Transportation:​ Steering linkages, suspension systems, and throttle controls .

• Industrial Automation:​ Robotic arms, actuator joints, packaging machinery, and conveyor systems .

• Hydraulic & Pneumatic Systems:​ Connecting rods for cylinders and actuators .

• Heavy Machinery:​ Construction equipment (excavators), agricultural machinery, and material handling systems .

• Aerospace & Marine:​ Control linkages and systems requiring high reliability and corrosion resistance .

FAQ (Frequently Asked Questions)

Q1: Do PHS bearings require regular lubrication?PHS6 series Spherical Rod End Bearing, Corrosion Resistant Rod End Bearing, Bronze Sliding Surface Spherical Rod End bearing
Yes, PHS bearings need periodic lubrication. Regular greasing reduces friction and wear, extends service life, and prevents corrosion. The lubrication cycle depends on load, operating frequency and environment; heavy-duty or dusty working conditions demand more frequent refilling.

Q2: What is the difference between PHS and other rod end series?
PHS rod ends feature an female thread structure with fine thread options for precise installation adjustment. Compared to common POS or SI series, PHS models have tighter dimensional tolerances, stronger load capacity under alternating stress, and standardized grease fitting positions for easy maintenance. Most competing rod ends adopt internal female threads or thicker housing walls with lower adjustment flexibility.

Q3: Can PHS bearings handle high temperatures?
Standard PHS bearings work steadily within -20°C to 80°C. For temperatures above 100°C, customized high-temperature resistant liners and special high-temperature grease are necessary. Long-term operation over 120°C will degrade ordinary PTFE liners and conventional lubricants, leading to accelerated wear.

Q4: How do I select the right size?
 1. Confirm the maximum dynamic and static load of your equipment;

2. Measure the matching shaft diameter and required thread length;

3. Check swing angle, installation space and mounting thread direction;

4. Match corresponding PHS model specifications based on above parameters, and consult technical data sheets for safety load margin verification.

Q5: Are they suitable for high-speed rotation?
 PHS rod ends are designed for swing, oscillating and low-speed reciprocating motion rather than continuous high-speed rotation. Constant high-speed spinning will cause severe heat buildup, rapid liner abrasion and early failure. For high-speed rotary scenarios, radial ball bearings or plain rotary bushings are recommended instead
