Ideal for linkage assemblies, control systems, steering mechanisms, and other applications requiring precise angular movement with corrosion resistance.
-
Q: How do I identify a stainless steel version?
-
Q: What causes noise or stiffness in the bearing?
-
A: Main causes include:
-
Contamination: Dirt or debris in the sliding contact area.
-
Misalignment / Improper Installation: Excessive bending or sideload causing binding.
-
Wear / Damage: Excessive wear of the PTFE liner or damage to the chrome ball surface. The bearing may need replacement.
-
Q: Are these bearings adjustable or have a preload setting?
SA..TK Maintenance-Free Rod End Bearings: Selection Guide & Performance Comparison
Compare SA..TK maintenance-free rod end bearings vs re-lubricatable rod end models. Learn load ratings, swing angles, service intervals and selection tips for hydraulic attachments, farm implements and general industrial machinery.
SA..TK maintenance-free rod end bearings are widely used for articulated connections in mechanical linkages, offering tilt and misalignment compensation under combined radial and axial loads. As a popular male-thread rod end series, SA..TK adopts a high-performance self-lubricating liner, factory pre-lubricated and requires no periodic re-greasing during operation. It serves as the preferred choice for agricultural accessories, hydraulic attachments, general industrial equipment and light construction machinery.
A frequent question from design engineers: When should I pick SA..TK maintenance-free rod end bearings versus re-lubricatable rod end bearings such as PHS?
The choice is not simply determined by component price. It depends on load conditions, operating cycles, ambient environment and your equipment maintenance schedule. This guide explains the core features, performance parameters, application scenarios and selection tips of SA..TK rod end bearings, helping you decide whether this bearing type matches your mechanical project.
What Is an SA..TK Maintenance-Free Rod End Bearing?

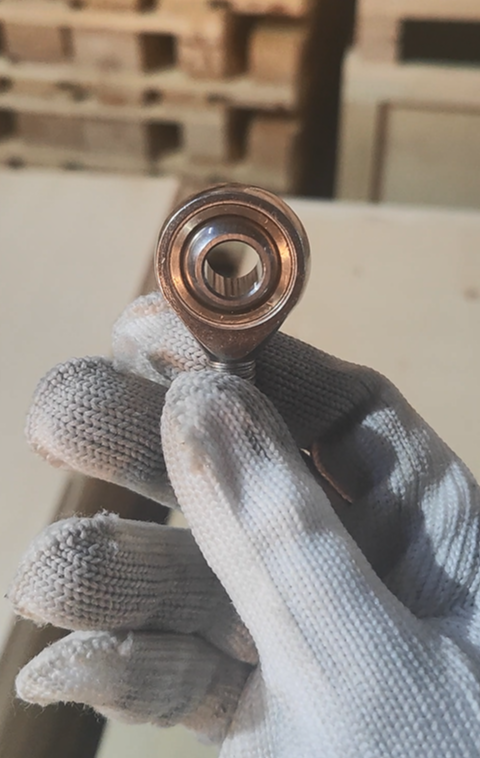

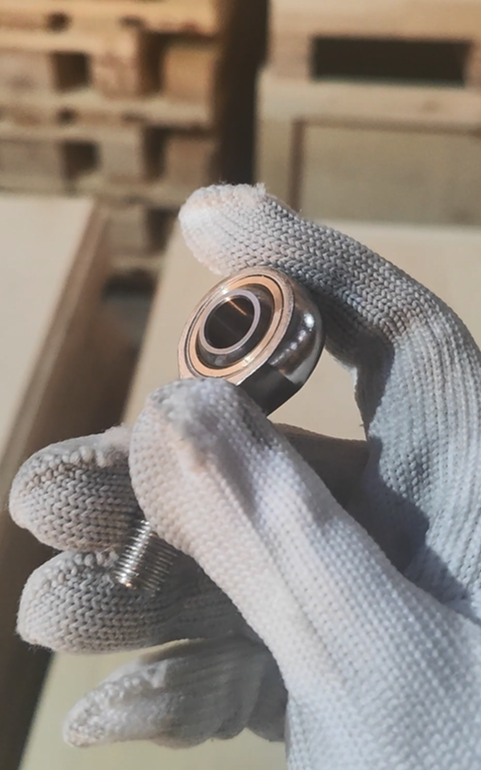

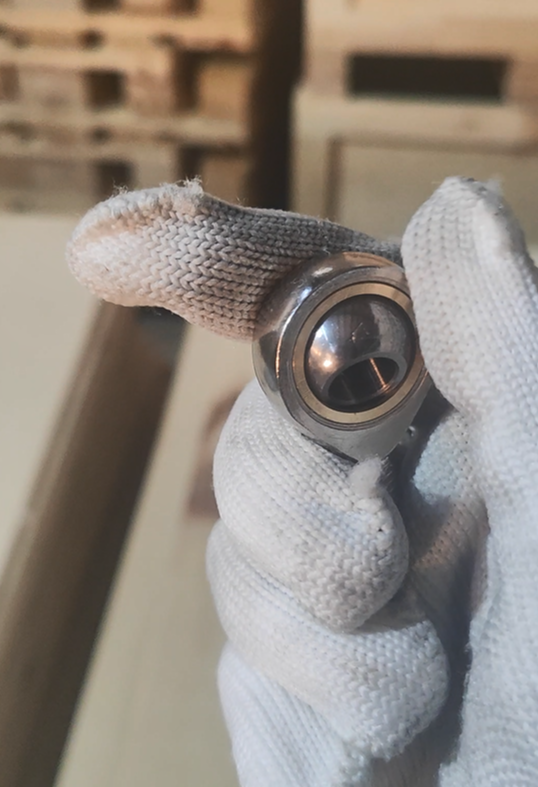

An SA..TK rod end bearing consists of a one-piece housing with male external thread and integrated spherical plain insert. The spherical inner ring can swing and rotate freely inside the outer ring. The sliding contact surface uses a reinforced self-lubricating composite liner pre-impregnated with solid lubricant at the factory. This self-lubricating design reduces friction and wear during oscillating motion and removes the need for regular grease replenishment.
Key Features of SA..TK Maintenance-Free Rod End Bearings
Factory pre-impregnated reinforced self-lubricating liner: No on-site re-greasing required
Alloy carbon steel housing + hardened spherical inner ring: Excellent mechanical strength and impact resistance
Accepts combined radial and axial loads for moderate shock applications
Compensates angular misalignment during assembly and continuous operation
Male external thread design; left-hand thread variant available for flexible assembly
When to Use an SA..TK Maintenance-Free Rod End Bearing
SA..TK rod end bearings are ideal for:
Hydraulic attachment linkages
Farm implement pivot joints
General industrial machine articulated linkages
Light construction machinery control arms
Equipment with medium cyclic loads and limited access for maintenance
SA..TK models combine medium load capacity with maintenance-free operation. They are suitable for locations where grease servicing is inconvenient, yet need to withstand occasional impact. Not recommended for continuous heavy shock or ultra-heavy cyclic swing.
Load and Swing Performance: What Really Matters
The biggest advantage of SA..TK maintenance-free rod end bearings is its balance of medium load capacity and maintenance-free performance. Instead of only checking static load values, engineers should evaluate working swing angle and dynamic load capacity.
SA..TK maintenance-free rod end bearings
Maximum permissible swing angle: 13° ~ 17°
Static load capacity: Depending on size, ranging from 22 kN to 380 kN
Dynamic load capacity: Depending on size, ranging from 11 kN to 160 kN
This makes them well suited for medium cyclic loads with occasional impact. The reinforced composite liner retains stable low friction without manual greasing. In field tests, SA..TK rod ends maintain consistent performance under intermittent shock; continuous heavy impact will accelerate liner wear and shorten service life.
Lubrication & Maintenance: SA..TK Maintenance-Free Rod End Bearings
SA..TK rod ends are engineered as maintenance-free type.
Reinforced self-lubricating composite liner embedded with solid lubricant
No periodic grease injection required under normal working conditions
Visual inspection recommended every 300–500 operating hours to check liner wear
Protect the sliding surface from abrasive dust, debris and long-term immersion
Note: Maintenance-free does not mean inspection-free. Heavy contamination will damage the composite liner and trigger premature bearing failure.
Material & Environmental Suitability
Standard SA..TK rod end housing is carbon steel with zinc plating anti-corrosion treatment. The spherical insert adopts hardened bearing steel, sliding layer is reinforced self-lubricating composite liner.
Working temperature range: -35℃ ~ +125℃
Not recommended for continuous exposure to strong acid, alkali or heavy salt spray without extra surface protection.
Weight & Installation Notes

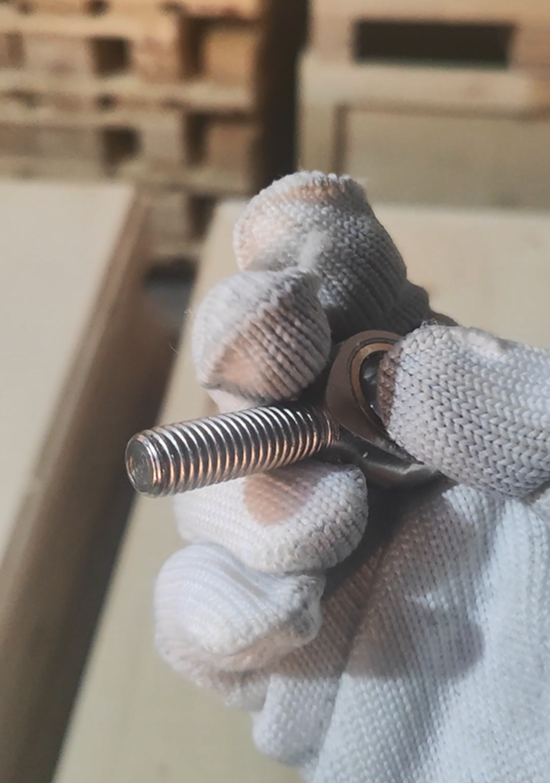

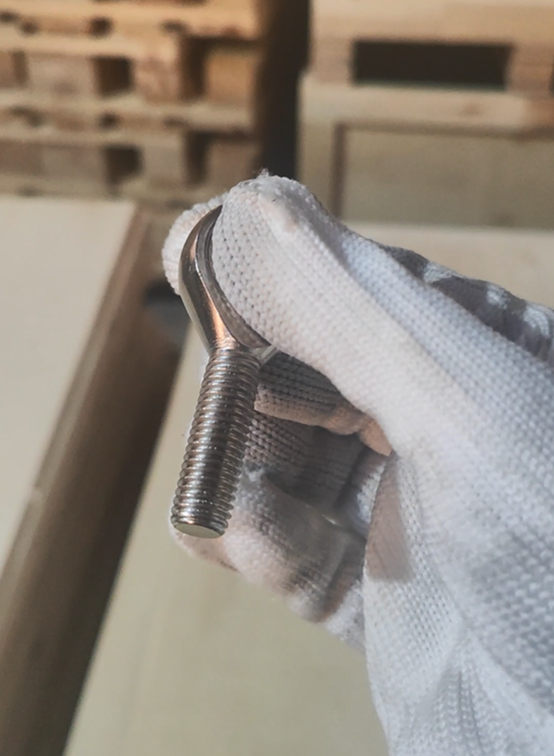

SA..TK rod ends feature male external threaded shank for direct connection to mating components.
Male external thread design, left-hand thread versions available
Ensure proper alignment during mounting; avoid forced offset assembly
Do not exceed the rated swing angle to prevent edge stress on the spherical surface
Never strike the rod end body directly with a hammer during installation
Noise & Vibration Performance
With intact composite liner, SA..TK rod ends operate with low friction noise. They can absorb moderate vibration at articulated joints. Once the liner wears down, friction and operational noise will rise rapidly.
Cost Comparison: SA..TK Maintenance-Free vs Re-lubricatable PHS Rod Ends
SA..TK maintenance-free rod ends normally carry a higher upfront component cost than re-lubricatable PHS rod ends.
However, they cut ongoing lubrication labor and grease expenses. For medium-load machinery with hard-to-reach joints, SA..TK delivers better total cost of ownership as regular greasing is unnecessary. Re-lubricatable PHS rod ends demand periodic maintenance but support higher load ratings and longer service life under continuous heavy swing cycles.
Which One Should You Choose?
Choose SA..TK maintenance-free rod end bearings if:
Your equipment bears medium combined loads with occasional impact
The joint position is restrictive and regular lubrication is difficult
Maintenance-free operation is a core requirement
You need reliable performance for farm and hydraulic attachment applications
Choose re-lubricatable rod end bearings (such as PHS) if:
Sustained heavy combined loads and frequent heavy impact exist
Lubrication access is available on-site
Long service life under continuous heavy swing is required
You want to reduce initial component purchasing cost
Why SA..TK Maintenance-Free Rod End Bearings Stay Popular in 2026
Many mechanical designers select SA..TK self-lubricating rod ends for agricultural and general industrial machinery. The reinforced composite self-lubricating liner delivers dependable performance without grease maintenance. With proper protection against abrasive contaminants, SA..TK rod ends provide stable articulated motion for hydraulic attachments, farm implements and light construction equipment.
FAQ
Q: What is the difference between SA..TK and PHS rod end bearings?
A: SA..TK rod ends use reinforced self-lubricating composite liners for maintenance-free service, suitable for medium loads with occasional impact. PHS rod ends are re-lubricatable with grease fittings and designed for medium-to-heavy combined loads and continuous impact.
Q: What are the load ratings and swing angle of SA..TK rod end bearings?
A: Depending on size, static load ranges 22–380 kN, dynamic load 11–160 kN, and the maximum permissible swing angle is 13°–17°. Actual values depend on the specific model.
Q: Does SA..TK rod end bearing require regular greasing?
A: No. The SA..TK series is maintenance-free with factory pre-impregnated solid lubricant. Visual inspection for liner wear every 300–500 working hours is recommended. Keep abrasive particles away from sliding surfaces.
Q: What materials and temperature range do SA..TK rod ends support?
A: Zinc-plated carbon steel housing, hardened bearing steel inner ring, reinforced composite self-lubricating liner; working temperature range -35℃ ~ +125℃. Extra surface protection is required for strong acid, alkali or heavy salt spray environments.
Conclusion
Selecting SA..TK maintenance-free rod end bearings depends on your load magnitude, swing angle, working environment and equipment maintenance plan. SA..TK series excels in medium-duty articulated joints with occasional impact where routine lubrication cannot be performed.
By understanding these performance characteristics, you can select the correct rod end bearing for your mechanical linkage design.
