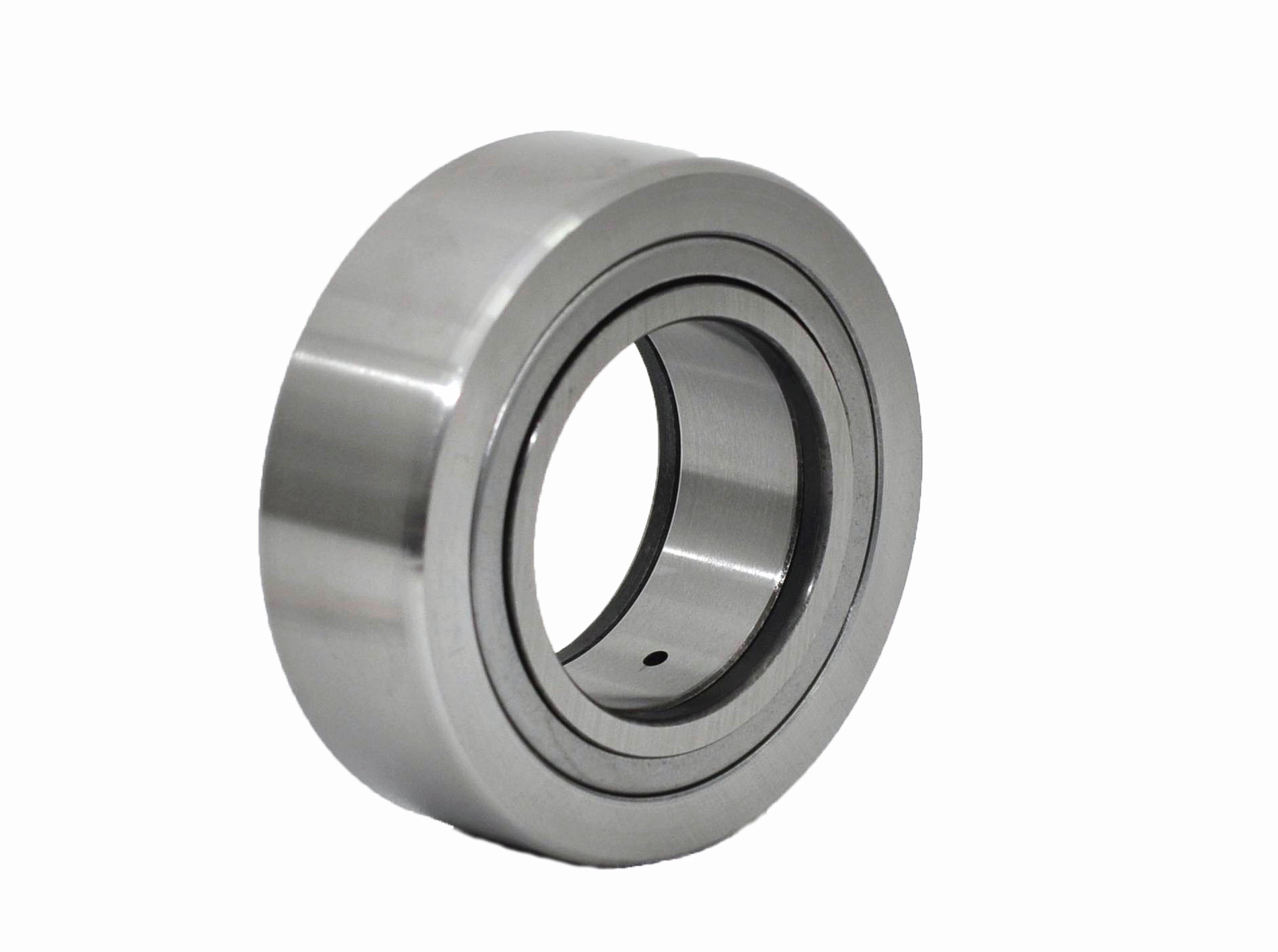

NATR NATV NATR PP NATV PP Yoke Type Cam Follower Sealed with Needle Roller Bearing

Yoke Type Cam Follower: Product Review

Yoke Type Cam Followers are a specialized type of stud-type roller bearing designed for guided motion along tracks, guides, or cams. The "Yoke Type" refers to the forked, yoke-like design of the mounting stud. Models like NATR...PP​ and NATV...PP​ are premium variants from leading manufacturers (e.g., IKO, INA, THK), known for superior performance in demanding automation and machinery applications.

Overall Performance:

• High Rigidity & Precision:​ The yoke-type stud provides exceptional bending rigidity and stability, minimizing deflection under heavy loads for precise, repeatable tracking along cam profiles or guide rails .

• Low Friction & High Speed:​ The incorporation of a full-complement needle roller and a crowned outer ring ensures smooth, low-friction rolling, allowing for high rotational speeds and reduced wear .

• Durability:​ The sealed, pre-lubricated "PP" suffix indicates a high-performance, maintenance-free design. The outer ring is typically through-hardened, providing excellent wear and impact resistance, even in harsh conditions .

Key Features

1. Yoke-Type Stud Design:​ The forked stud provides two mounting points, significantly increasing resistance to moment loads and tilting compared to standard stud types, ensuring stable operation.

2. Sealed & Pre-lubricated ("PP" Suffix):​ Fitted with high-performance contact seals (often denoted by "PP" for "Pre-lubricated & Protected") to keep contaminants out and grease in, enabling maintenance-free, long-life operation .

3. Crowned Outer Ring:​ The outer ring has a slightly crowned (barrel-shaped) profile, which helps prevent edge loading, distributes stress more evenly, and accommodates minor misalignments between the follower and the track .

4. High-Capacity Needle Rollers:​ Utilizes a full complement of needle rollers without a cage, maximizing the number of rolling elements for extremely high radial load capacity in a compact cross-section .

5. Material & Hardness:​ The outer ring is made from high-carbon chrome bearing steel (e.g., SUJ2) and through-hardened to 58-64 HRC, offering superior surface durability for direct rolling on hardened steel cams .

6. Suffix Breakdown:

   • NATR...PP:​ Typically denotes a standard yoke type cam follower with a hexagon hole​ in the stud for easy wrench tightening.

   • NATV...PP:​ Often indicates a yoke type cam follower with a slotted (screwdriver) hole​ in the stud, suitable for applications with space constraints around the stud head.

Application

Yoke Type Cam Followers are essential in high-precision, high-load linear and curvilinear motion systems. Key applications include:

• Automation & Robotics:​ Linear guide wheels for transfer systems, pick-and-place units, and articulated arms.

• Packaging Machinery:​ Cam-driven indexing and feeding mechanisms.

• Machine Tools:​ Guide rollers for tool changers, pallet changers, and sliding doors.

• Material Handling:​ Track wheels for conveyor systems, automated storage/retrieval systems (AS/RS).

• Textile & Printing Machinery:​ Precision guidance systems for webs and rollers.

• Automated Assembly Lines:​ Cam-actuated lifting, pressing, and sorting stations.

FAQ

Q1: What is the main advantage of the yoke type (NATR/NATV) over a standard stud type (CF type)?

A:​ The yoke type's forked stud provides far greater resistance to moment loads and bending, making it the preferred choice for applications with high overturning forces or where precise alignment is critical. The standard stud type is more economical for simpler, lighter-duty applications .

Q2: What does the "PP" suffix mean, and is lubrication required?

A:​ "PP" signifies that the unit comes sealed and pre-lubricated with high-quality grease. It is designed for maintenance-free​ operation under normal conditions. Re-lubrication is not required or possible for standard "PP" sealed models .

Q3: How do I choose between NATR (hex hole) and NATV (slotted hole)?

A:​ The choice is primarily based on installation and space constraints.

• NATR (Hex Hole):​ Allows for higher torque application with a hex key, ensuring a tighter, more secure fit. Use when there is ample space around the stud head.

• NATV (Slotted Hole):​ Requires a screwdriver, useful in confined spaces where a hex key cannot be accessed. Maximum applicable torque is lower than the hex hole type .

Q4: What track/cam hardness is recommended?

A:​ For optimal life, the rolling surface (track or cam) should be hardened to a minimum of 58 HRC. Using a soft track with a hardened cam follower will cause rapid wear and indentation on the track .

Q5: Can these cam followers handle axial (thrust) loads?

A:​ No.​ Standard yoke type cam followers are designed to carry radial loads only. Applying significant axial loads can damage the bearing. For combined loads, a different bearing type (e.g., a ball bearing unit with a shoulder) is required .
