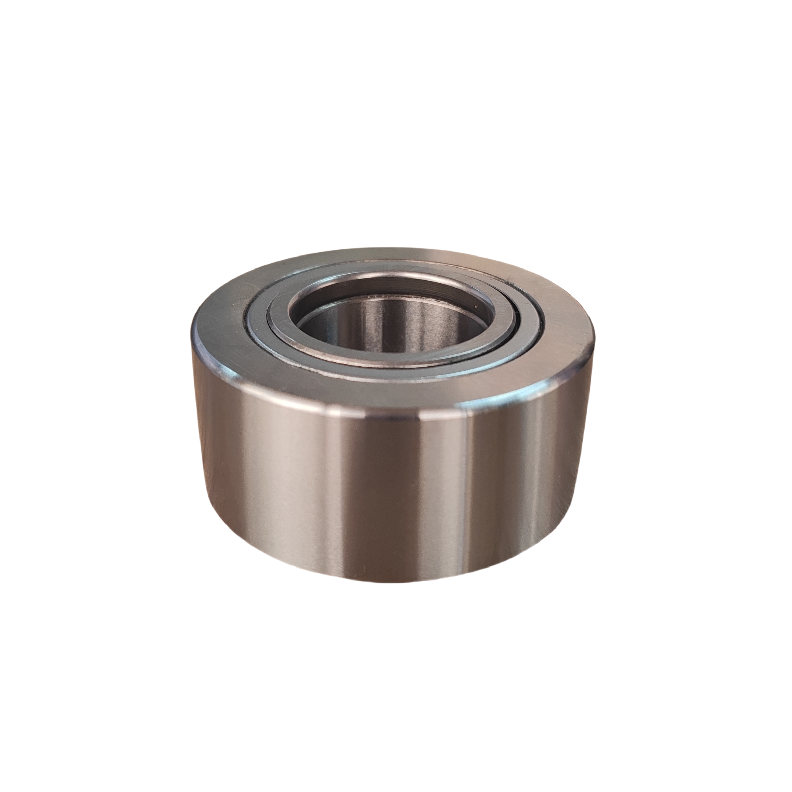

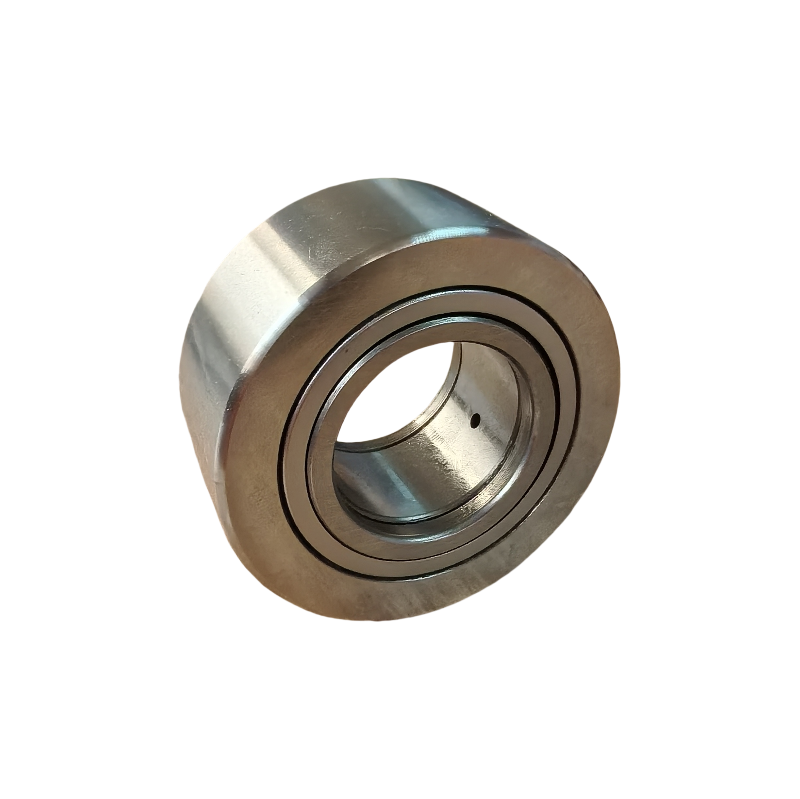

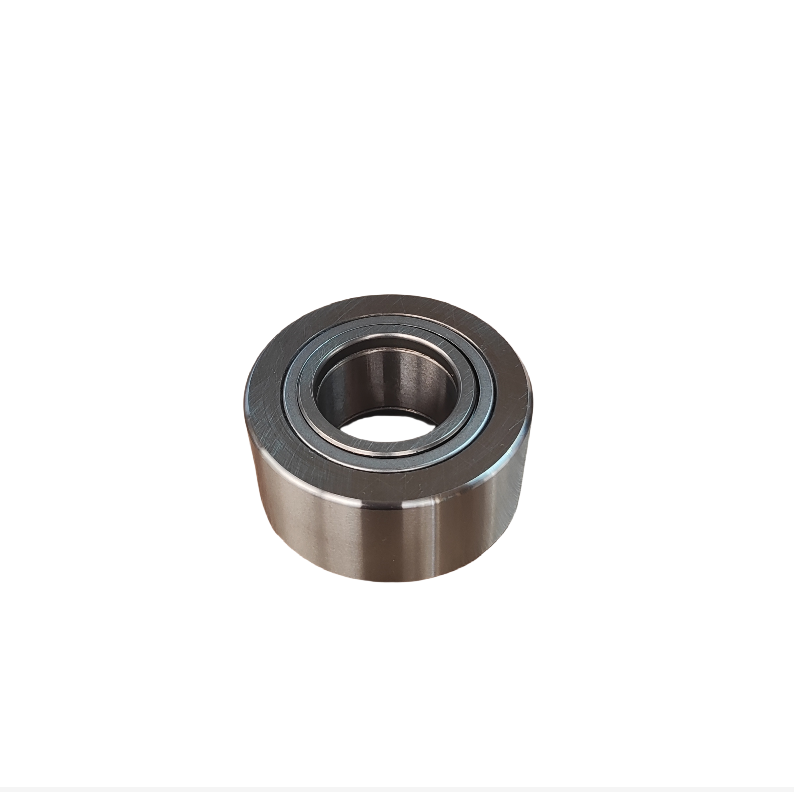

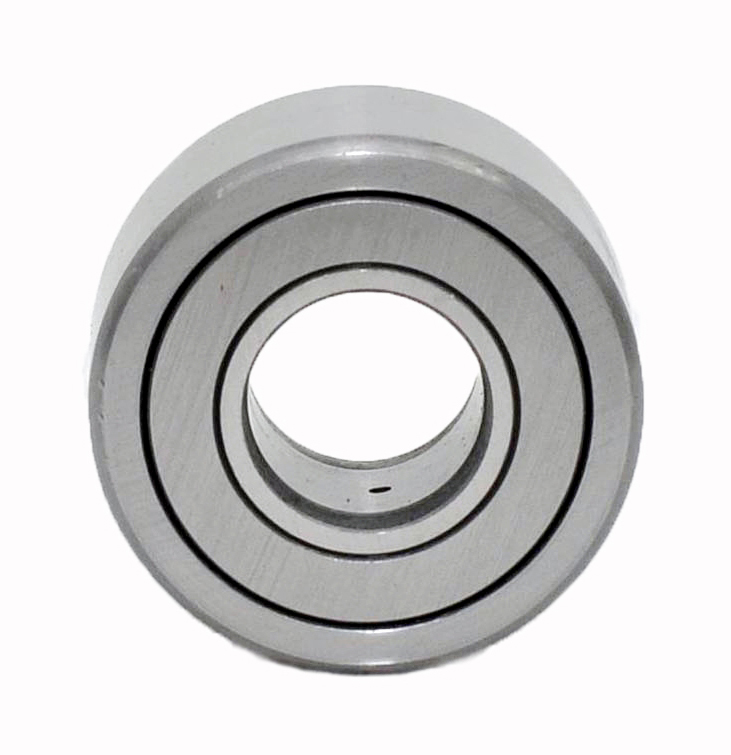

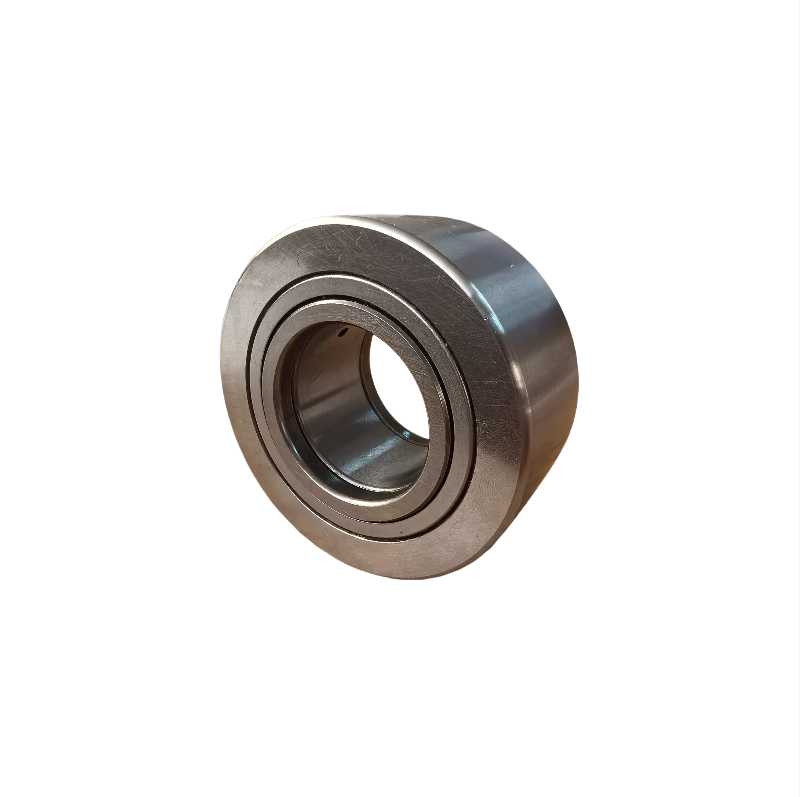

Metric Cam Followers Track Roller NATR..PPX Natural Color in Cylindrical Outer Ring
Cam Followers, also known as Track Rollers, are specialized bearing units consisting of machined thick-walled outer rings, needle or cylindrical rollers, cage-guided or fully loaded rolling element groups, inner rings or bolts, and seals. These bearings feature a cylindrical or arc-shaped outer ring design with thick walls, allowing rollers to move directly on the raceway for exceptional heavy-load capacity.
Engineered for compactness, high rotation accuracy, and easy installation, cam followers are available in multiple configurations to suit diverse application requirements. They excel in environments requiring both high radial loads and impact resistance.
Specifications
| Bearing Code |
Shaft Diameter (mm) |
Unit Weight kg |
Dimensions (mm) |
Load Rating kN |
Limit Speed (rpm) |
| d |
D |
B |
C |
d1 |
Dynamic |
Static |
| NATR 5 |
NATR 5PP |
5 |
0.014 |
5 |
16 |
12 |
11 |
12 |
3.1 |
3 |
22000 |
| NATV 5 |
NATV 5PP |
0.015 |
5 |
16 |
12 |
11 |
12 |
4.5 |
6.3 |
8500 |
| NATR 6 |
NATR 6PP |
6 |
0.020 |
6 |
19 |
12 |
11 |
14 |
3.6 |
3.7 |
20000 |
| NATV 6 |
NATV 6PP |
0.021 |
6 |
19 |
12 |
11 |
14 |
5.7 |
8.7 |
7000 |
| NATR 8 |
NATR 8PP |
8 |
0.041 |
8 |
24 |
15 |
14 |
19 |
4.5 |
5.4 |
13000 |
| NATV 8 |
NATV 8PP |
0.042 |
8 |
24 |
15 |
14 |
19 |
8.6 |
12 |
5500 |
| NATR 10 |
NATR 10PP |
10 |
0.064 |
10 |
30 |
15 |
14 |
23 |
6.1 |
7.8 |
11000 |
| NATV 10 |
NATV 10PP |
0.065 |
10 |
30 |
15 |
14 |
23 |
10.9 |
17 |
4500 |
| NATR 12 |
NATR 12PP |
12 |
0.071 |
12 |
32 |
15 |
14 |
25 |
6.6 |
9.8 |
9000 |
| NATV 12 |
NATV 12PP |
0.072 |
12 |
32 |
15 |
14 |
25 |
11.8 |
19 |
3900 |
| NATR 15 |
NATR 15PP |
15 |
0.103 |
15 |
35 |
19 |
18 |
27 |
10.5 |
17.5 |
7000 |
| NATV 15 |
NATV 15PP |
0.105 |
15 |
35 |
19 |
18 |
27 |
16 |
32.5 |
3400 |
| NATR 17 |
NATR 17PP |
17 |
0.144 |
17 |
40 |
21 |
20 |
32 |
11.8 |
19.4 |
6000 |
| NATV 17 |
NATV 17PP |
0.152 |
17 |
40 |
21 |
20 |
32 |
19.6 |
37 |
2900 |
| NATR 20 |
NATR 20PP |
20 |
0.264 |
20 |
47 |
25 |
24 |
37 |
17.5 |
29.8 |
4900 |
| NATV 20 |
NATV 20PP |
0.254 |
20 |
47 |
25 |
24 |
37 |
25.8 |
57 |
2600 |
| NATR 25 |
NATR 25PP |
25 |
0.275 |
25 |
52 |
25 |
24 |
42 |
19.5 |
36.5 |
3600 |
| NATV 25 |
NATV 25PP |
0.285 |
25 |
52 |
25 |
24 |
42 |
29.0 |
69.6 |
2100 |
| NATR 30 |
NATR 30PP |
30 |
0.470 |
30 |
62 |
29 |
28 |
51 |
31.0 |
57.5 |
2600 |
| NATV 30 |
NATV 30PP |
0.481 |
30 |
62 |
29 |
28 |
51 |
45.5 |
104 |
1700 |
| NATR 35 |
NATR 35PP |
35 |
0.635 |
35 |
72 |
29 |
28 |
58 |
34.5 |
67.5 |
2000 |
| NATV 35 |
NATV 35PP |
0.647 |
35 |
72 |
29 |
28 |
58 |
50.8 |
109.5 |
1400 |
| NATR 40 |
NATR 40PP |
40 |
0.805 |
40 |
80 |
32 |
30 |
66 |
47.0 |
91.5 |
1700 |
| NATV 40 |
NATV 40PP |
0.890 |
40 |
80 |
32 |
30 |
66 |
64.0 |
139 |
1300 |
| NATR 45 |
NATR 45PP |
45 |
0.910 |
45 |
85 |
32 |
30 |
72 |
49.1 |
98 |
1500 |
| NATV 45 |
NATV 45PP |
0.935 |
45 |
85 |
32 |
30 |
72 |
66.0 |
153 |
1100 |
| NATR 50 |
NATR 50PP |
50 |
0.860 |
50 |
90 |
32 |
30 |
76 |
50.5 |
106 |
1300 |
| NATV 50 |
NATV 50PP |
0.990 |
50 |
90 |
32 |
30 |
76 |
69.5 |
187 |
1000 |
NATR, NATV series bearings are available with cylinderical outer ring.
Adding the suffix "X", e.g. NATR 35 X, NATV35 PPX
Product Series Classification
Cam Followers Track Rollers are categorized by structural characteristics:
- Without axial guidance series
- With axial guidance series
- With bolted shafts (stud type)
The axial guidance series incorporates thrust washers for axial load support, including NATR (with cage), NATV (fully loaded needle roller structure for heavy-duty applications), and NUTR models.
Product Features
- High radial and axial load capacity
- Sturdy guide rails suitable for high dynamic and static loads
- Optimal load distribution across guide rails
- Extended service life for bearings and guide rails
- Easy replacement of bearing components
Usage Questions & Answers
Where are cam followers used?
Widely applied in machine tools, metallurgical machinery, textile machinery, printing machinery, and processing assembly lines.
Why choose cam follower track rollers over other bearing types?
Specifically engineered for track operations, transmission devices, and conveyor systems where direct rolling on raceways is required.
How to select cam follower sizes?
Determine by inner diameter, which specifies the compatible shaft diameter for installation.
Proper installation procedure:
Step 1: Lubrication - Apply lubricating grease or oil to the lubrication groove, ensuring complete coverage of rolling surfaces.
Step 2: Inner ring tight fit - Use a sleeve to press evenly onto the shaft, avoiding tilting during installation.
Step 3: Outer ring loose fit - Press directly into seat hole, using a copper rod to distribute impact force when hammering.
Purchasing Guide
- Load bearing capacity: Evaluate radial and axial load requirements as different models vary significantly
- Swing angle: Consider models with larger deflection angles for applications requiring substantial angular movement
- Material selection: Inner and outer ring materials directly impact wear resistance and operational lifespan
- Lubrication method: Choose between pre-lubricated designs or regular maintenance models based on maintenance cycle preferences
