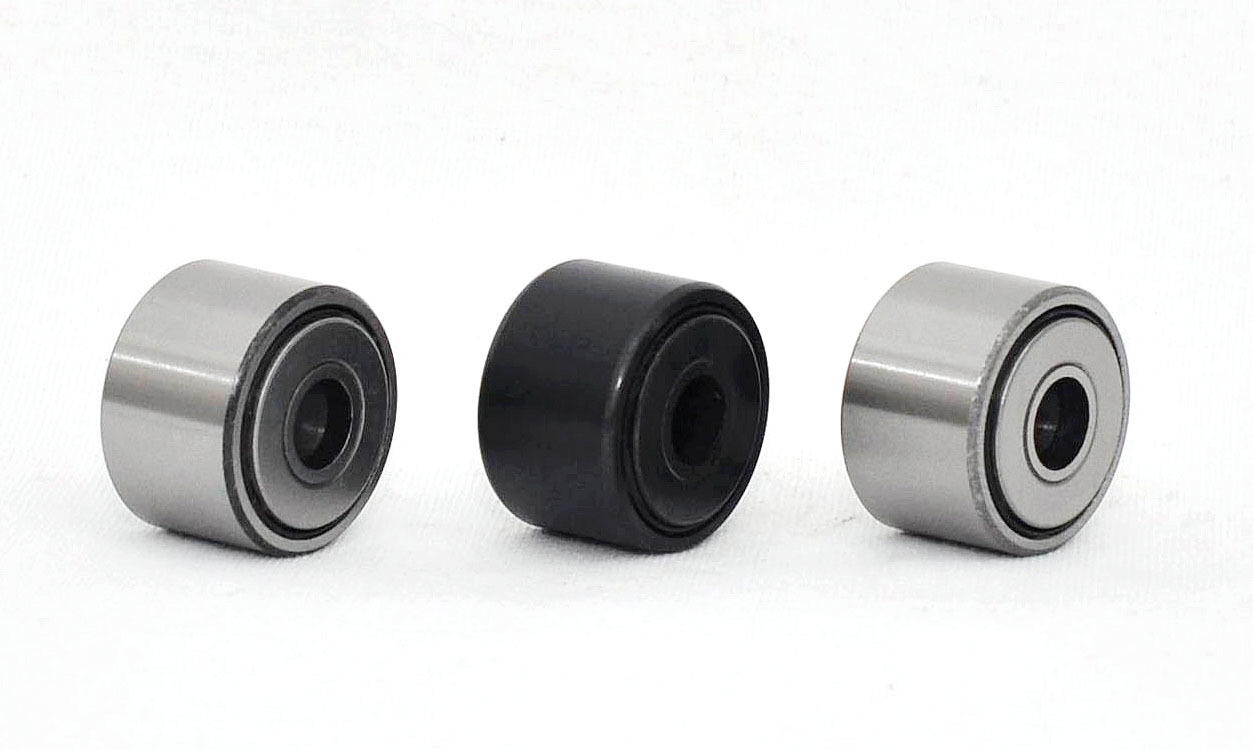

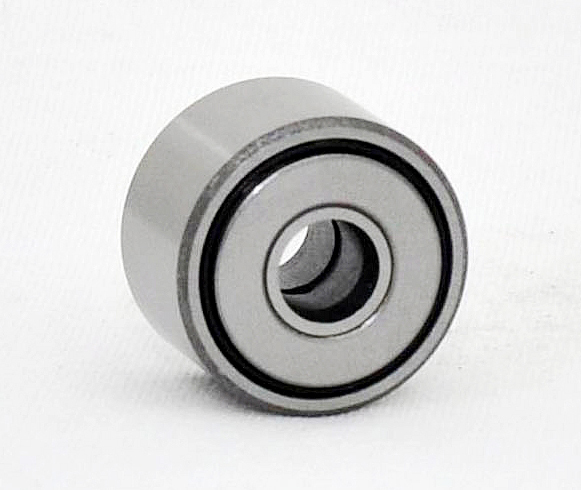

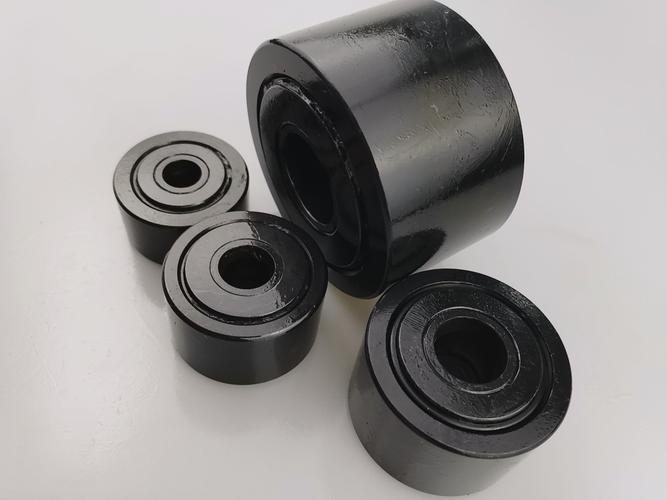

CYR Yoke Type Cam Followers SYX
Complete unit consists of outer ring,inner ring,needle retainer assembly and the retainerring rings which are pressed and fixedbu the two side of inner ring.
Outer ring is axially guided by a thrust washer.Black oxide treated bearing steel.
Usage Questions & Answers
What's the difference between KR.. KR..PP, and KRV..PP?
KRV..PP is full complement roller type, with seals on both sides. KR..PP is in steel cage with seals, KR is in steel cage without seals.
Where are cam followers used?
Widely applied in machine tools, metallurgical machinery, textile machinery, printing machinery, and processing assembly lines.
Why choose cam follower track rollers over other bearing types?
Specifically engineered for track operations, transmission devices, and conveyor systems where direct rolling on raceways is required.
How to select cam follower sizes?
Determine by inner diameter, which specifies the compatible shaft diameter for installation.
Proper Installation Procedure
Step 1: Lubrication
Apply lubricating grease or oil to the lubrication groove, ensuring complete coverage of rolling surfaces.
Step 2: Inner ring tight fit
Use a sleeve to press evenly onto the shaft, avoiding tilting during installation.
Step 3: Outer ring loose fit
Press directly into seat hole, using a copper rod to distribute impact force when hammering.
Purchasing Guide
Load bearing capacity: Evaluate radial and axial load requirements as different models vary significantly
Swing angle: Consider models with larger deflection angles for applications requiring substantial angular movement
Material selection: Inner and outer ring materials directly impact wear resistance and operational lifespan
Lubrication method: Choose between pre-lubricated designs or regular maintenance models based on maintenance cycle preferences
