Corrosion Resistant Hydraulic Cylinder Rod End with Welding Shank Spherical Plain Bearing

Basic Information
Place of Origin: Shanghai, China
Brand Name: SYX
Certification: ISO/TS 16949:2009
Model Number: GK...
Minimum Order Quantity: 100 PCS
Packaging Details: wooden pallet
Delivery Time: 30 working days
Payment Terms: T/T,L/C,Western Union
Get Best Price
Chat Now
Detail Information
Bore Diameter: 10-80 Mm Head Diameter: 9-180 Mm
Ball Width: 20-80 Mm Thread Size: 7-47 Mm
Tilt Angle: 6-17° Static Load Rating: 8.15-620 KN
Highlight:

Welding Shank Hydraulic Cylinder Rod End

,

Spherical Rod End Bearing

,

Corrosion Resistant Spherical Plain Bearing


Product Description

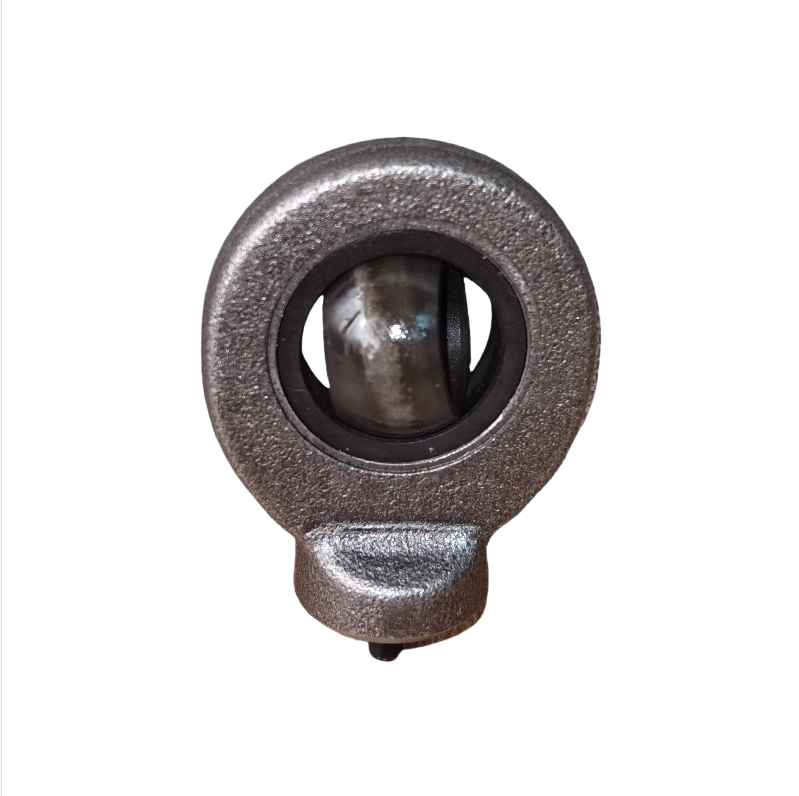

GK Series Hydraulic Rod Ends

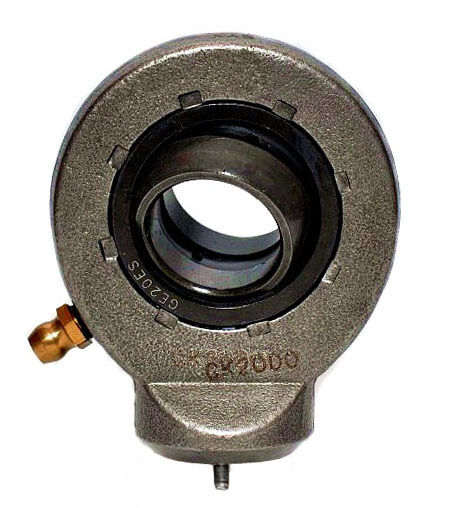

GK..DO series hydraulic rod ends with cylindrical section welding shank, steel/steel construction, requiring maintenance. Rod end with welding shank consists of a rod end housing and a radial spherical plain bearing (GE...E or GE...ES). The rod end housing is manufactured from weldable steel, featuring a dowel pin in the shank bottom and welding chamfer. This design allows for convenient relubrication via a nipple or hole.
Key Features
  • For shaft diameters from 10 mm to 80 mm
  • Concentric locating pin on shank base and 45º welding chamfer
  • Spherical plain bearing located in housing by staking on both sides
  • Designed for piston rod ends and cylinder bases
  • Available with maintenance-free spherical plain bearings
Material Specifications
General Purpose Material:
  • Housing: construction steel S 355 J2G3 (St 52-3 N) (1.0570)
  • Bearing: GCr15(52100,100Cr6) bearing steel, phosphate treated
Corrosion Resistant Material:
  • Housing: AIS316 stainless steel
  • Bearing: AISI420 stainless steel
  • Liner: PTFE fabric
  • Shaft diameter: 20~50mm
Technical Specifications
Designation Bore diameter (d) Head diameter (d2) Ball width (B) Thread size (G) Head width (C1) Tilt angle (α°) Basic dynamic load rating (C) Basic static load rating (C0)
GK 15 DO 15 12 40   10 8 17 32
GK 40 FO 40 102 40   27 17 127 208
GK 40 LO 40 92 40   23 7 100 156
GK 25 LO 25 64 25   17 7 48 72
SGK 20 UK-2RS 20 16 53   13 9 30 54
GK 45 DO 45 32 102   27 7 127 208
GK 20 DO 20 16 53   13 9 30 54
GK 17 DO 17 14 46   11 10 21.2 40
GK 12 DO 12 10 34   8 11 10.8 21.6
GK 45 FO 45 112 43   30 15 156 250
GK 35 FO 35 92 35   23 16 100 156
GK 30 FO 30 82 32   21 17 80 125
GK 20 FO 20 64 25   17 17 48 72
GK 60 LO 60 135 60   38 6 245 390
GK 45 LO 45 102 45   27 7 127 208
GK 35 LO 35 82 35   21 6 80 125
GK 20 LO 20 53 20   13 9 30 54
SGK 40 UK-2RS 40 28 92   23 7 100 156
SGK 30 UK-2RS 30 22 73   19 6 62 95
SGK 25 UK-2RS 25 20 64   17 7 48 72
GK 60 DO 60 44 135   38 6 245 390
GK 40 DO 40 28 92   23 7 100 156
GK 35 DO 35 25 82   21 6 80 125
GK 25 DO 25 20 64   17 7 48 72
GK 10 DO 10 9 29   7 12 8.15 15.6
GK 60 FO 60 161 63   42 17 315 510
GK 50 FO 50 137 56   38 17 245 390
GK 25 FO 25 73 28   19 17 62 95
GK 70 LO 70 160 70   42 6 315 510
GK 50 LO 50 112 50   30 6 156 250
GK 30 LO 30 73 30   19 6 62 95
SGK 45 UK-2RS 45 32 102   27 7 127 208
SGK 35 UK-2RS 35 25 82   21 6 80 125
GK 70 FO 70 180 70   47 16 400 620
GK 80 LO 80 180 80   47 6 400 620
SGK 50 UK-2RS 50 35 112   30 6 156 250
GK 70 DO 70 49 160   42 6 315 510
GK 50 DO 50 35 112   30 6 156 250
GK 30 DO 30 22 73   19 6 62 95
GK 80 DO 80 55 180   47 6 400 620

Usage Instructions
1. Safety & Preparation
  • Wear appropriate PPE (safety glasses, gloves, welding helmet)
  • Clean all parts thoroughly before installation
  • Ensure bearing moves freely without obstruction
  • Identify the dowel pin on shank bottom
  • Drill matching hole in mounting plate for pin alignment
2. Welding Procedure
  • Use standard arc welding (MIG/TIG recommended)
Critical: Prevent bearing heat damage during welding
  • Use a heat sink near the bearing area
  • Weld in short, staggered segments and allow cooling between passes
  • Avoid continuous welding around the circumference
  • Fill the welding chamfer completely for optimal strength
3. Post-Weld Procedures
  • Allow to cool naturally - do not quench
  • Inspect weld quality and integrity
  • Verify bearing still moves freely without binding
  • Relubricate immediately (for types with nipple/hole)
  • Install linkage bolt through bearing inner ring and secure properly

Buyer's Guide
Choose the Correct Series
  • GE...E / GE...ES: General industrial linkages
    • E: Steel-on-steel, requires relubrication. Higher load capacity
    • ES: Coated surface, often maintenance-free operation
  • GK Series: Use specifically for hydraulic cylinder connections
    • Heavy-duty construction for high shock loads
    • Enhanced seals for harsh industrial environments
Key Specifications to Verify
  • Size compatibility (bolt bore, housing diameter)
  • Static Load Rating (C0) - Most critical parameter for welded ends
  • Angular misalignment capability
  • Shank dimensions and chamfer specifications
Material & Environmental Considerations
  • Housing/shank material: Weldable steel construction
  • Seal type (standard rubber or specialty materials)
  • Lubrication temperature operating range
Selection Checklist
✓ Request technical datasheets with complete load ratings
✓ For hydraulic applications, specify GK series
✓ Confirm warranty coverage and installation requirements
✓ Verify material compatibility with operating environment
✓ Ensure proper sizing for intended application
