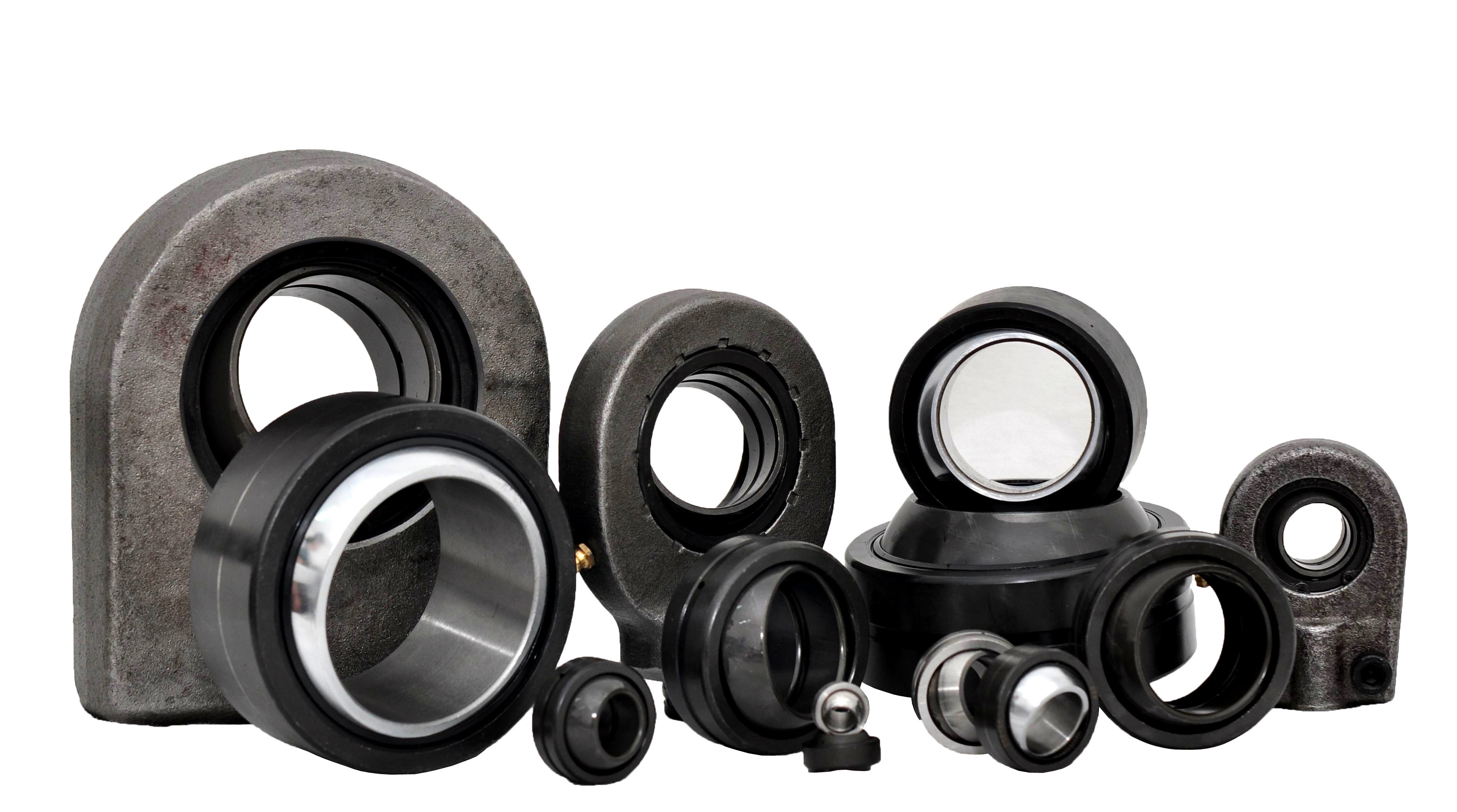

Hydraulic Cylinder Rod Ends: GK...DO,GF...DO, GIHR...DO,GIHN-K...LO,GIHO-K...DO High corrosion resistance Bearing

1. Product Review

Hydraulic Cylinder Rod Ends (also known as Clevis Rod Ends) are critical components that provide a pivotal connection point between the hydraulic cylinder's piston rod and the machine structure. This design allows for angular misalignment during cylinder operation, accommodating movement and reducing stress on the rod and mounting points. They are common in applications like dump trucks, agricultural equipment, construction machinery, and industrial presses where articulation is required. The market offers a range of options, from high-precision, small-batch components to heavy-duty, high-load models, with significant cost variations based on order volume and material specifications.

2. Key Features

• Pivotal Connection:​ Enables angular misalignment, allowing the cylinder to move in an arc and absorb mechanical stresses.

• High-Strength Materials:​ Typically made from high-strength carbon steel, often with surface treatments like zinc plating or hard chrome plating for corrosion resistance. Stainless steel variants (e.g., 304, 316) are available for highly corrosive environments.

• Precision Engineering:​ Designed for accurate rod alignment, ensuring smooth force transfer and high rigidity.

• Load Capacity:​ Engineered to handle high dynamic loads, including heavy shock and vibration, with specific static and dynamic load ratings.

3. Application

• Construction & Agriculture:​ Dump trucks, excavators, backhoes, and agricultural machinery (e.g., plows, balers) for lifting and tilting operations.

• Industrial Machinery:​ Hydraulic presses, industrial automation, and material handling systems.

• Steering & Actuation:​ Used in steering linkages and linear actuators where articulation is necessary.

• Custom Assemblies:​ Integrated into custom hydraulic cylinder assemblies for specialized machinery.

4. FAQ (Frequently Asked Questions)

Q: What materials are commonly used for clevis rod ends?

A: High-strength carbon steel is standard for most industrial applications, often treated with zinc or hard chrome plating. Stainless steel variants (304, 316) are essential for marine or corrosive environments. Forged steel is used for the highest load requirements.

Q: How do I determine the correct size clevis rod end?

A: Sizing requires matching the pin diameter to the mating component (e.g., the machine frame's lug width), selecting the appropriate rod thread size (metric or UN), and ensuring the clevis width accommodates the lug thickness. Critical dimensions include pin bore diameter, rod thread size, and clevis width.

Q: What are the common failure modes for hydraulic cylinder rod ends?

A: Common issues include bent rods due to misalignment or overloading, thread or connection failures from vibration, and seal leaks leading to fluid loss. Regular inspection for straightness and proper torque is recommended.

Q: Are there self-lubricating options available?

A: Yes, many manufacturers offer maintenance-free rod ends with self-lubricating materials like PTFE or bronze composites, eliminating the need for periodic greasing.
