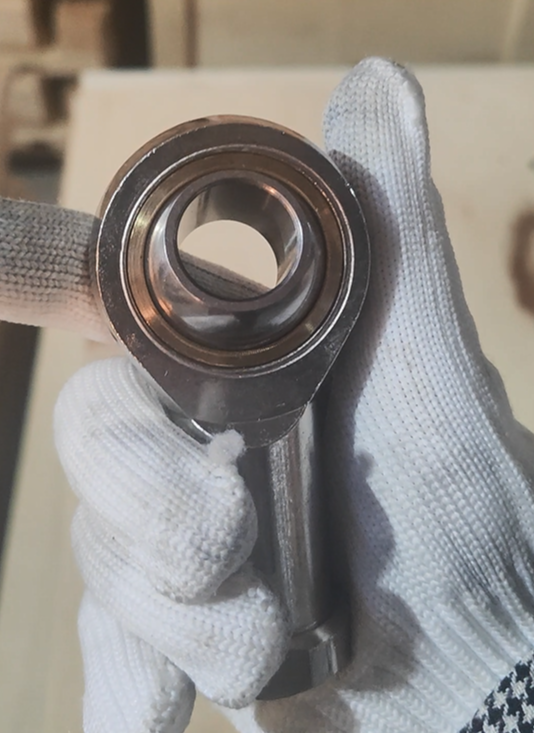

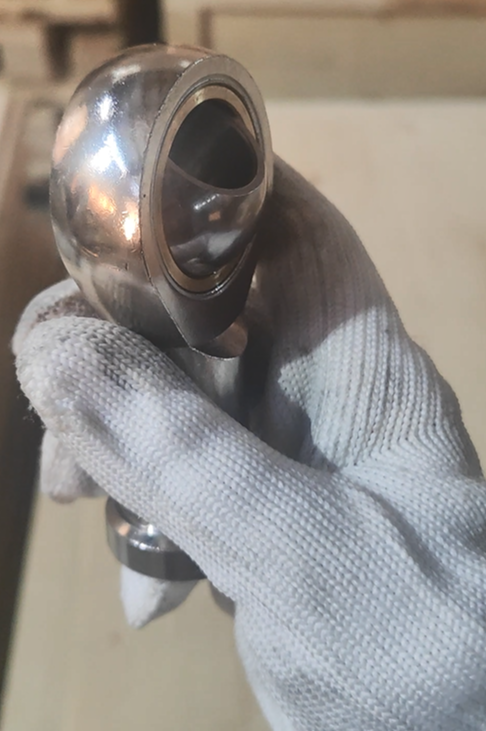

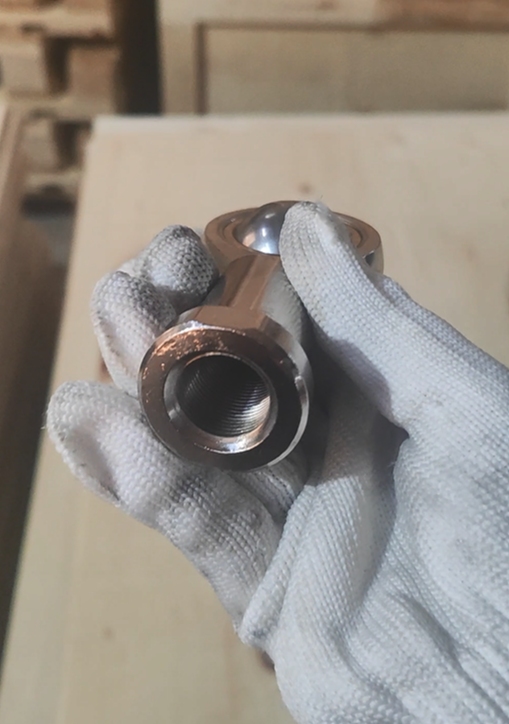

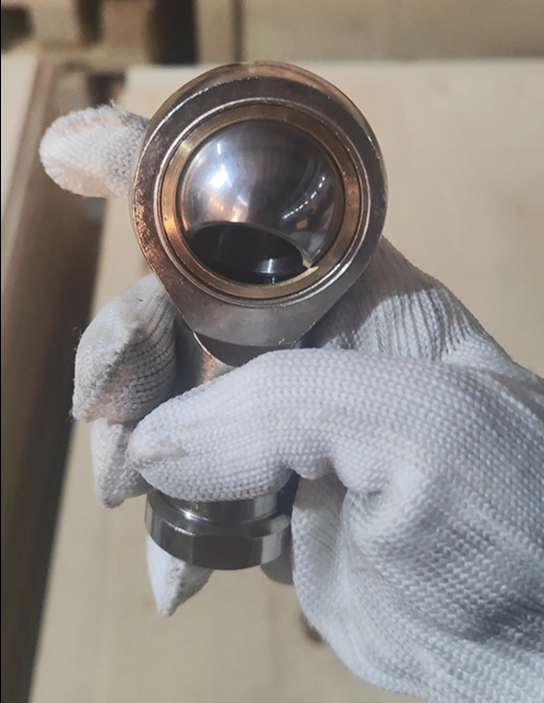

SI..TK maintenance-free rod end bearing features female thread design.

SI..TK Maintenance-Free Rod End Bearings: Selection Guide & Performance Comparison

Compare SI..TK maintenance-free rod end bearings vs re-lubricatable rod end models. Learn load ratings, swing angles, service intervals and selection tips for automation equipment, hydraulic systems and general industrial machinery.

SI..TK maintenance-free rod end bearings are widely used for internal-thread articulated connections in mechanical linkages, providing reliable tilt compensation and installation misalignment correction under combined radial and axial loads. As a mainstream internal-thread rod end bearing series, SI..TK features a high-strength reinforced self-lubricating composite liner with factory pre-lubrication. It requires no regular grease replenishment during operation, making it an ideal choice for automated machinery, hydraulic equipment, food processing machinery and light-to-medium industrial mechanical structures.

A frequent question from design engineers: When should I choose SI..TK maintenance-free rod end bearings compared with re-lubricatable rod end bearings such as PHS series?

Bearing selection cannot rely solely on procurement cost. It depends on actual load conditions, cyclic working frequency, environmental conditions and equipment maintenance plans. This guide comprehensively introduces the core structure, key performance parameters, applicable scenarios and professional selection tips of SI..TK rod end bearings, helping mechanical designers quickly confirm whether this bearing model matches their project requirements.

What Is an SI..TK Maintenance-Free Rod End Bearing?

An SI..TK rod end bearing consists of an integrated carbon steel housing with internal thread and a precision hardened spherical plain insert. The spherical inner ring can freely swing, tilt and rotate inside the outer ring to adapt to multi-directional mechanical displacement. The sliding friction pair adopts a high-performance reinforced self-lubricating composite liner impregnated with solid lubricant during production. This mature self-lubricating structure effectively reduces friction and abrasion during long-term oscillating motion, eliminating the need for periodic manual lubrication maintenance.

Key Features of SI..TK Maintenance-Free Rod End Bearings

Pre-impregnated reinforced composite liner: 100% maintenance-free, no on-site greasing required for normal operation

·

High-strength carbon steel housing + hardened bearing steel spherical insert: Excellent structural rigidity, wear resistance and intermittent impact resistance

·

Comprehensive load capacity: Supports compound radial and axial loads, suitable for medium-load cyclic working conditions

·

Precision self-alignment function: Compensates assembly errors and dynamic angular deviation during equipment operation

·

Standard internal thread design: Easy for nested installation and hidden structural assembly, compatible with various standard mechanical parts

·

When to Use an SI..TK Maintenance-Free Rod End Bearing

SI..TK rod end bearings are perfectly suited for:

·

Automation equipment linear motion linkage mechanisms

·

Hydraulic system internal connection joints

·

General industrial machinery swing and pivot structures

·

Precision packaging and processing equipment articulated parts

·

Medium-load mechanical joints with inaccessible lubrication positions

·

SI..TK series focuses on medium-load bearing capacity and zero-maintenance advantages. It is specially designed for mechanical structures with limited maintenance space and intermittent impact loads. It is not recommended for continuous heavy shock and ultra-high frequency heavy swing working conditions.

Load and Swing Performance: What Really Matters

The core advantage of SI..TK maintenance-free rod end bearings is stable medium-load operation and maintenance-free long-term service. Engineers must refer to dynamic load and swing angle data instead of only static load parameters during selection.

SI..TK maintenance-free rod end bearings core parameters:

·

Maximum permissible swing angle: 13° ~ 17°

·

Static load capacity: 20 kN ~ 360 kN (varies by specification)

·

Dynamic load capacity: 10 kN ~ 150 kN (varies by specification)

·

With reliable composite self-lubricating liner, SI..TK rod ends maintain low-friction operation under medium cyclic loads and intermittent impact. Field application tests prove that SI..TK bearings deliver consistent and stable operation in standard industrial environments, with no liner aging or failure in long-term low-shock swing cycles.

Lubrication & Maintenance: SI..TK Maintenance-Free Rod End Bearings

SI..TK series is professionally designed for maintenance-free operation:

·

Reinforced self-lubricating liner embedded with high-performance solid lubricant, no periodic greasing required

·

Recommended regular inspection cycle: Check liner wear every 300–500 working hours

·

Strictly avoid abrasive dust, metal debris and long-term water immersion to prevent sliding surface damage

·

Note: Maintenance-free does not mean inspection-free. Long-term harsh pollution will cause liner wear, increased friction and premature bearing failure.

Material & Environmental Suitability

Standard SI..TK rod end bearing housing adopts high-quality carbon steel with anti-corrosion zinc plating treatment. The spherical sliding insert is made of integrally hardened bearing steel, and the friction layer is a high-strength reinforced composite self-lubricating liner.

Working temperature range: -35℃ ~ +125℃

Without additional special surface protection, SI..TK bearings are not applicable for long-term working in strong acid, strong alkali and high salt spray corrosive environments.

Weight & Installation Notes

SI..TK features standard internal thread structure, suitable for embedded assembly of mechanical parts.

·

Ensure precise alignment during installation, prohibit forced offset assembly

·

Do not exceed the rated maximum swing angle to avoid edge stress concentration on spherical surface

·

Prohibit direct hammering and heavy impact on the bearing body during installation

·

Noise & Vibration Performance

With intact self-lubricating liner, SI..TK rod end bearings operate with ultra-low friction noise and can absorb minor and medium vibration of mechanical joints. Once the liner is worn or contaminated, operating noise and friction resistance will increase significantly.

Cost Comparison: SI..TK Maintenance-Free vs Re-lubricatable PHS Rod Ends

SI..TK maintenance-free internal-thread rod end bearings have a higher initial purchase cost than traditional re-lubricatable PHS rod end bearings. However, it completely saves long-term labor costs and grease maintenance costs. For medium-load equipment with hidden joints and difficult maintenance, SI..TK has a lower total cost of ownership throughout the lifecycle.

In contrast, PHS re-lubricatable rod ends have lower initial cost but require regular lubrication maintenance, and are more suitable for heavy-load and high-impact working scenarios.

Which One Should You Choose?

Choose SI..TK maintenance-free rod end bearings if:

The equipment bears medium compound loads with intermittent slight impact

·

The bearing installation position is hidden and lubrication maintenance is impossible

·

Zero daily maintenance and long-term stable operation are required

·

Internal thread embedded installation is needed for structural design

·

Choose re-lubricatable rod end bearings (PHS series) if:

·

The equipment operates under continuous heavy load and frequent strong impact

·

The working position is convenient for regular grease replenishment and maintenance

·

Ultra-long service life is required under heavy swing cycles

·

Control initial component procurement cost

·

Why SI..TK Maintenance-Free Rod End Bearings Stay Popular in 2026

More mechanical design engineers prefer SI..TK internal-thread self-lubricating rod end bearings for precision automation and medium-duty industrial equipment. The high-strength composite liner achieves stable friction performance without grease maintenance. With basic dust and pollution protection, SI..TK rod ends can provide precise, low-noise and long-term stable articulated motion for various industrial mechanical linkage systems.

FAQ

Q: What is the difference between SI..TK and PHS rod end bearings?

A: SI..TK is an internal-thread maintenance-free rod end bearing with reinforced composite liner, suitable for medium load and intermittent impact working conditions; PHS is a re-lubricatable external-thread bearing with grease nipple, designed for medium-to-heavy load and continuous impact scenarios.

Q: What are the load ratings and swing angle of SI..TK rod end bearings?

A: Depending on specific specifications, the static load ranges from 20 kN to 360 kN, dynamic load ranges from 10 kN to 150 kN, and the maximum swing angle is 13°–17°.

Q: Does SI..TK rod end bearing need regular greasing?

A: No. SI..TK series is fully maintenance-free with factory pre-filled solid lubricant. Only regular visual wear inspection is required, no grease injection is needed.

Q: What materials and temperature range do SI..TK rod ends support?

A: Zinc-plated carbon steel housing, hardened bearing steel spherical insert, reinforced composite self-lubricating liner. Working temperature range: -35℃ to +125℃. Additional anti-corrosion treatment is required for harsh corrosive environments.

The selection of SI..TK maintenance-free rod end bearings depends on actual load level, swing angle, working environment and equipment maintenance strategy. The SI..TK series has outstanding advantages in medium-duty internal-thread articulated joints where routine lubrication cannot be performed. Mastering these performance characteristics helps designers select the most matching rod end bearing for mechanical linkage structures.
