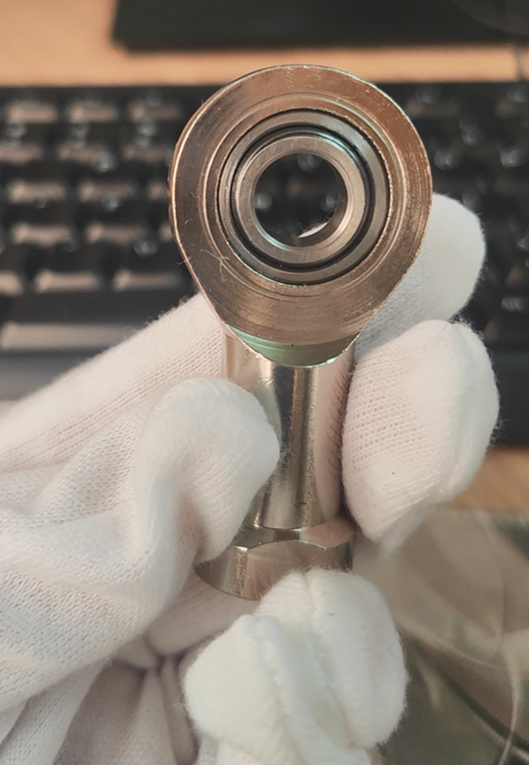

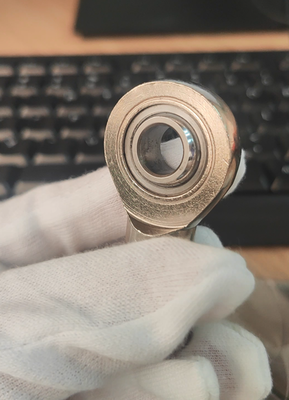

SI..C Maintenance-Free Rod End Bearings SI C 5-30mm For Machinery

SI..C Maintenance-Free Rod End Bearings: Selection Guide & Performance Comparison

Compare SI..C maintenance-free rod end bearings vs re-lubricatable rod end models. Learn load ratings, swing angles, service intervals and selection tips for automation systems, light industrial equipment and precision mechanical linkages.

SI..C maintenance-free rod end bearings are widely adopted for internal-thread articulated connections in mechanical structures, delivering accurate tilt compensation and installation misalignment correction under combined radial and axial loads. As a classic internal-thread rod end bearing series, SI..C features a premium PTFE sintered bronze self-lubricating liner with full factory pre-lubrication. It requires no grease refilling during the entire service cycle, making it a preferred solution for precision automation equipment, packaging machinery, textile equipment and light-to-medium duty industrial linkage systems.

A frequent question from design engineers: When should I select SI..C maintenance-free rod end bearings instead of re-lubricatable rod end bearings such as the PHS series?

Bearing selection should never depend purely on component price. It is determined by actual load conditions, operating cycle frequency, ambient working environment and long-term equipment maintenance plans. This guide elaborates on the core structure, professional performance parameters, typical application scenarios and practical selection tips of SI..C rod end bearings, helping mechanical designers quickly verify whether this bearing model fits their mechanical projects.

What Is an SI..C Maintenance-Free Rod End Bearing?

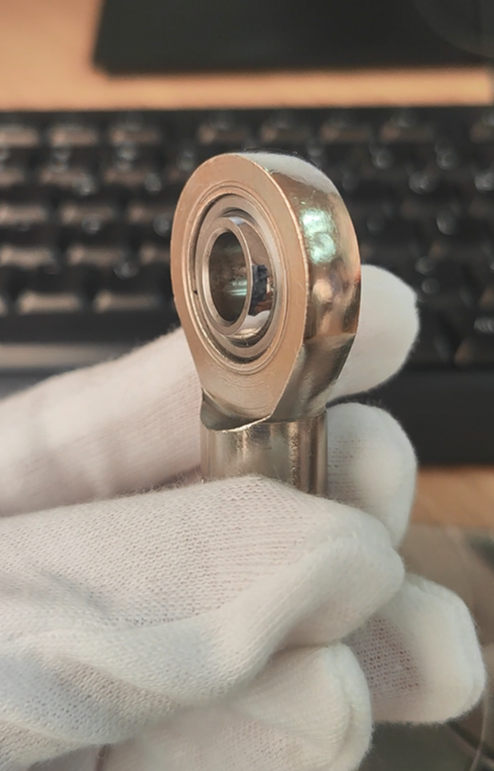

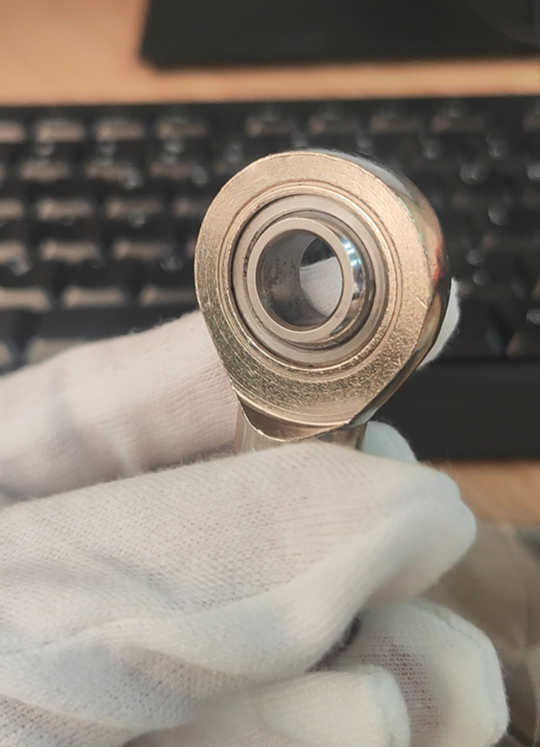

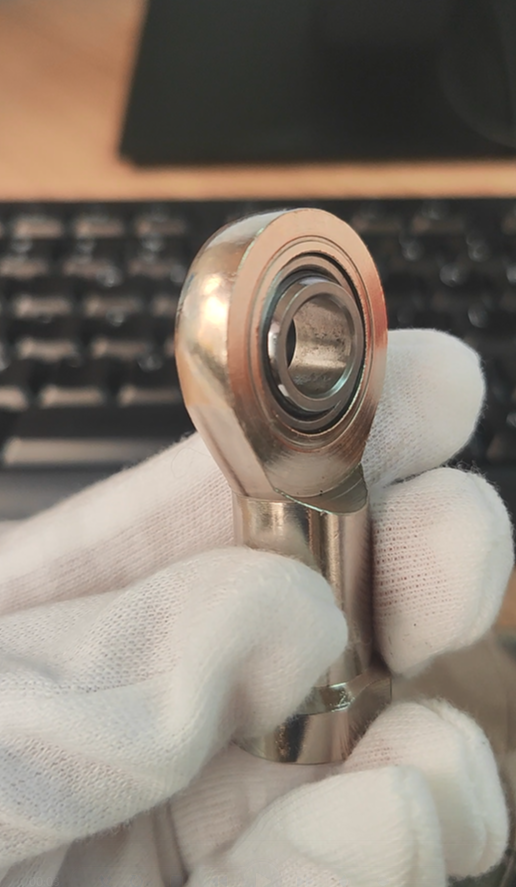

An SI..C rod end bearing consists of an integrated carbon steel housing with standard internal thread and a precisely machined hardened spherical plain insert. The spherical inner ring can freely swing, tilt and rotate inside the outer ring to compensate multi-directional mechanical displacement and assembly errors. The sliding friction surface adopts high-quality PTFE sintered bronze composite liner, which is pre-impregnated with solid lubricant during manufacturing. This mature self-lubricating structure effectively reduces friction coefficient and abrasion during continuous oscillating motion, completely eliminating the need for periodic manual lubrication and daily maintenance.

Key Features of SI..C Maintenance-Free Rod End Bearings

Premium PTFE sintered bronze liner: Complete maintenance-free performance, no on-site greasing required for standard operation

Zinc-plated carbon steel housing + hardened bearing steel spherical insert: Stable structural rigidity, excellent wear resistance and smooth motion performance

Dual-load bearing capacity: Tolerates combined radial and axial loads, perfectly suitable for light and medium cyclic load working conditions

High-precision self-alignment capability: Compensates installation offset and dynamic angular deviation during long-term equipment operation

Standard internal thread design: Supports embedded and hidden installation, highly compatible with standard mechanical connecting parts

When to Use an SI..C Maintenance-Free Rod End Bearing

SI..C rod end bearings are perfectly suited for:

Automation equipment linear actuator linkage structures

Precision packaging machinery and textile machine pivot joints

Light industrial mechanical swing and connecting mechanisms

Robotic arm and precision equipment articulated components

Light-to-medium load joint positions with inaccessible or inconvenient lubrication maintenance

SI..C series focuses on stable low-friction operation and zero-maintenance advantages. It is optimized for light and medium cyclic load scenarios with minor vibration. It is not recommended for continuous heavy impact, ultra-high frequency swing and heavy-duty overload working conditions.

Load and Swing Performance: What Really Matters

The core advantage of SI..C maintenance-free rod end bearings is consistent low-friction performance and long-term maintenance-free service under light-to-medium cyclic loads. Design engineers must evaluate dynamic load capacity and actual swing angle rather than only referring to static load data during model selection.

SI..C maintenance-free rod end bearings core parameters:

Maximum permissible swing angle: 12° ~ 16°

Static load capacity: 18 kN ~ 320 kN (varies by specific specification)

Dynamic load capacity: 9 kN ~ 135 kN (varies by specific specification)

Equipped with high-stability PTFE sintered bronze liner, SI..C rod ends maintain ultra-low friction operation under standard industrial cyclic loads. Practical field tests verify that SI..C bearings deliver stable and repeatable motion accuracy in long-term light swing cycles, with no liner peeling, aging or excessive wear.

Lubrication & Maintenance: SI..C Maintenance-Free Rod End Bearings

The SI..C series is professionally engineered for full maintenance-free operation:

Factory pre-impregnated solid lubricant inside PTFE liner, no periodic grease injection required throughout the service life

Recommended inspection cycle: Conduct visual wear check every 300–500 operating hours

Keep the sliding surface away from abrasive dust, fine debris and continuous water immersion to protect the self-lubricating layer

Note: Maintenance-free design does not mean inspection-free. Long-term exposure to harsh contaminated environments will accelerate liner wear, increase operating friction and cause premature bearing failure.

Material & Environmental Suitability

Standard SI..C rod end bearing housing adopts high-quality carbon steel with zinc-plated anti-corrosion treatment. The spherical sliding insert is made of integrally hardened bearing steel, and the friction layer is high-performance PTFE sintered bronze self-lubricating liner.

Working temperature range: -40℃ ~ +130℃

Without customized enhanced surface protection, SI..C bearings are not suitable for long-term continuous operation in strong acid, strong alkali and heavy salt spray corrosive environments.

Weight & Installation Notes

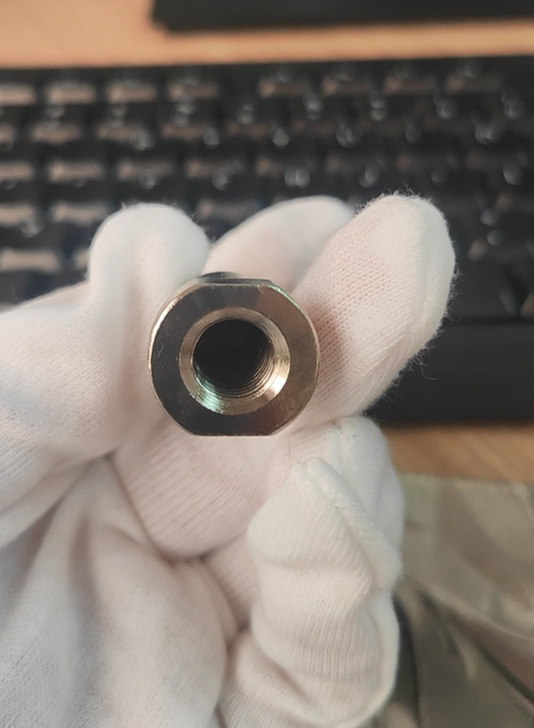

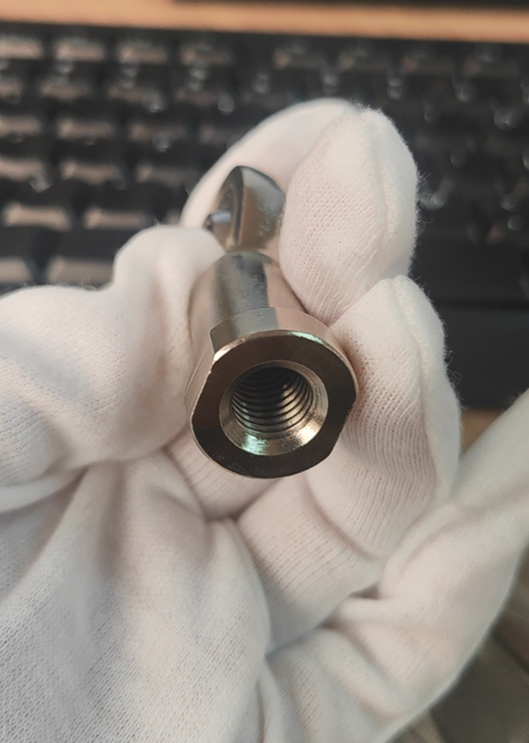

SI..C adopts standard internal thread structure, specially designed for embedded assembly of precision mechanical parts.

Ensure precise coaxial alignment during installation; strictly prohibit forced offset assembly

Do not exceed the rated maximum swing angle to avoid edge stress concentration and local abrasion on the spherical surface

Prohibit direct hammering and violent impact on the bearing body during installation to prevent structural deformation

Noise & Vibration Performance

With intact PTFE sintered bronze liner, SI..C rod end bearings operate with extremely low friction noise and effectively absorb minor mechanical vibration at articulated joints. Once the self-lubricating liner is worn, scratched or contaminated, operating noise and friction resistance will rise rapidly and affect motion accuracy.

Cost Comparison: SI..C Maintenance-Free vs Re-lubricatable PHS Rod Ends

SI..C maintenance-free internal-thread rod end bearings have a higher upfront procurement cost than traditional re-lubricatable PHS rod end bearings. Nevertheless, it eliminates recurring labor costs, grease consumption and regular maintenance workload. For light-to-medium load precision equipment with hidden, hard-to-reach joint positions, SI..C achieves lower total cost of ownership during the full equipment lifecycle.

In comparison, PHS re-lubricatable rod ends feature lower initial component cost but require periodic lubrication maintenance, making them more suitable for medium-heavy load and frequent impact working conditions.

Which One Should You Choose?

Choose SI..C maintenance-free rod end bearings if:

The equipment operates under light-to-medium compound loads with minor vibration

The bearing installation position is concealed and regular lubrication maintenance is impossible

Low noise, high precision and zero daily maintenance are core requirements

Mechanical structural design requires internal thread embedded installation

Choose re-lubricatable rod end bearings (PHS series) if:

The equipment withstands continuous heavy compound loads and frequent strong impact

The working position is accessible for regular grease replenishment and maintenance

Ultra-long service life is required under continuous heavy swing cycles

Project requires lower initial component procurement budget

Why SI..C Maintenance-Free Rod End Bearings Stay Popular in 2026

More and more mechanical design engineers choose SI..C internal-thread self-lubricating rod end bearings for precision automation and light industrial machinery. The premium PTFE sintered bronze liner delivers stable low-friction performance without any grease maintenance. With basic dust and contamination protection, SI..C rod ends provide high-precision, low-noise and ultra-stable articulated motion for various precision mechanical linkage systems.

FAQ

Q: What is the difference between SI..C and PHS rod end bearings?

A: SI..C is an internal-thread maintenance-free rod end bearing with PTFE sintered bronze liner, optimized for light-to-medium load and low-vibration precision scenarios; PHS is a re-lubricatable external-thread bearing with grease nipple, designed for medium-heavy load and continuous impact industrial conditions.

Q: What are the load ratings and swing angle of SI..C rod end bearings?

A: According to different specifications, the static load ranges from 18 kN to 320 kN, dynamic load ranges from 9 kN to 135 kN, and the maximum permissible swing angle is 12°–16°.

Q: Does SI..C rod end bearing need regular greasing?

A: No. The SI..C series is 100% maintenance-free with factory pre-impregnated solid lubricant. Only routine visual inspection for liner wear is required, no grease injection is needed.

Q: What materials and temperature range do SI..C rod ends support?

A: Zinc-plated carbon steel housing, hardened bearing steel spherical insert, PTFE sintered bronze self-lubricating liner. Working temperature range: -40℃ to +130℃. Enhanced anti-corrosion treatment is required for harsh corrosive working environments.

Conclusion

The selection of SI..C maintenance-free rod end bearings is determined by actual load magnitude, swing angle accuracy, ambient working environment and equipment maintenance strategy. The SI..C series exhibits prominent advantages in light-to-medium duty internal-thread articulated joints where routine lubrication cannot be implemented. Proficiency in these performance characteristics enables designers to select the most suitable rod end bearing for precision mechanical linkage structures.
