GEEM120ES-2RS Axial Spherical Plain Bearings Corrosion Resistant 16KN Load Ratings

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	SYX
Certification:	ISO/TS 16949: 2009
Model Number:	GEEM120ES-2RS

Minimum Order Quantity:	100 pcs
Packaging Details:	wooden pallet
Delivery Time:	30 working days
Payment Terms:	T/T,L/C,Western Union

Get Best Price

Chat Now

Detail Information

Dynamic Load Ratings:	16KN	Feature:	Low Friction; Low Vibration
Corrosionresistance:	High With Stainless Steel Or Special Coatings	Single Package Size:	15X10X15 Cm
Bore Size:	30 - 150 Mm	Loadcapacity:	Up To Several Tons Depending On Size
Sliding Contact Surfaces:	Steel / PTEF Composite	Dynamicloadrating:	Specified In KN, Varies By Size
Weight Range:	0.073-2.5 Kg	Precision Rating:	P2, P5, P0, P4, P6
Seal Type:	Lip Seals	Size:	456832MM
Single Gross Weight:	1.15kg	Ball Material:	Hard Chrome Plated
Height:	21mm
Highlight:	16KN Axial Spherical Plain Bearings , GEEM120ES-2RS Spherical bearing , Corrosion Resistant Axial Spherical bearing

Product Description

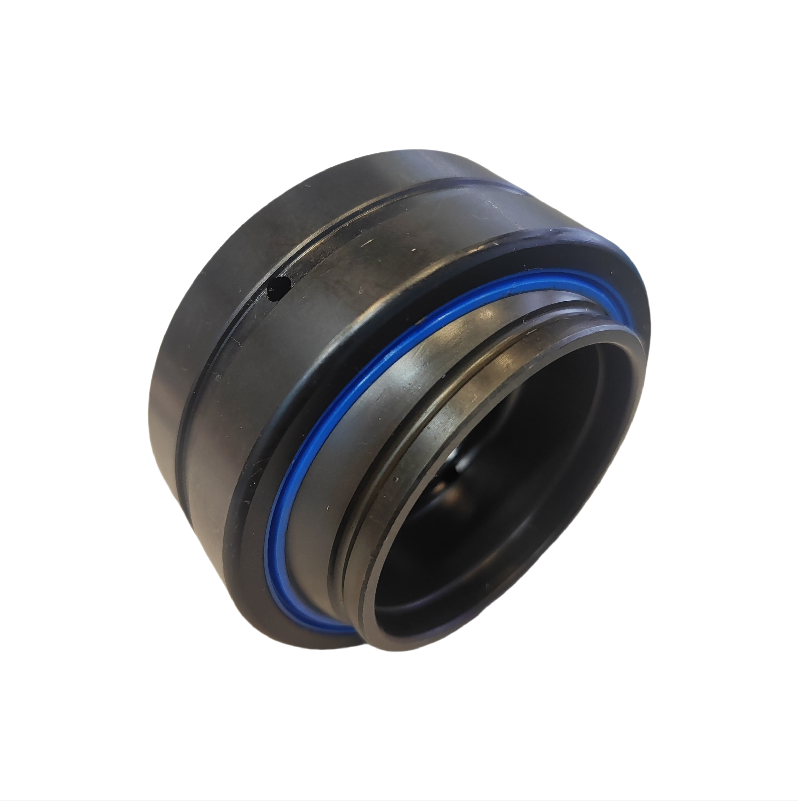

GEEM120ES-2RS Bearing

Product Overview

GEEM120ES-2RS is a high-performance sliding contact bearing designed for industrial applications requiring reliable operation under demanding conditions.

Technical Specifications

Sliding Contact Pair: Steel/steel construction

Key Features

Inner ring features extended sleeves at both ends for enhanced stability
Outer ring includes axial slit design for optimal performance
Both inner and outer rings manufactured from bearing steel
Heat-treated (quenched) for superior durability
Phosphate-coated surface treatment
Sliding surfaces coated with molybdenum disulfide for reduced friction
Double sealing rings on outer ring (-2RS designation)

Operating Temperature Range: -30°C to +130°C

Dimensions (mm)

Inner Diameter

Outer Diameter

Width

Height

Length

Weight

Load Ratings & Specifications

Static Load Rating: 950 kN

Dynamic Load Rating: 4750 kN

Approximate Weight: 8.44 kg
