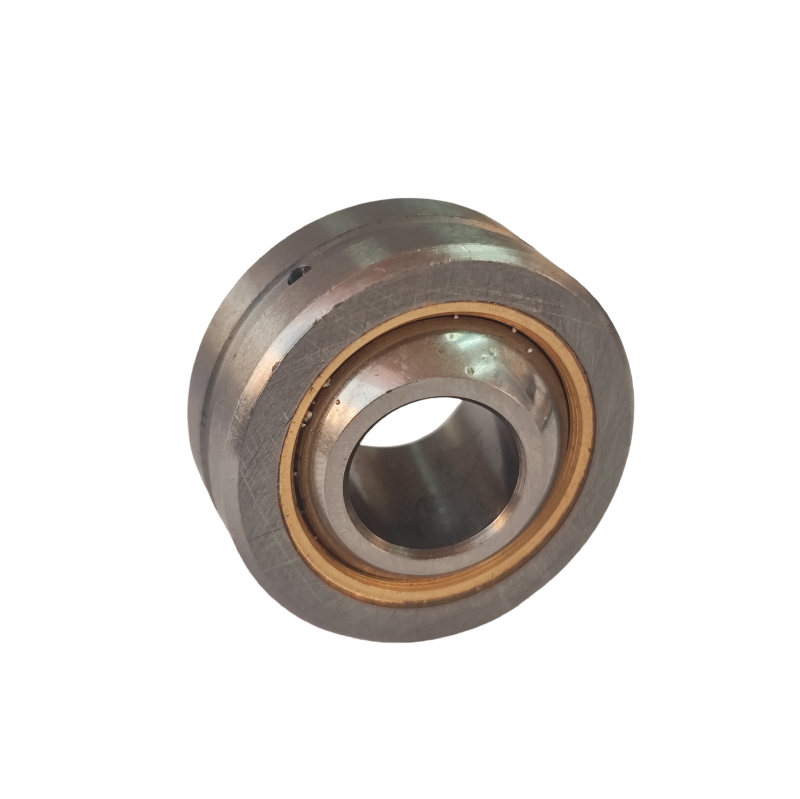

Name: Single Row GEBK30S Axial Spherical Bearings With Two Rubber Seals
Brand: Shanghai Yongxing Bearing Manufacturing Co., Ltd.
SKU: GEBK30S
Availability: InStock

Detail Information

Sliding Contact Surfaces:	Steel / PTEF Composite	Weight:	28kg
Technology:	Low Noise High Precision Durability	Sealingtype:	Open / Sealed / Shielded
Number Of Row:	Single Row	Closures:	Two Rubber Seals Optional
Internal Diameter:	5	Thread:	Tr 220x4
Innerdiameterrange:	10mm - 300mm	Standardcompliance:	ISO 12240 / DIN 648
Stock Qty:	350.pcs	Inner Diameter:	160mm
Size:	25x42x25mm	Cage Material:	Nylon,steel,brass
Package:	Customs' Requirements
Highlight:	GEBK30S spherical plain bearing , Single Row Axial Spherical Bearings , Two Rubber Seals Spherical Bearings

Product Description

GEBK30S Spherical Plain Bearings

ISO 9001 / IATF 16949 Certified

Radial spherical plain bearing from dimension series K, supplied as a four-piece set. This maintenance-required bearing features a steel/brass sliding contact surface configuration for optimal performance in demanding applications.

Construction Features

Outer ring: Carbon steel, formed construction with oil coating
Inner ring: 52100 bearing steel, precision ground and hardened with hard chromium plating
Insert liner: Brass material for enhanced sliding performance
Requires proper lubrication with grease for optimal operation

Dimensions

d	30 mm	Bore diameter
D	66 mm	Outside diameter
B	37 mm	Width inner ring
C	25 mm	Width outer ring
dk	50.8 mm	Ball diameter
a	17 °	Tilt angle
d2	34.8 mm	Connection measure inner ring
r1	0.6 mm	Chamfer dimension
r2	0.6 mm	Chamfer dimension

Load Capacity

Cr	63 kN	Basic dynamic load rating, radial
C0r	148 kN	Basic static load rating, radial

Weight

≈m

0.61 kg

Weight

Mounting Dimensions

da max

34.8 mm

Connection measure inner ring, max.

Radial Clearance

Min.	0.006 mm	Radial clearance
Max.	0.035 mm	Radial clearance

Tolerance Specifications

dOT	0.021 mm	Bore diameter, upper tolerance
DUT	-0.019 mm	Outside diameter, lower tolerance
BUT	-0.1 mm	Inner ring width, lower tolerance
COT	0.1 mm	Outer ring width, upper tolerance
CUT	-0.1 mm	Outer ring width, lower tolerance

Temperature Range

Tmin	-50 °C	Operating temperature min.
Tmax	150 °C	Operating temperature max.

Tag:

Place of Origin:	Shanghai, China
Brand Name:	SYX
Certification:	IATF 16949: 2016
Model Number:	GEBK30S

Minimum Order Quantity:	100 PCS
Packaging Details:	wooden pallet
Delivery Time:	30 working days
Payment Terms:	T/T,L/C,Western Union
