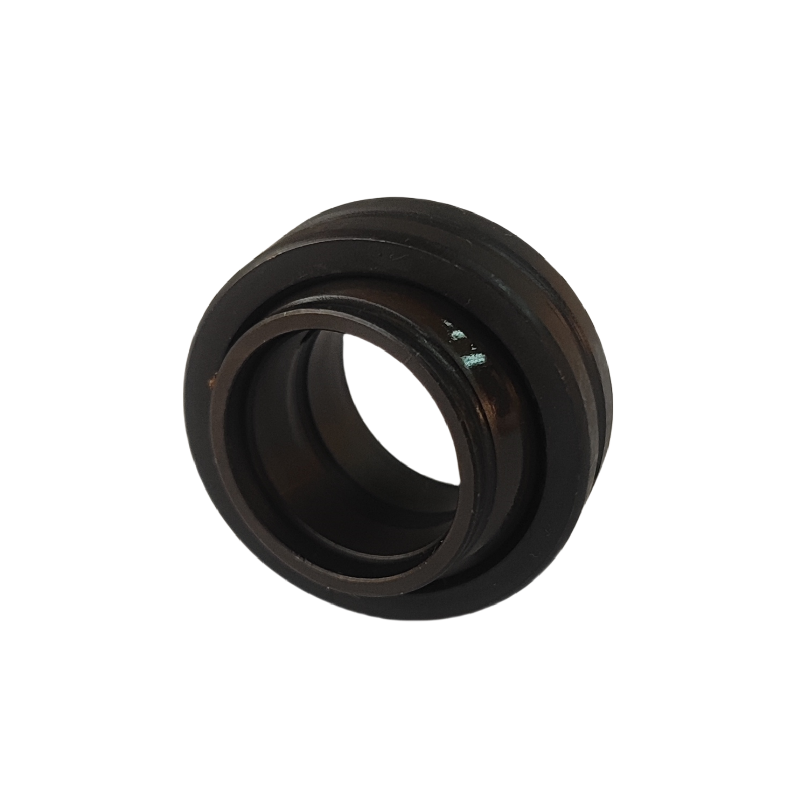

Name: GEEW60ETL-2RS Axial Spherical Plain Bearings Self Lubricating With Seals
Brand: Shanghai Yongxing Bearing Manufacturing Co., Ltd.
SKU: GEEW60ETL-2RS
Availability: InStock

Detail Information

Outer Race:	Carbon Steel	Stock:	Rich Stocks
Maintenance:	Self-lubricating	Operatingtemperaturerange:	-40°C To +150°C
Thickness:	6	Sliding Contact Surfaces:	Steel / PTEF Composite
Bearing Type:	Rod End Bearing	Outer Diameter:	26 Mm
Warranty:	6 Months	Type:	Joint
Working Temperature:	From 150 Degree To 350 Degree	Body Materialweight:	Chromate Treated
Race:	PTFE Injection Molded	Size:	ID 20 ~ 260
Width:	Varies (e.g., 6mm - 50mm)
Highlight:	Self Lubricating Axial Spherical bearing , Seals Axial Spherical Plain Bearings , plain bearing with 2RS protection

Product Description

GEEW60ETL-2RS

Maintenance-free radial spherical plain bearing to ISO 12240-1, dimension series W, featuring hard chromium/PTFE fabric sliding contact surface, sealed design.

Key Features

Inner ring with cylindrical extensions at each side
Outer ring with axially split, non-separable design
Outer ring: bearing steel, hardened and phosphated, sliding contact surface with PTFE fabric liner
Inner ring: bearing steel, hardened, sliding contact surface hard-chromium plated
Lip seals on both sides; NBR seal with sheet steel insert available on request (suffix: GS)

Technical Specifications

Properties

Feature	Description
Maintenance-free	Maintenance
Hard chromium/PTFE fabric	Sliding contact surface
Lip seals	Sealing
Bearing steel	Material, inner ring
Bearing steel	Material, outer ring

Dimensions

Parameter	Value	Description
d	60 mm	Bore diameter
D	90 mm	Outside diameter
B	60 mm	Width inner ring
C	36 mm	Width outer ring
dk	80 mm	Ball diameter
a	4 °	Tilt angle
d2	68 mm	Connection measure Inner ring
r1	1 mm	Chamfer dimension
r2	1 mm	Chamfer dimension

Load Capacity

Parameter	Value	Description
Cr	690 kN	Basic dynamic load rating, radial
C0r	1150 kN	Basic static load rating, radial

Weight

Parameter	Value	Description
≈m	1.11 kg	Weight

Mounting Dimensions

Parameter	Value	Description
da max	68 mm	Connection measure inner ring, max.
Da min	79.7 mm	Housing connection diameter, min.

Radial Clearance

Parameter	Value	Description
Max.	0.06 mm	Radial clearance

Tolerance

Parameter	Value	Description
dOT	0.030 mm	Bore diameter, upper tolerance
DUT	-0.015 mm	Outside diameter, lower tolerance
BUT	-0.3 mm	Inner ring width, lower tolerance
CUT	-0.4 mm	Outer ring width, lower tolerance

Temperature Range

Parameter	Value	Description
Tmin	-30 °C	Operating temperature min.
Tmax	130 °C	Operating temperature max.

Tag:

Place of Origin:	Shanghai, China
Brand Name:	SYX
Certification:	ISO/TS 16949: 2009
Model Number:	GEEW60ETL-2RS

Minimum Order Quantity:	100 pcs
Packaging Details:	wooden pallet
Delivery Time:	30 working days
Payment Terms:	T/T,L/C,Western Union
