Name: SYX GF32LO Hydraulic Cylinder Rod Ends With Welding Shank INA GF32LO
Brand: Shanghai Yongxing Bearing Manufacturing Co., Ltd.
SKU: GF32LO
Price: 3.66 USD
Availability: InStock

Detail Information

Housing Material:	C45	Inner Ring Material:	GCr15
Outer Ring Material:	GCr15	Weight:	1.16 Kg/pc
Bearing:	GE32LO	Application:	Hydraulic Cylinder
Housing Material:	C45	Inner Ring Material:	GCr15
Outer Ring Material:	GCr15	Weight:	1.16 Kg/pc
Bearing:	GE32LO	Application:	Hydraulic Cylinder
Highlight:	INA GF32LO hydraulic cylinder rod ends , welding shank spherical plain bearing , INA GF32LO rod ends

Product Description

SYX GF32LO Hydraulic Cylinder Rod Ends with Welding Shank

SYX hydraulic cylinder rod ends with welding shank are precision-engineered components designed for demanding hydraulic applications. These rod ends combine a robust rod end housing with a radial spherical plain bearing, secured in place by snap rings for reliable performance.

Product Design & Construction

Available in two primary configurations: rod ends with welding shank and rod ends with locking slot. The welding shank variant is manufactured from weldable steel and features two shank profiles - prismatic and cylindrical. The cylindrical shank includes an elastic pin at the base for simplified positioning and alignment during installation.

Rod ends with locking slot are typically constructed from carbon steel or spheroidal graphite cast iron. These feature female threading in the rod end body and are supplied with fastening screws for secure mounting.

Lubrication & Performance

Hydraulic rod ends support periodic re-lubrication through integrated oil cups or via holes in the rod end body. The steel-to-steel construction provides exceptional wear resistance, while the high-strength sliding surfaces make these bearings ideal for applications involving heavy alternating loads or significant static loads.

Technical Specifications

Model	d (mm)	B (mm)	dk (mm)	C1 (mm)	d2 (mm)	h (mm)	l2 (mm)	rs (mm)	Dynamic Load (KN)	Static Load (KN)	≈a"	Weight (kg)
GF20LO	20	20	29	19	50	38	63	0.3	30	67	4	0.370
GF25LO	25	25	35.5	23	55	45	72.5	0.6	48	69	4	0.540
GF32LO	32	32	43	27	70	65	100	0.6	65	168	4	1.160
GF40LO	40	40	53	35	100	69	119	0.6	99	305	4	2.570
GF50LO	50	50	66	40	123	88	149.5	0.6	156	441	4	4.500
GF63LO	63	63	83	50	145	107	179.5	1	253	591	4	7.140
GF70LO	70	70	92	55	164	115	197	1	313	724	4	10.860
GF80LO	80	80	105	60	180	141	231	1	400	804	4	15.830
GF90LO	90	90	115	65	226	150	263	1	488	1340	4	24.000
GF100LO	100	100	130	70	250	170	295	1	607	1516	4	33.440
GF110LO	110	110	140	80	295	185	332.5	1	654	2340	4	49.460

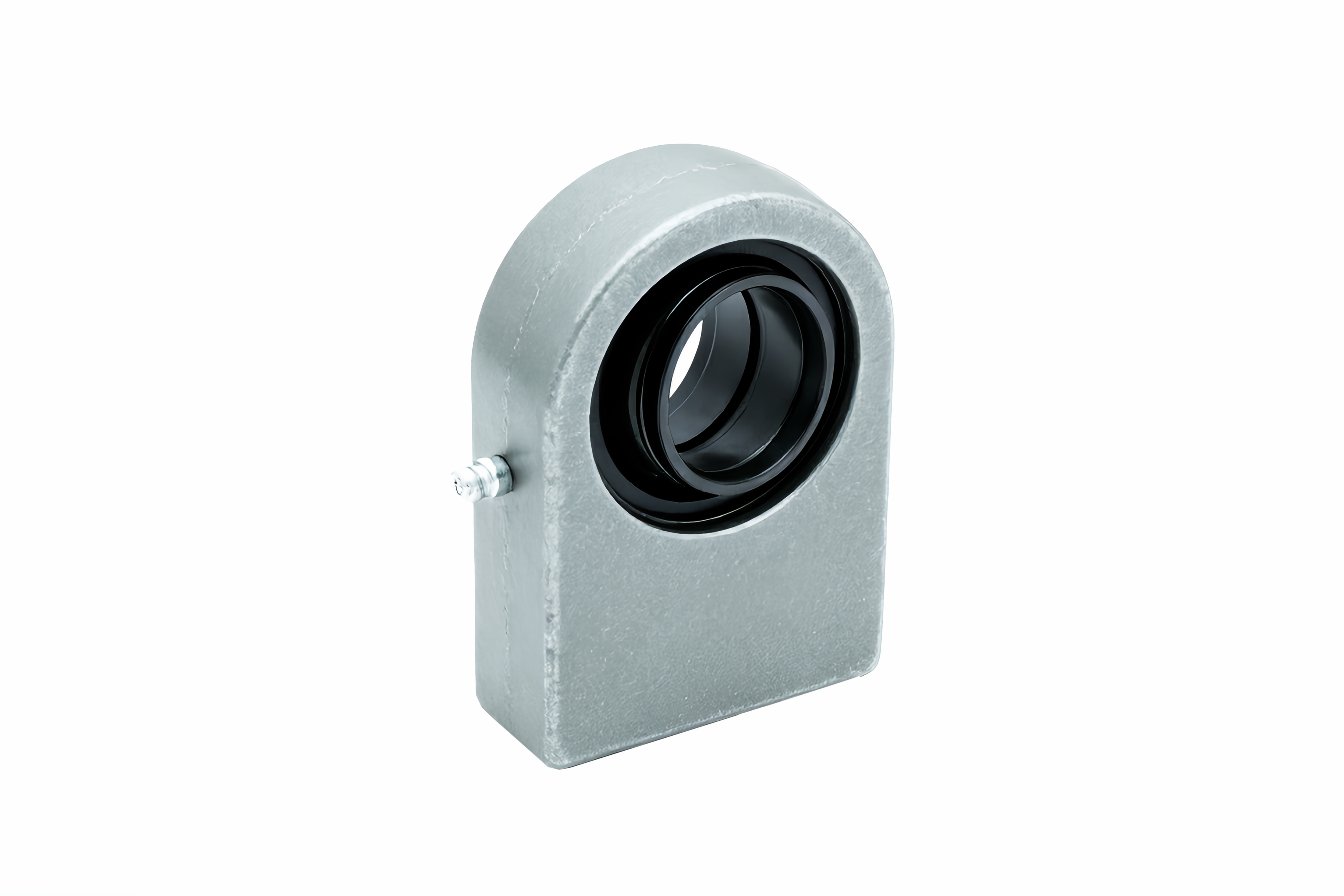

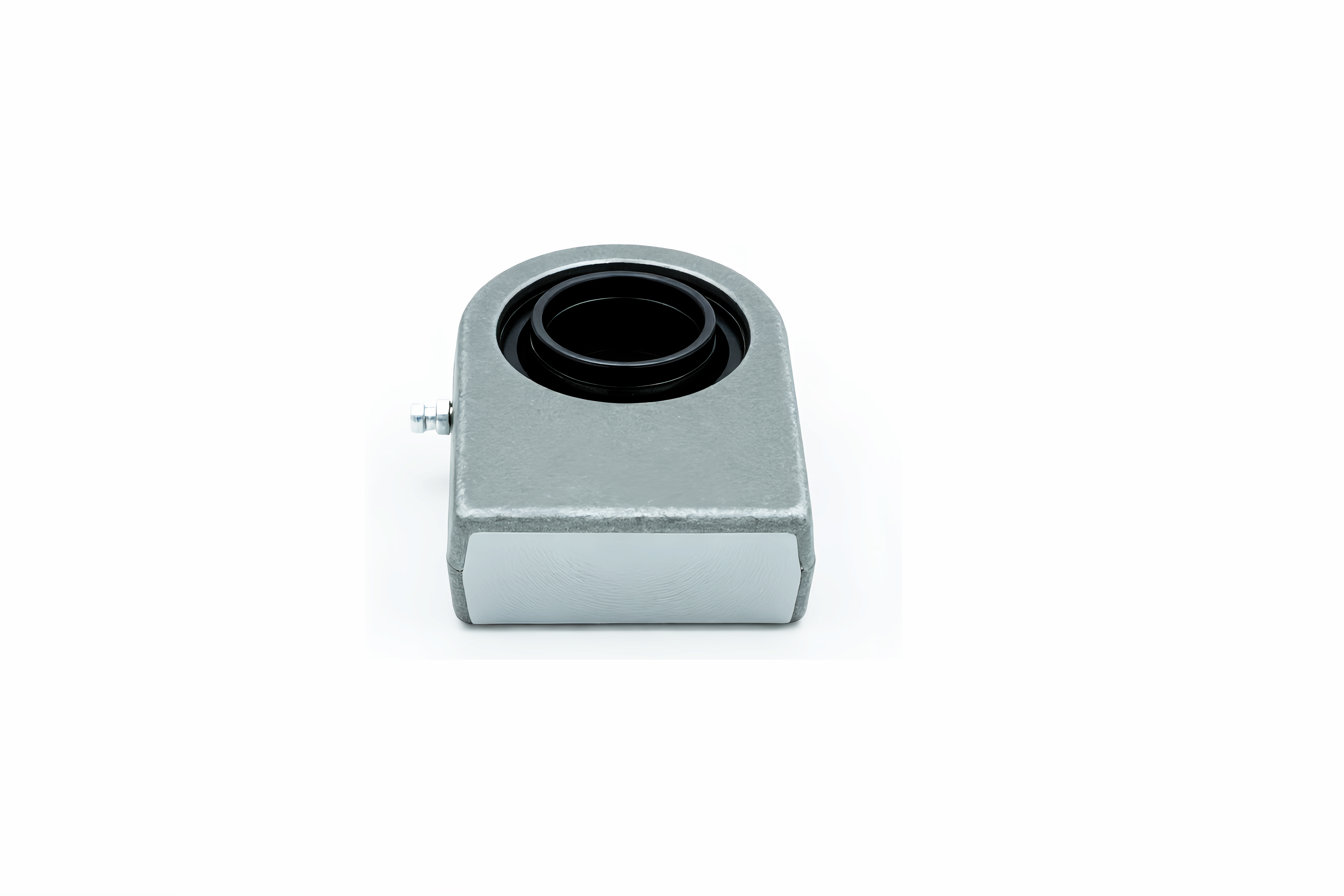

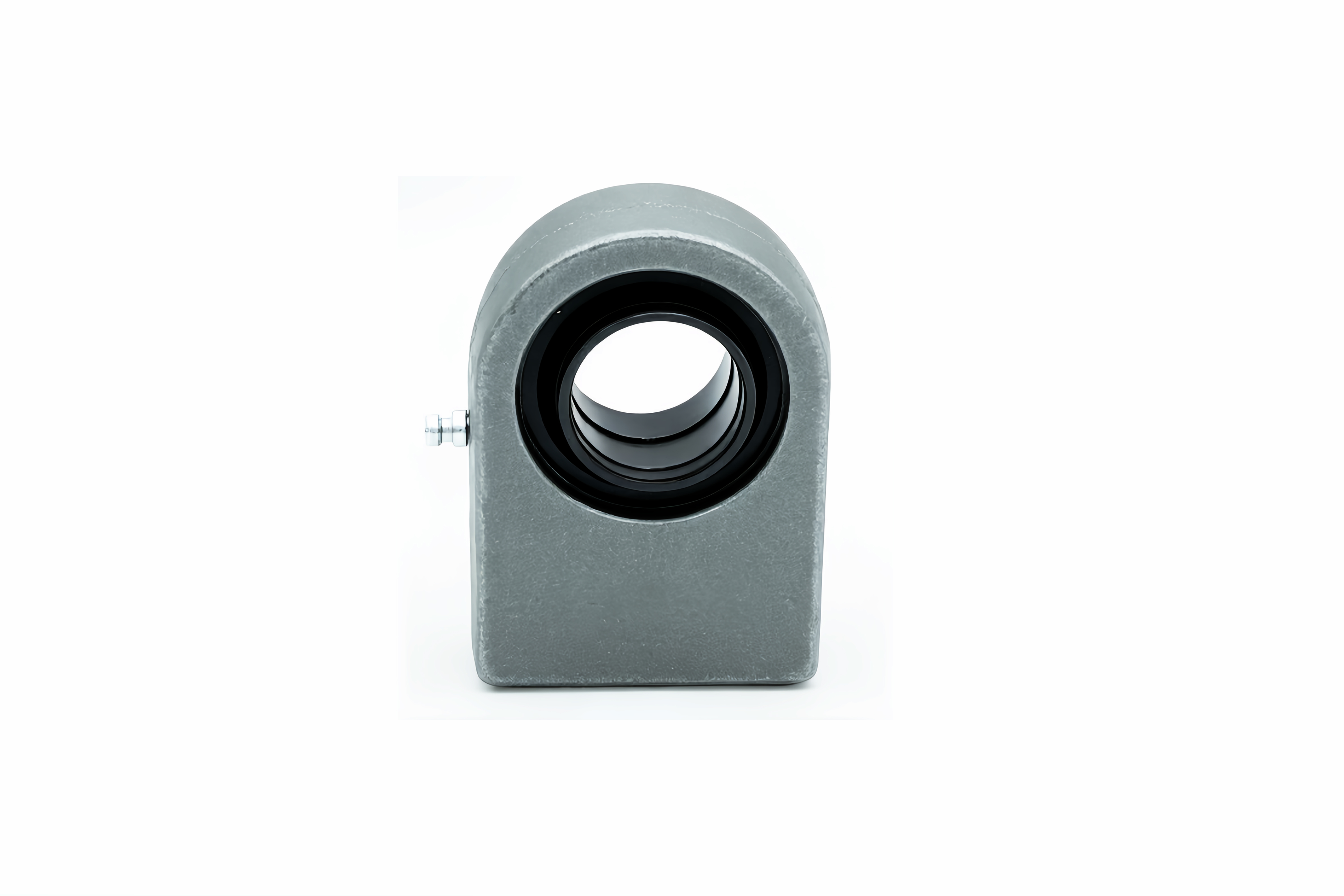

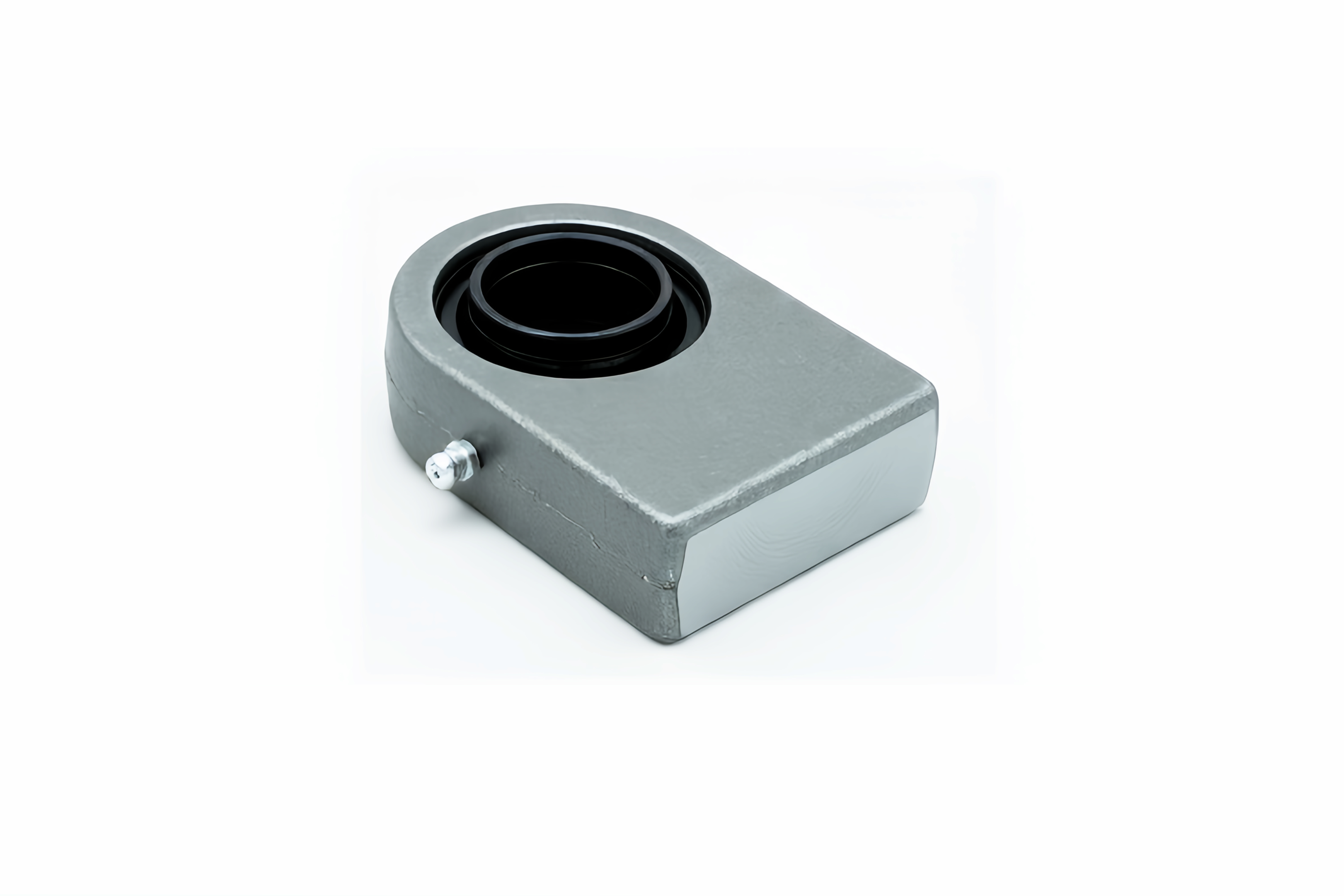

Product Images

Key Specifications

Inner Bore Diameter Range: 20 mm to 110 mm

GF32LO Static Load Rating: 168 KN

GF32LO Dynamic Load Rating: 65 KN

Tag:

Place of Origin:	Shanghai
Brand Name:	SYX
Certification:	IATF 16949:2016
Model Number:	GF32LO

Minimum Order Quantity:	50
Price:	3.66 usd/pc to 3.84 usd/pc
Packaging Details:	neutral packing
Delivery Time:	30 working days
Payment Terms:	T/T
