PHS Spherical Rod End Bearing Corrosion Resistant Bronze Sliding Surface D 5mm-35mm

Product Review

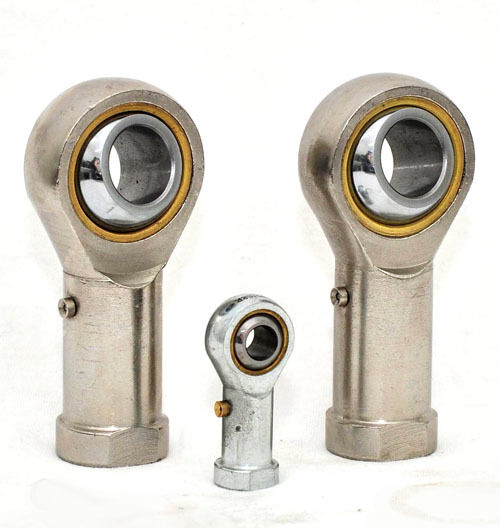

PHS Rod End Bearing - Corrosion Resistant Spherical Rod Equivalent to GIKR ...PB INA Sliding surface: Steel/Bronze d:5mm-35mm

PHS bearings are a series of rod end bearings​ (also known as spherical plain bearings ) designed for high-precision articulation and load transfer in mechanical linkages. They are widely recognized for their robust construction and ability to accommodate misalignment.

Overall Performance:

• High Precision:​ Known for tight tolerances (e.g., axial clearance within ±0.02mm), ensuring smooth, low-friction movement without play or backlash .

• Durability:​ Constructed from hardened bearing steel (e.g., GCr15 or 52100) with advanced heat treatment, providing excellent wear resistance and a long service life, even under high-frequency oscillating motion .

• Stability:​ Users report exceptional stability in applications like automation equipment and robotics, with no loosening or abnormal noise after extended use .

Key Features

1. Self-Aligning Design:​ The spherical inner ring allows for angular misalignment compensation (typically up to ±15°), enabling smooth rotation and oscillation even when components are not perfectly aligned .

2. High Load Capacity:​ Engineered to withstand extreme radial, axial, and combined loads, making them suitable for heavy machinery and hydraulic systems .

3. Self-Lubricating/PTFE Liner:​ Many models feature a PTFE (Teflon) or composite liner, allowing for maintenance-free operation without the need for external lubrication. This is ideal for applications where re-greasing is difficult or where contamination must be avoided .

4. Corrosion & Wear Resistance:​ Available in materials like chrome steel, stainless steel, or with special coatings (e.g., zinc-nickel) to resist rust and wear in harsh environments .

5. Easy Installation:​ Features a female (internal) thread design (M5, M6, M8, etc.), which simplifies mounting onto rods or shafts. Some variants also offer left-hand threads for specialized linkages .

Application

PHS rod end bearings are versatile components used across various industries for connecting rods, linkages, and control arms. Common applications include:

• Automotive & Transportation:​ Steering linkages, suspension systems, and throttle controls .

• Industrial Automation:​ Robotic arms, actuator joints, packaging machinery, and conveyor systems .

• Hydraulic & Pneumatic Systems:​ Connecting rods for cylinders and actuators .

• Heavy Machinery:​ Construction equipment (excavators), agricultural machinery, and material handling systems .

• Aerospace & Marine:​ Control linkages and systems requiring high reliability and corrosion resistance .

FAQ (Frequently Asked Questions)

Q1: Do PHS bearings require regular lubrication?

A:​ Models with PTFE liners​ are designed for maintenance-free operation and do not require regular lubrication. Standard steel-on-steel models may require periodic greasing depending on the operating environment .

Q2: What is the difference between PHS and other rod end series?

A:​ The "PHS" designation typically refers to a specific series with a female thread and a standardized size range (e.g., PHS5, PHS8, PHS10). It is often compared to series like "POS" (male thread) or "K" series, with the main difference being the thread type and housing design .

Q3: Can PHS bearings handle high temperatures?

A:​ Standard models typically operate in a range of -20°C to +80°C. For higher temperatures, specialized high-temperature variants with different materials or lubricants are required .

Q4: How do I select the right size?

A:​ Selection is based on the bore diameter (d) and thread size (e.g., M8x1.25). Ensure the chosen size matches the load requirements and the diameter of the connecting rod or shaft .

Q5: Are they suitable for high-speed rotation?

A:​ PHS bearings are primarily designed for oscillating motion​ and slow rotation. They are not typically recommended for continuous high-speed rotation like ball bearings, as this can lead to accelerated wear of the spherical surface .
