GEBK20S Series Spherical Plain Bearing Hard Chromium Plating

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	SYX
Certification:	IATF 16949: 2016
Model Number:	GEBK5S, GEBK6S, GEBK8S, GEBK10S, GEBK12S, GEBK16S, GEBK18S, GEBK20S, GEBK22S, GEBK25S, GEBK28S, GEBK30S

Minimum Order Quantity:	100PCS
Price:	US$0.5 - US$20.00
Packaging Details:	Regular packing +wooden pallet/plywood pallet
Delivery Time:	30 working days
Payment Terms:	L/C,T/T
Supply Ability:	100000pcs per week

Get Best Price

Chat Now

Detail Information

Applications:	Hydraulic And Pneumatic Cylinders	Package:	Roll Pack + Carton Box
Number Of Row:	Single Row	Hs Code:	8483300090
Installationmethod:	Press Fit / Shrink Fit	Oil Lubrication Methods:	Oil Drip Feed
Precision Rating:	P5,P4	Finishing:	Black, Antioxidant
Applicable Industries:	Machinery Repair Shops	Type:	Radial / Thrust / Angular Contact
Inner Diameter:	20 Mm	Cage Material:	Nylon, Steel, Brass
Highlight:	GEBK20S spherical plain bearing hard chromium , radial spherical plain bearing with warranty , hard chromium plating spherical bearing

Product Description

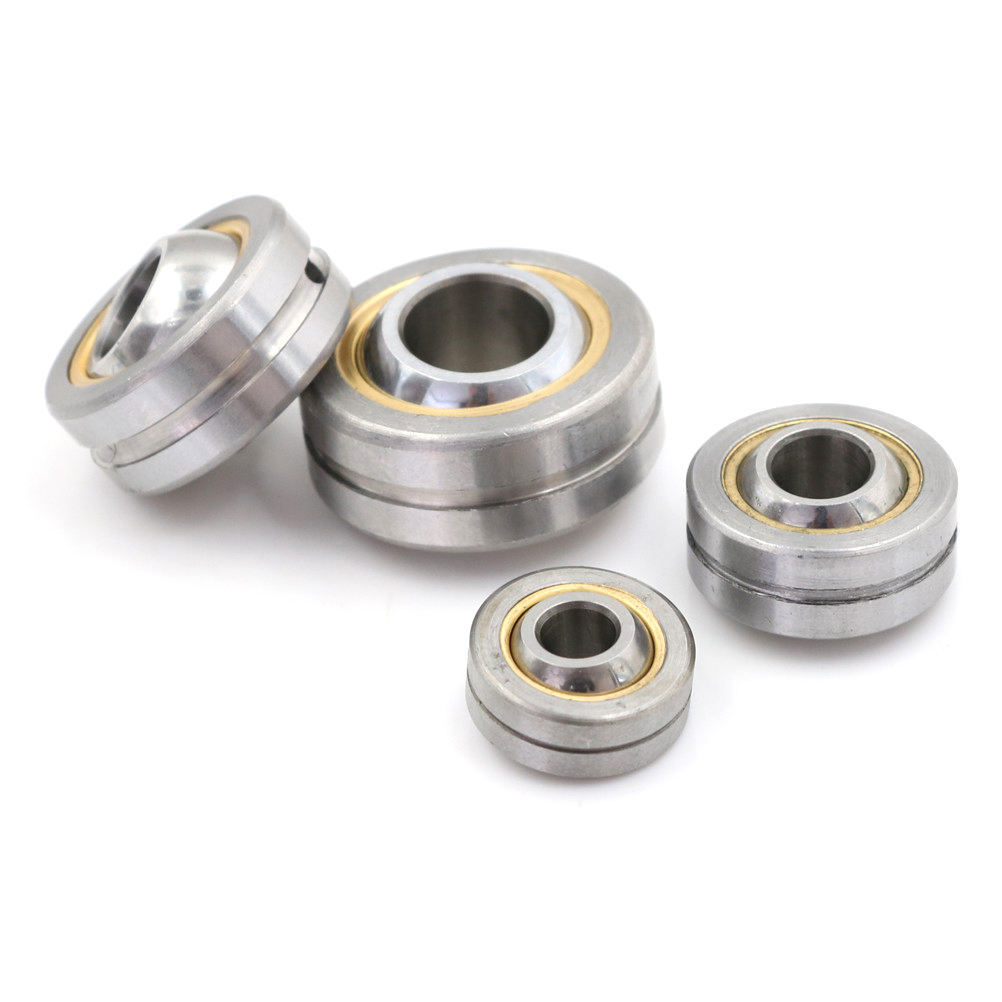

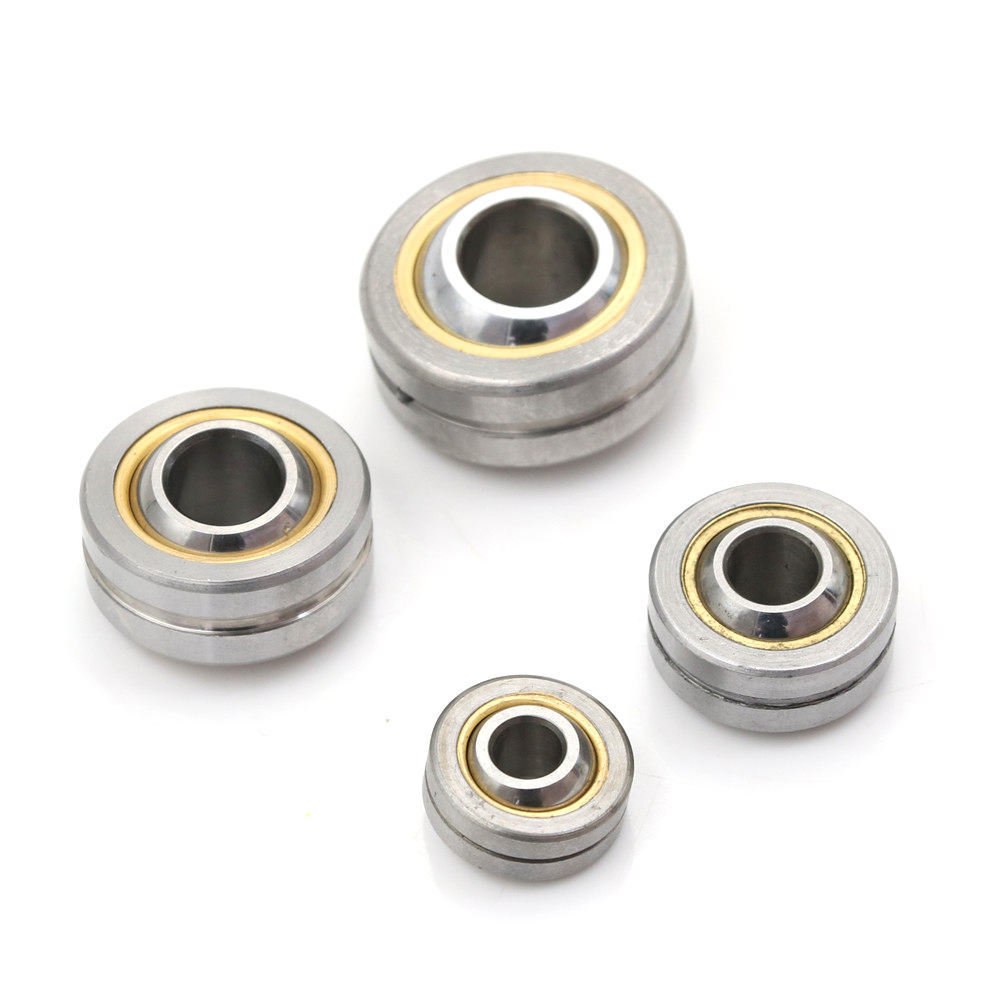

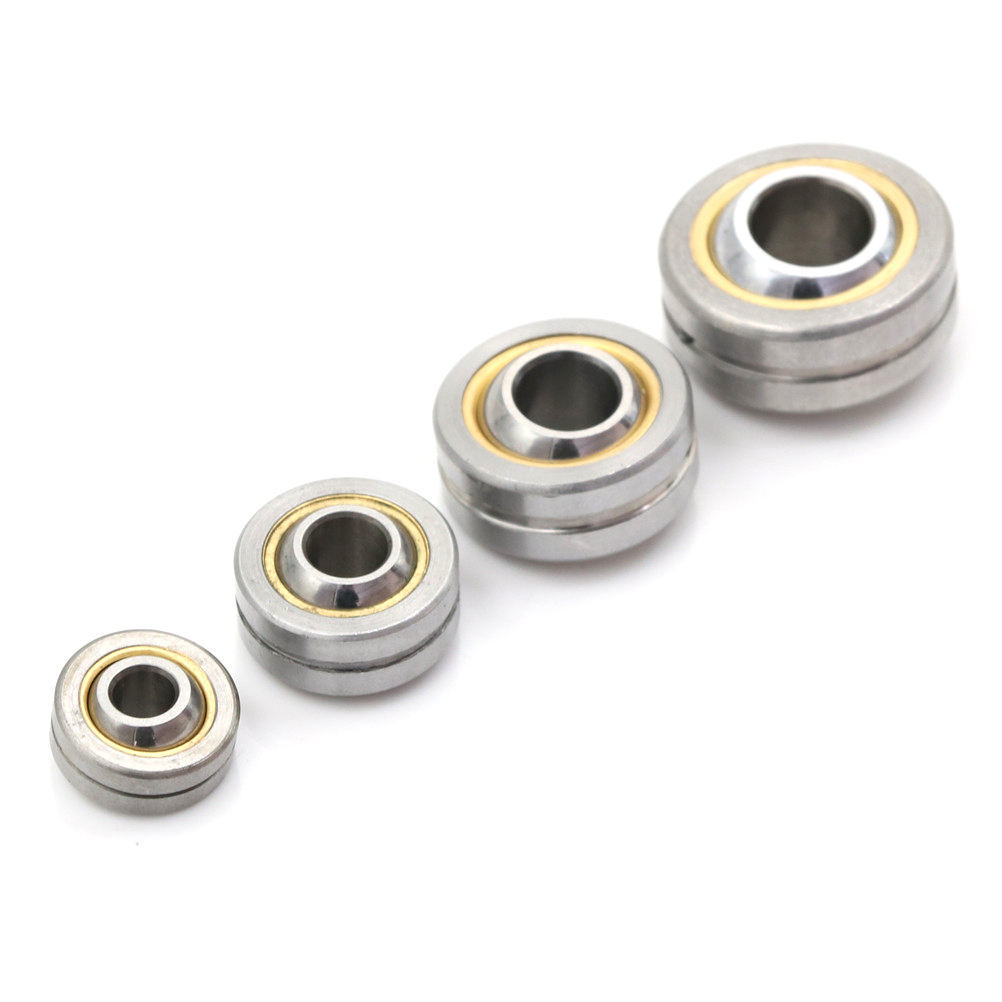

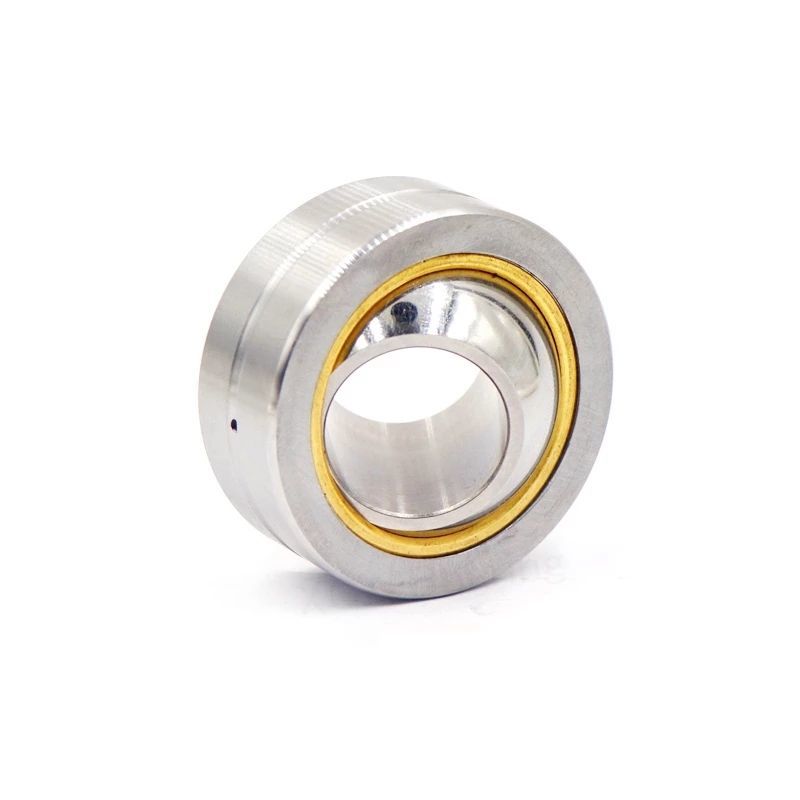

GEBK20S Series Bearings

Product Overview

High-performance bearings featuring a carbon steel outer ring with bronze liner and hardened carbon chromium steel inner ring. The sliding surface is treated with hard chromium plating for enhanced durability and performance.

Key Feature

Carbon steel outer ring with bronze liner for optimal performance
Hardened carbon chromium steel inner ring for superior strength
Hard chromium plating on sliding surface for enhanced durability
Available in multiple sizes from 5mm to 30mm bore diameter

Technical Specifications

Bearing Number	d (mm)	D (mm)	B (mm)	C (mm)	dk (mm)	rs min (mm)	r1s min (mm)	α˚ ≈	Dynamic Load (kN)	Static Load (kN)	Weight ≈ (kg)
GEBK5S	5	16	8	6	11.112	0.3	0.3	13	3.3	7.8	0.009
GEBK6S	6	18	9	6.75	12.7	0.3	0.3	13	4.3	9.8	0.013
GEBK8S	8	22	12	9	15.88	0.3	0.3	14	6.8	16	0.024
GEBK10S	10	26	14	10.5	19.05	0.3	0.6	14	10	23	0.039
GEBK12S	12	30	16	12	22.23	0.3	0.6	13	13	31	0.058
GEBK14S	14	34	19	13.5	25.4	0.3	0.6	16	17	40	0.084
GEBK16S	16	38	21	15	28.58	0.3	0.6	15	21	50	0.118
GEBK18S	18	42	23	16.5	31.75	0.6	0.6	15	26	61	0.16
GEBK20S	20	46	25	18	34.93	0.6	0.6	15	31	73	0.21
GEBK22S	22	50	28	20	38.1	0.6	0.6	15	38	88	0.26
GEBK25S	25	56	31	22	42.86	0.6	0.6	15	47	110	0.39
GEBK28S	28	62	35	25	47.63	0.6	0.6	15	59	138	0.50
GEBK30S	30	66	37	25	50.8	0.6	0.6	17	63	148	0.61
