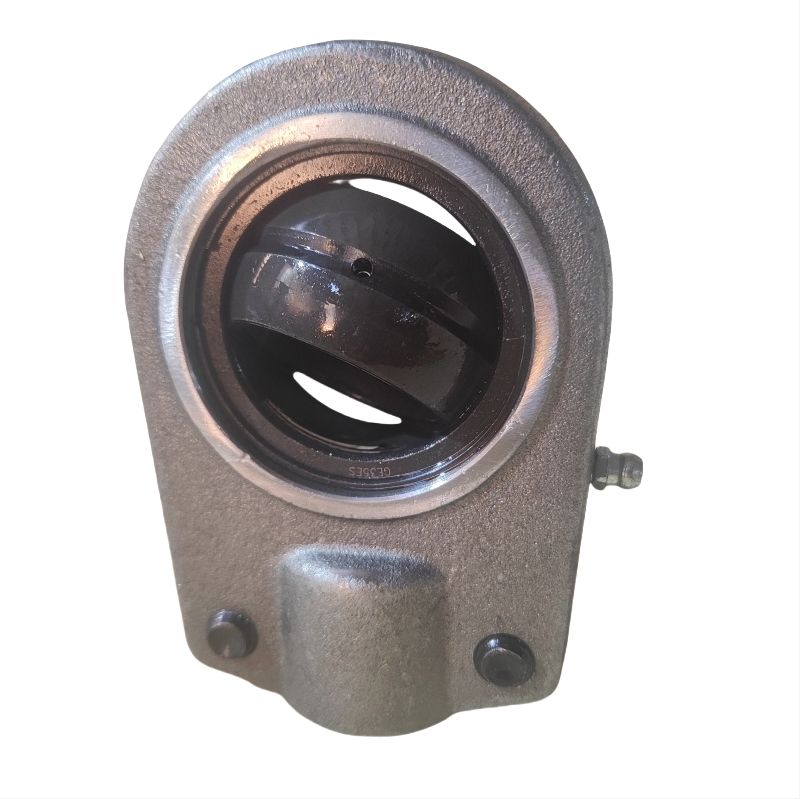

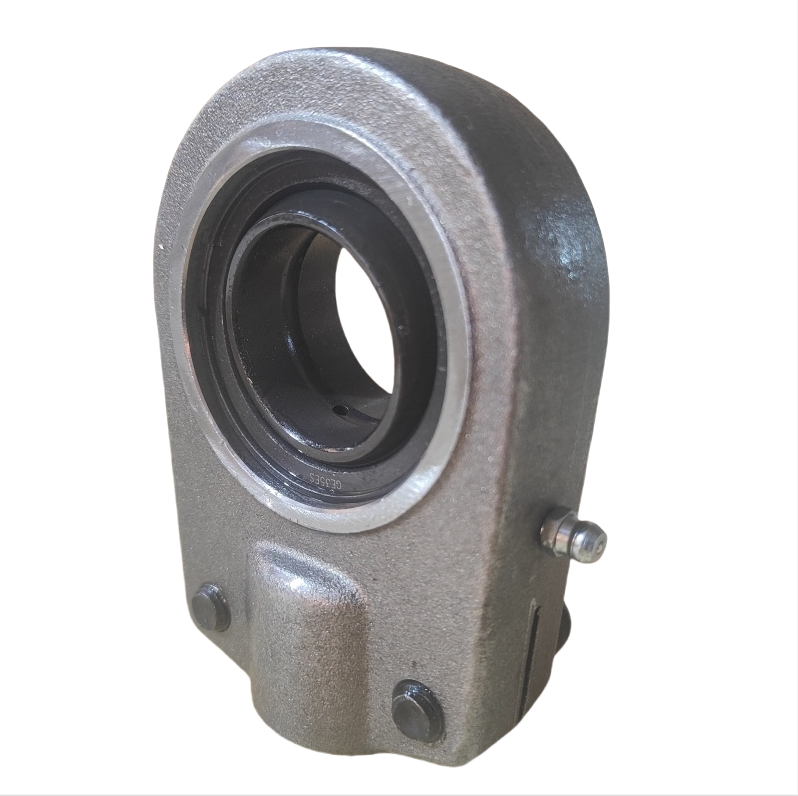

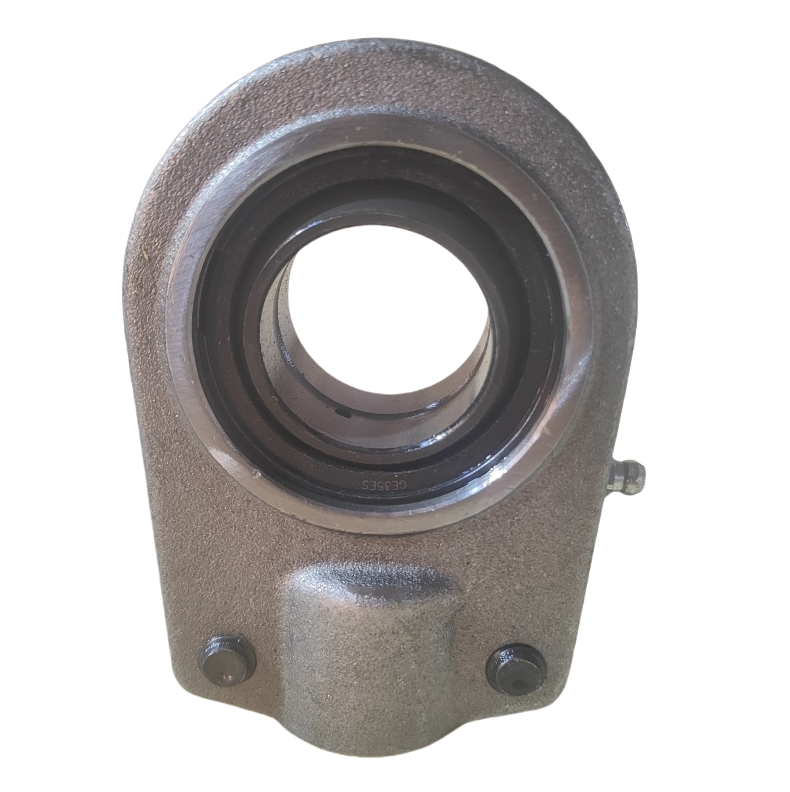

GIHR-K...DO Relubricated Hydraulic Rod End Bearing with Socket Screws

GIHR-K..DO bearing is a type of rod-end joint bearing widely used in hydraulic systems. It is primarily employed in construction machinery, hydraulic cylinders, and automated equipment, featuring high load-bearing capacity, wear resistance, and self-aligning properties.

The GIHR-K..DO series features a locking slot design, comprising a rod end housing and radial spherical plain bearing GE..ES. The spherical plain bearing is securely fixed within the housing using snap rings. Rod ends are manufactured from carbon steel or spheroidal graphite cast iron.

Thread closure is achieved through slotted shark design, with thread clamping facilitated by two hexagon socket screws in the GIHR-K..DO series (socket screws are not included in GIHR..DO series). All models support relubrication via nipple.

Product Specifications:

Bearing Code		Dimensions (mm)												Screw	Load Rating kN		a°	Weight
		d	B	dk	C1	d2	G	h1	L3	L4	d4	d6	b		Dynamic	Static	a°	≈kg
		d	B	dk	max	max	6H	h1	min	max	d4	d6	b		Dynamic	Static	≈
GIHR20DO	GIHR-K20DO	20	19	29	16	56	M16x1.5	50	17	80	25	46	20	M8x20	30	81	9	0.440
GIHR25DO	GIHR-K25DO	25	23	35.5	20	56	M16x1.5	50	17	80	25	46	21	M8x20	48	72	7	0.47
GIHR30DO	GIHR-K30DO	30	28	40.7	22	64	M22x1.5	60	23	94	32	50	26	M8x25	62	106	6	0.77
GIHR35DO	GIHR-K35DO	35	30	47	25	78	M28x1.5	70	29	112	40	66	28	M10x30	79	153	6	1.24
GIHR40DO	GIHR-K40DO	40	35	53	28	94	M35x1.5	85	36	135	49	76	33	M10x35	99	250	7	2.12
GIHR50DO	GIHR-K50DO	50	40	66	35	116	M45x1.5	105	45	168	61	90	37	M12x40	156	365	6	3.740
GIHR60DO	GIHR-K60DO	60	50	80	44	130	M58x1.5	130	59	200	75	120	46	M16x45	245	400	6	6.490
GIHR70DO	GIHR-K70DO	70	55	92	49	154	M65x1.5	150	66	232	86	130	51	M16x50	313	540	6	9.880
GIHR80DO	GIHR-K80DO	80	60	105	55	176	M80x2	170	81	265	105	160	55	M20x55	400	670	6	14.200
GIHR90DO	GIHR-K90DO	90	65	115	60	206	M100x2	210	101	323	124	180	60	M20x60	488	980	5	23.500
GIHR100DO	GIHR-K100DO	100	70	130	70	231	M110x2	225	111	360	138	200	65	M24x65	607	1120	7	32.140
GIHR110DO	GIHR-K110DO	110	80	140	70	266	M120x3	265	125	407	152	220	74	M24x80	654	1700	6	47.600
GIHR120DO	GIHR-K120DO	120	90	160	80	340	M130x3	310	135	490	172	257	84	M24x80	950	2900	6	72.000

Product Features

High Structural Rigidity: Welded earrings create integrated connections that are more secure than bolted connections, enhancing overall structural rigidity and torsional resistance
Flexible Installation: Earring design allows installation from multiple angles and supports various connection methods including single earrings, double earrings, and flanges to accommodate different cylinder layouts
Wear Resistant & Low Maintenance: Composite materials on inner and outer spherical surfaces enable self-lubrication during movement, reducing external lubrication requirements in frequent refueling conditions
Cost Effective: Simple structure and easy installation reduce wearing part quantities and assembly time, lowering overall procurement and maintenance costs

Usage Questions & Answers

Where is this type of bearing used?

Widely used in various mechanical systems requiring strong load-bearing capacity including hydraulic cylinders, mining machinery, mechanical engineering, construction machinery, and production lines.

Why choose hydraulic cylinder bearings over other bearing types?

These bearings feature weldable faces that can be firmly welded, serving as reliable connections between cylinders and structural components.

How to choose an ideal bearing?

Ensure inner diameter (d), outer diameter (D), and thickness (B) match shaft diameter and installation space requirements
Verify earring bore diameter and welding dimensions comply with design drawings to ensure welding strength and positioning accuracy
Select appropriate clearance: Choose larger clearance (C3 clearance) for high-temperature or high-speed working conditions to prevent jamming from thermal expansion

How to install correctly?

Cold Installation (Small Sizes)

Apply uniform force to inner or outer ring using a sleeve and pressing machine. Insert bearing into shaft or bearing seat without directly striking with a hammer. Apply small amount of lubricating oil on contacting surfaces to reduce friction.

Hot Installation (Larger Sizes)

Heat bearing to 80-100℃ before inserting onto shaft. Use induction heaters or oil bath heating for even heat distribution. Avoid heating bearings with seals or dust covers above 80℃ to prevent seal material damage.

Purchasing Guide

Loading Type and Force: Determine radial load, axial load, or composite load, then estimate maximum force value. For high-impact or heavy-load scenarios (excavators, rollers), recommend self-aligning roller bearings or welded joint bearings with thickened outer rings
Motion Form: Consider swing angle and frequency. Small-angle high-frequency swing suits self-lubricating joint bearings (GK series). Choose sealed radial joint bearings for large-angle low-frequency conditions
Environmental Conditions: Select bearings with double-sided sealing (2RS), surface phosphating, or galvanizing treatment for harsh environments including high temperature, humidity, and dusty areas
Installation Requirements: Accurately measure installation space and shaft diameter according to standard size charts
