Detail Information

Type:	Rod End,sealed Type,Spherical Plain Bearings,open Type,Roller	Precision Rating:	P0,P0 P6 P5 P4 P2,High Precision,P6,P5
Bore Size:	5 - 30 Mm,8 - 24 Mm,4.826 - 25.40 Mm,45 - 85 Mm,0.5 - 6 Inch	Material:	Chrome Steel,Steel/Steel And Steel/PTFE Fabric Material,Chrome/stainless,Carbon Steel,bearing Steel
Service:	OEM Customized Services,OEM Or Private Label Accepted.	Feature:	Self-lubricated,High Temperature Resistance .carrying Capability,no Noise,High Speed,low Noise
Application:	Industry,engineering,Machinery,Agricultural,Engineering Hydraulic Cylinders	Package:	Plastic Bag+ Box+ Carton + Pallet,single Box Or As Your Requirments,industrial Package
Weight:	0.006-0.38 Kg,0.015kg,4.65kg	Oem:	ACCEPT,Acceptable,welcome,Allowed
Sample:	Available,Free Sample Available,free	Size:	12x22x10mm,7010549mm,10015090mm,8168mm
Product Name:	Spherical Plain Bearing Ge,GE15ES Radial Spherical Plain Bearing Used In Shock Absorbers,plain Shaft Bearing	Sliding Contact Surfaces:	Steel / PTEF Composite,Steel / PTFE,Steel/PTFE
Stock:	Rich,Ready	Packing:	Individual Or Industrial,Netual Packing,Industrial Packing,As Your Requirement
Port:	Shanghai ; Ningbo,Shanghai;Ningbo	Cage:	Steel,Nylon Cage,brass,Steel Cage.Brass Cage.Nylon Cage
Outer Race:	Carbon Steel With PTFE Composite,Carbon Steel
Highlight:	Sealed Spherical Plain Bearing , Steel Sliding Contact Surface Spherical Bearing , Lubricating Groove Self Aligning Bearing

Product Description

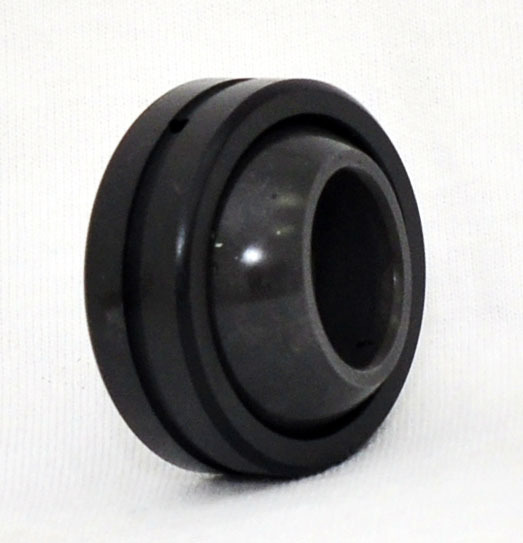

GEG...ES 2RS Spherical Plain Bearing

Product Specifications

Sliding contact surface: steel/steel
Bearing type with "S" designation features lubricating groove and holes in both outer and inner rings
Bearings type with "2RS" designation include seals on both sides

Bearing number		Dimensions 　　　　　　　 mm								Load ratings kN		Weight ≈kg
Bearing number		d	D	B	C	dk	rs min	r1s min	α˚ ≈	Dynamic	Static	Weight ≈kg
GEG4E		4	14	7	4	10	0.3	0.3	20	3.4	17	0.005
GEG5E		5	16	9	5	13	0.3	0.3	21	5.5	27	0.009
GEG6E		6	16	9	5	13	0.3	0.3	21	5.5	27	0.008
GEG8E		8	19	11	6	16	0.3	0.3	21	8.1	40	0.014
GEG10E		10	22	12	7	18	0.3	0.3	18	10	53	0.021
GEG12E		12	26	15	9	22	0.3	0.3	18	16	84	0.036
GEG15ES	GEG15ES-2RS	15	30	16	10	25	0.3	0.3	16	21	106	0.048
GEG17ES	GEG17ES-2RS	17	35	20	12	29	0.3	0.3	19	30	146	0.080
GEG20ES	GEG20ES-2RS	20	42	25	16	35.5	0.3	0.6	17	48	240	0.152
GEG25ES	GEG25ES-2RS	25	47	28	18	40.7	0.6	0.6	17	62	310	0.199
GEG30ES	GEG30ES-2RS	30	55	32	20	47	0.6	1	17	79	399	0.296
GEG35ES	GEG35ES-2RS	35	62	35	22	53	0.6	1	16	99	495	0.402
GEG40ES	GEG40ES-2RS	40	68	40	25	60	0.6	1	17	127	637	0.535
GEG45ES	GEG45ES-2RS	45	75	43	28	66	0.6	1	15	156	780	0.698
GEG50ES	GEG50ES-2RS	50	90	56	36	80	0.6	1	17	245	1220	1.42
GEG60ES	GEG60ES-2RS	60	105	63	40	92	1	1	17	313	1560	2.09
GEG70ES	GEG70ES-2RS	70	120	70	45	105	1	1	16	400	2000	3.01
GEG80ES	GEG80ES-2RS	80	130	75	50	115	1	1	14	488	2440	3.61
GEG90ES	GEG90ES-2RS	90	150	85	55	130	1	1	15	607	3030	5.50
GEG100ES	GEG100ES-2RS	100	160	85	55	140	1	1	14	654	3270	6.04
GEG110ES	GEG110ES-2RS	110	180	100	70	160	1	1	12	950	4750	9.74
GEG120ES	GEG120ES-2RS	120	210	115	70	180	1	1	16	1070	5350	15.1
GEG140ES	GEG140ES-2RS	140	230	130	80	200	1	1	16	1360	6800	18.9
GEG160ES	GEG160ES-2RS	160	260	135	80	225	1.1	1.1	16	1530	7650	24.8
GEG180ES	GEG180ES-2RS	180	290	155	100	250	1.1	1.1	14	2120	10600	35.9
GEG200ES	GEG200ES-2RS	200	320	165	100	275	1.1	1.1	15	2320	11600	44.9
GEG220ES	GEG220ES-2RS	220	340	175	100	300	1.1	1.1	16	2550	12700	50.9
GEG240ES	GEG240ES-2RS	240	370	190	110	325	1.1	1.1	15	3030	15190	65.3
GEG260ES	GEG260ES-2RS	260	400	205	120	350	1.1	1.1	15	3570	17850	82.0
GEG280ES	GEG280ES-2RS	280	430	210	120	375	1.1	1.1	15	3800	19100	96.6

Bearing Type & Applications

Angular contact spherical plain bearing designed for industrial applications requiring reliable performance under various load conditions.

Brand Name:	SYX
Certification:	ISO/TS 16949： 2009

Minimum Order Quantity:	100 PCS
Packaging Details:	wooden pallet
Delivery Time:	30 working days
Payment Terms:	L/C,T/T
