Name: GCr15 Material Radial Spherical Plain Bearing with Steel Sliding Contact Surfaces
Brand: Shanghai Yongxing Bearing Manufacturing Co., Ltd.
SKU: GE30ES
Price: 0.57 USD
Availability: InStock

Detail Information

Inner Ring Material:	GCr15	Outer Ring Material:	GCr15
Sliding Contact Surfaces:	Steel / Steel	Packing:	Neutral Packing Or Customerized Packing
Precision:	P0	Weight:	0.149 Kg/pc
Highlight:	GCr15 Radial Spherical Plain Bearing , Steel Surfaces Spherical Plain Bearing , GE30ES Radial Spherical Bearing

Product Description

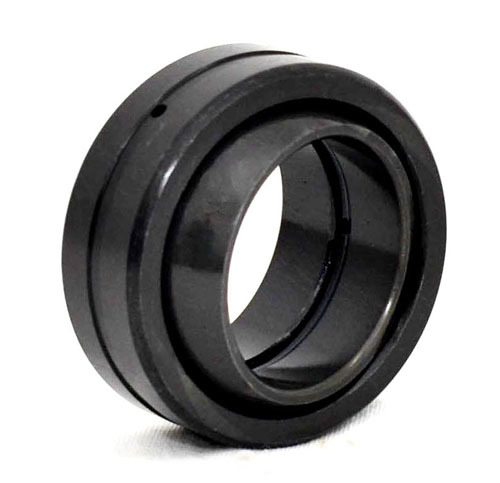

Radial Spherical Plain Bearing GE30ES - INA Brand

Radial spherical plain bearings feature an inner ring with a convex spherical outer surface and an outer ring with a corresponding concave inner surface. This design makes them ideal for applications requiring accommodation of housing misalignment, or where oscillating, recurrent tilting, or slewing movements occur at relatively slow sliding speeds.

Bearing Types

There are two main categories: spherical plain bearings requiring maintenance (steel-on-steel) and maintenance-free spherical plain bearings.

GE30ES Maintenance-Required Bearing Features

Treated with molybdenum disulphide and phosphated surface coating
Excellent wear resistance and corrosion protection
Specifically designed for heavy alternating direction loads
Ideal for shock loads and heavy static load applications
Robust steel-on-steel sliding contact surfaces

Technical Specifications

Bearing Code	d (mm)	D (mm)	B (mm)	C (mm)	dk (mm)	rs min (mm)	rls min (mm)	≈a°	Dynamic (KN)	Static (KN)	Weight (kg)
GE30ES / GE30ES-2RS	30	47	22	18	40.7	0.6	0.6	6	62	310	0.149

Complete Product Range

Bearing Code	d	D	B	C	dk	rs min	rls min	≈a°	Dynamic	Static	Weight
GE4E	4	12	5	3	8	0.3	0.3	16	2	10	0.003
GE5E	5	14	6	4	10	0.3	0.3	13	3.4	17	0.005
GE6E	6	14	6	4	10	0.3	0.3	13	3.4	17	0.004
GE8E	8	16	8	5	13	0.3	0.3	15	5.5	27	0.007
GE10E	10	19	9	6	16	0.3	0.3	12	8.1	40	0.011
GE12E	12	22	10	7	18	0.3	0.3	10	10	53	0.017
GE15ES	15	26	12	9	22	0.3	0.3	8	16	84	0.026
GE17ES	17	30	14	10	25	0.3	0.3	10	21	106	0.04
GE20ES	20	35	16	12	29	0.3	0.3	9	30	146	0.064
GE25ES	25	42	20	16	35.5	0.6	0.6	7	48	240	0.115
GE30ES	30	47	22	18	40.7	0.6	0.6	6	62	310	0.149
GE35ES	35	55	25	20	47	0.6	1	6	79	399	0.228
GE40ES	40	62	28	22	53	0.6	1	7	99	495	0.318
GE45ES	45	68	32	25	60	0.6	1	7	127	637	0.421
GE50ES	50	75	35	28	66	0.6	1	6	156	780	0.562
GE55ES	55	85	40	32	74	0.6	1	7	200	1000	0.864
GE60ES	60	90	44	36	80	1	1	6	245	1220	1.030
GE70ES	70	105	49	40	92	1	1	6	313	1560	1.570
GE80ES	80	120	55	45	105	1	1	6	400	2000	2.320
GE90ES	90	130	60	50	115	1	1	5	488	2440	2.790
GE100ES	100	150	70	55	130	1	1	7	607	3030	4.440
GE110ES	110	160	70	55	140	1	1	6	654	3270	4.830
GE120ES	120	180	85	70	160	1	1	6	950	4750	8.110
GE140ES	140	210	90	70	180	1	1	7	1070	5350	11.20
GE160ES	160	230	105	80	200	1	1	8	1360	6800	14.10
GE180ES	180	260	105	80	225	1.1	1.1	6	1530	7650	18.50
GE200ES	200	290	130	100	250	1.1	1.1	7	2120	10600	28.40
GE220ES	220	320	135	100	275	1.1	1.1	8	2320	11600	35.70
GE240ES	240	340	140	100	300	1.1	1.1	8	2550	12700	39.70
GE260ES	260	370	150	110	325	1.1	1.1	7	3030	15190	51.50
GE280ES	280	400	155	120	350	1.1	1.1	6	3570	17850	64.90
GE300ES	300	430	165	120	375	1.1	1.1	7	3800	19100	77.60

Product Images

Tag:

Place of Origin:	Shanghai,China
Brand Name:	SYX
Model Number:	GE30ES

Minimum Order Quantity:	10 pieces
Price:	0.57 usd/pc
Delivery Time:	30 work days
Payment Terms:	T/T,L/C
