Name: GE5C Self Lubricating Spherical Plain Bearing 5mm Bore Size for Automotive Industry
Brand: Shanghai Yongxing Bearing Manufacturing Co., Ltd.
SKU: GE5C
Price: 0.50 USD
Availability: InStock

Detail Information

Type:	Spherical Plain Bearings	Precision Rating:	P0
Bore Size:	5mm	Material:	Chrome Steel,Steel/Steel And Steel/PTFE Fabric Material,Chrome/stainless,Carbon Steel,bearing Steel
Service:	OEM Customized Services,OEM Or Private Label Accepted.	Feature:	Self-lubricated,High Temperature Resistance .carrying Capability,no Noise,High Speed,low Noise
Application:	Industry,engineering,Machinery,Agricultural,Engineering Hydraulic Cylinders	Weight:	0.004kgs
Sample:	Available,Free Sample Available,free	Sliding Contact Surfaces:	Steel / PTEF Composite,Steel / PTFE,Steel/PTFE
Stock:	Rich,Ready
Highlight:	5mm Bore Size Spherical Plain Bearing , Automotive Industry Spherical Plain Bearing , GE5C Self Lubricating Bearing

Product Description

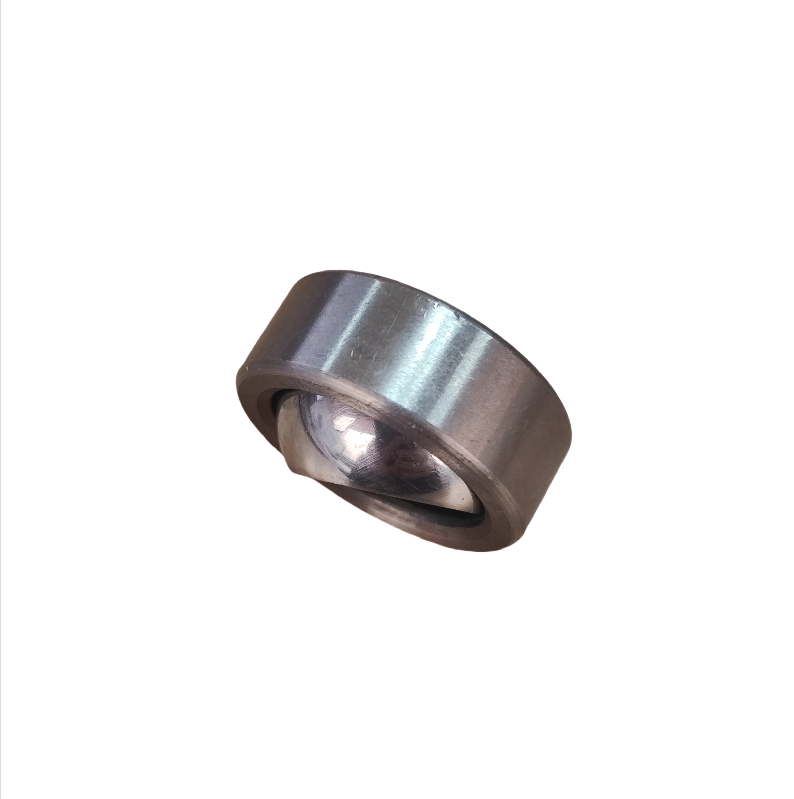

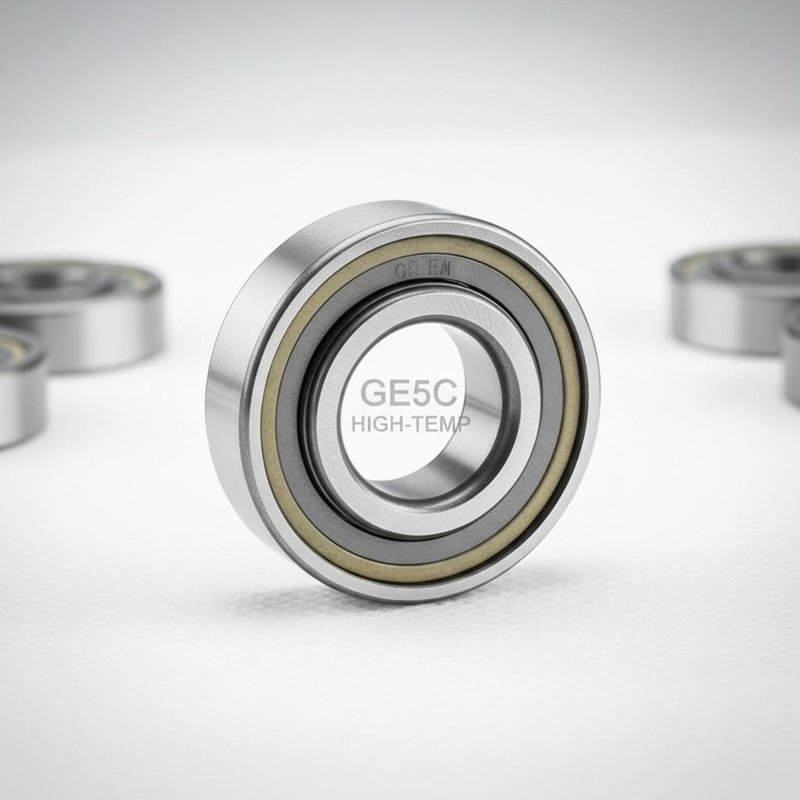

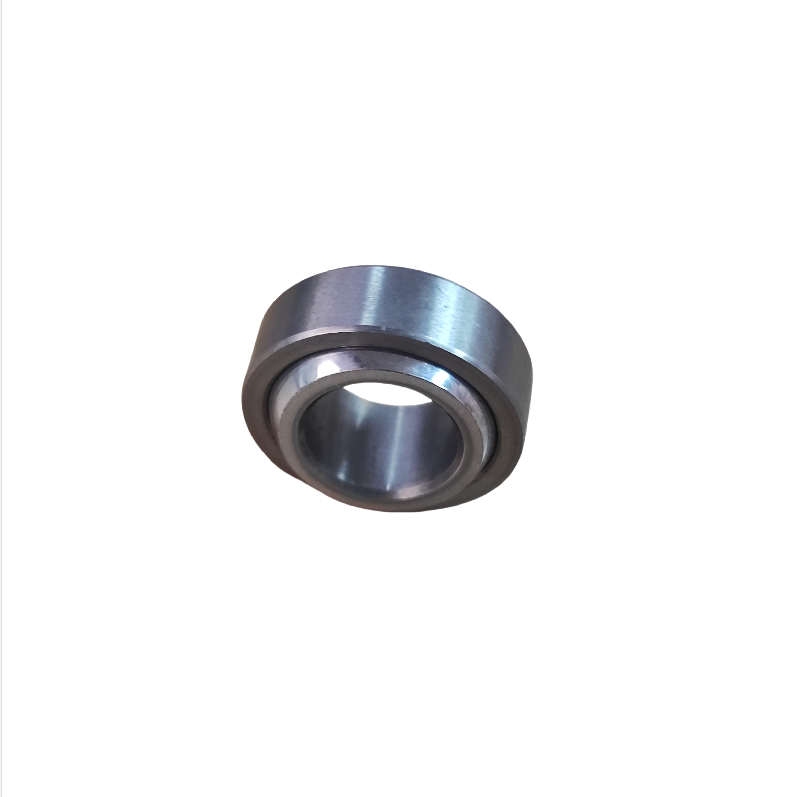

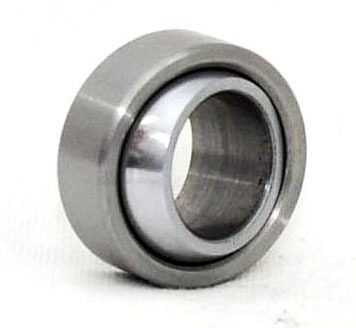

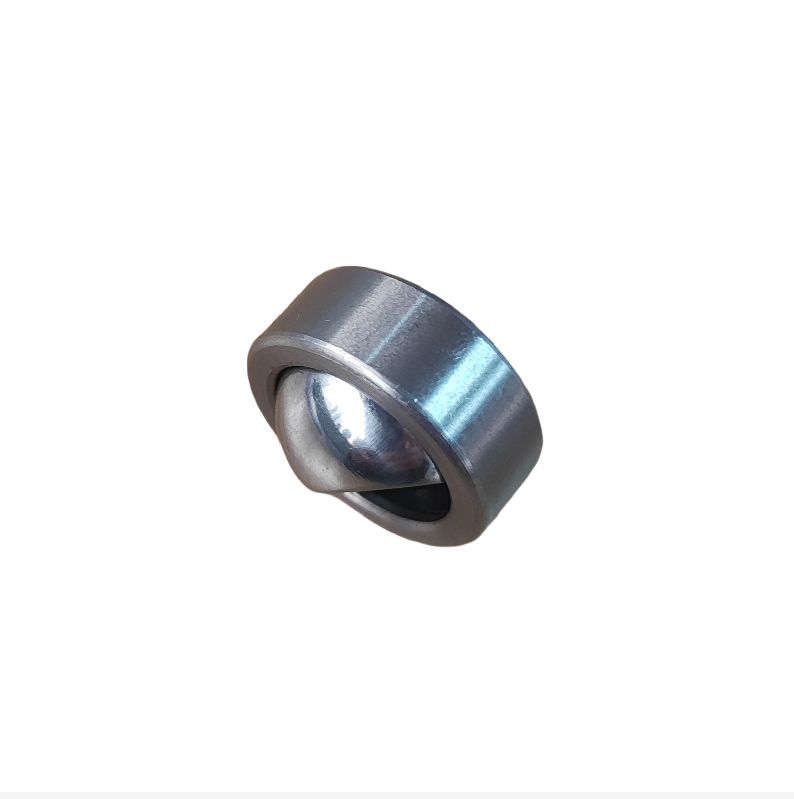

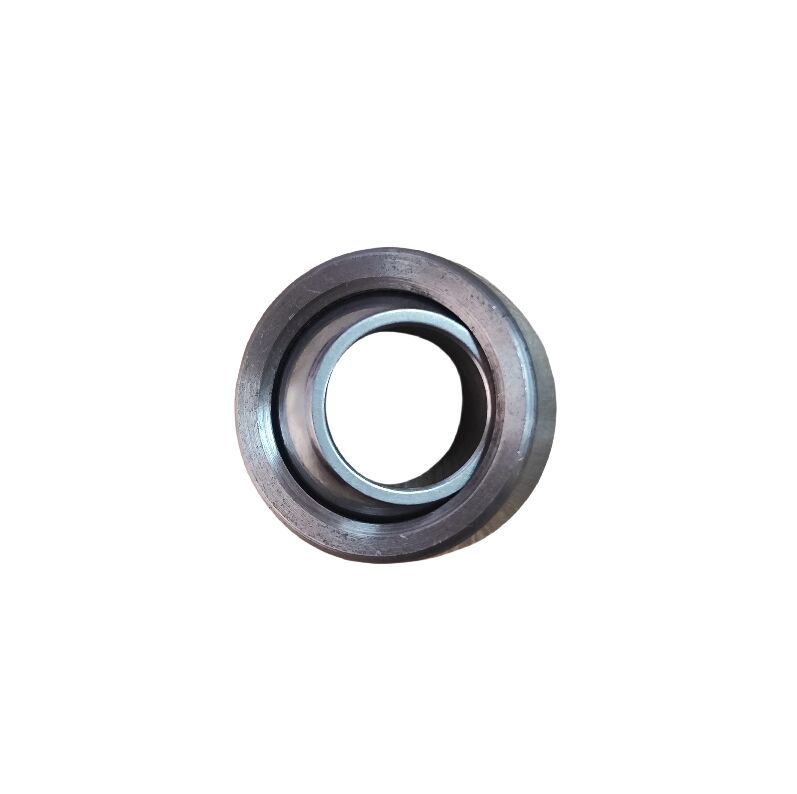

GE5C Spherical Plain Bearing - 5x14x6mm

Self-lubricating GE..C type spherical plain bearing designed specifically for the automobile industry and mechanical applications requiring radial load capacity with angular deflection.

Product Overview

The GE5C radial spherical plain bearing is a specialized sliding bearing that combines rotational flexibility with radial load-bearing capacity. This innovative design is ideal for mechanical systems requiring simultaneous handling of radial loads and angular deflection.

Material Specifications

Outer Ring: Features spherical inner surface with inner spherical structure
Inner Ring: Spherical outer surface embedded with self-lubricating composite material (steel/sintered copper + PTFE)

Bearing number	Dimensions 　　　　　　mm										Load ratings kN		Weight ≈kg
Bearing number	d		D		B	C	dk	rs min	r1s min	α˚ ≈	Dynamic	Static	Weight ≈kg
GE4C	4		12		5	3	8	0.3	0.3	16	2.1	5.4	0.003
GE5C	5		14		6	4	10	0.3	0.3	13	3.6	9.1	0.005
GE6C	6		14		6	4	10	0.3	0.3	13	3.6	9.1	0.004
GE8C	8		16		8	5	13	0.3	0.3	15	5.8	14	0.007
GE10C	10		19		9	6	16	0.3	0.3	12	8.6	21	0.011
GE12C	12		22		10	7	18	0.3	0.3	10	11	28	0.017
GE15C	15		26		12	9	22	0.3	0.3	8	18	45	0.026
GE17C	17		30		14	10	25	0.3	0.3	10	22	56	0.040
GE20C	20		35		16	12	29	0.3	0.3	9	31	78	0.064
GE25C	25		42		20	16	35.5	0.6	0.6	7	51	127	0.115
GE30C	30		47		22	18	40.7	0.6	0.6	6	65	166	0.149
GE35C	35		55		25	20	47	0.6	1	6	84	211	0.228
GE40C	40		62		28	22	53	0.6	1	7	104	262	0.318
GE45C	45		68		32	25	60	0.6	1	7	135	337	0.421
GE50C	50		75		35	28	66	0.6	1	6	166	415	0.562

GEG4C		4		14	7	4	10	0.3	0.3	20	3.6	9.1	0.005
GEG5C		5		16	9	5	13	0.3	0.3	21	5.8	14	0.008
GEG6C		6		16	9	5	13	0.3	0.3	21	5.8	14	0.006
GEG8C		8		19	11	6	16	0.3	0.3	21	8.6	21	0.014
GEG10C		10		22	12	7	18	0.3	0.3	18	11	28	0.021
GEG12C		12		26	15	9	22	0.3	0.3	18	18	45	0.033
GEG15C		15		30	16	10	25	0.3	0.3	16	22	56	0.049
GEG17C		17		35	20	12	29	0.3	0.3	19	31	78	0.083
GEG20C		20		42	25	16	35.5	0.3	0.3	17	51	127	0.153
GEG25C		25		47	28	18	40.7	0.6	0.6	17	65	166	0.203
GEG30C		30		55	32	20	47	0.6	1	17	84	211	0.304
GEG35C		35		62	35	22	53	0.6	1	16	104	262	0.408
GEG40C		40		68	40	25	60	0.6	1	17	135	337	0.542
GEG45C		45		75	43	28	66	0.6	1	15	166	415	0.713

GE..C is equivalent to GE..UK INA, GEG..C is equivalent to GE..FW INA and GEH..C SKF.

Key Product Features

Capable of withstanding radial, axial, or combined loads
Supports tilting motion within specific angle range (centering function) to compensate for installation errors
No additional lubrication required - maintenance-free operation
Low friction, high wearing resistance, and extended service life

Application Information

Where is the GE5C Bearing Used?

Widely used in mechanical systems requiring simultaneous bearing of radial loads and angular deviations, including Mechanical Engineering, Automotive Industry, Construction Machinery, Aerospace, and related applications.

Why Choose Spherical Plain Bearings?

Spherical plain bearings can simultaneously bear radial loads and accommodate angular deflection in mechanical systems, providing flexibility where traditional bearings may fail.

How to Choose the Correct Bearing Size?

Select according to inner diameter, which determines the shaft diameter where the bearing will be installed.

Installation Instructions

Lubrication: Inject lubricating grease or oil into the lubrication groove to ensure coverage of the rolling surface
Inner Ring Tight Fit: Use a sleeve to press into the shaft and apply even force to avoid tilting
Outer Ring Loose Fit: Directly press into the seat hole, adding a copper rod to disperse impact force when hammering

Purchasing Guide

Load Bearing Capacity: Different bearing types vary significantly in radial and axial load capabilities
Swing Angle: Some models allow larger deflection angles for applications requiring substantial angular movement
Material Selection: Inner and outer ring materials directly affect wear resistance and service life
Lubrication Method: Pre-lubrication designs or regular lubrication requirements impact maintenance cycles

Tag:

Place of Origin:	China
Brand Name:	SYX
Certification:	ISO/TS 16949:2009
Model Number:	GE5C

Minimum Order Quantity:	1000pcs
Price:	$0.50
Packaging Details:	indusrial pack
Delivery Time:	5-8 working days
Payment Terms:	T/T
Supply Ability:	5000pcs per week
