Name: GEBK Series Angular Contact Spherical Plain Bearing 495kN Static Load Hard Chromium Plating
Brand: Shanghai Yongxing Bearing Manufacturing Co., Ltd.
SKU: GEBK S
Availability: InStock

Detail Information

Applications:	Hydraulic And Pneumatic Cylinders	Package:	Roll Pack + Carton Box
Number Of Row:	Single Row	Hs Code:	8482109000 , 8483300090 , 8482800000
Installationmethod:	Press Fit / Shrink Fit	Warranty:	6 Months
Oil Lubrication Methods:	Oil Drip Feed	Precision Rating:	P5,P4
Finishing:	Black, Antioxidant	Applicable Industries:	Machinery Repair Shops
Type:	Radial / Thrust / Angular Contact	Inner Diameter:	20 Mm
Static Load:	495kN	Cage Material:	Nylon,steel,brass
Model No:	Angular Contact Spherical Plain Bearings
Highlight:	495kN Static Load Spherical Plain Bearing , Hard Chromium Plating Angular Contact Bearing , GEBK Series Spherical Plain Bearing

Product Description

GEBK...S Series Bearings

Product Overview

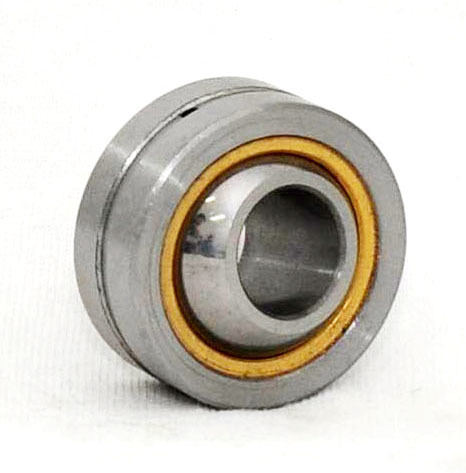

High-performance bearings featuring a carbon steel outer ring with bronze liner and hardened carbon chromium steel inner ring. The sliding surface is treated with hard chromium plating for enhanced durability and performance.

Key Features

Carbon steel outer ring with bronze liner for optimal performance
Hardened carbon chromium steel inner ring for superior strength
Hard chromium plating on sliding surface for enhanced durability
Available in multiple sizes from 5mm to 30mm bore diameter

Technical Specifications

Bearing Number	d (mm)	D (mm)	B (mm)	C (mm)	dk (mm)	rs min (mm)	r1s min (mm)	α˚ ≈	Dynamic Load (kN)	Static Load (kN)	Weight ≈ (kg)
GEBK5S	5	16	8	6	11.112	0.3	0.3	13	3.3	7.8	0.009
GEBK6S	6	18	9	6.75	12.7	0.3	0.3	13	4.3	9.8	0.013
GEBK8S	8	22	12	9	15.88	0.3	0.3	14	6.8	16	0.024
GEBK10S	10	26	14	10.5	19.05	0.3	0.6	14	10	23	0.039
GEBK12S	12	30	16	12	22.23	0.3	0.6	13	13	31	0.058
GEBK14S	14	34	19	13.5	25.4	0.3	0.6	16	17	40	0.084
GEBK16S	16	38	21	15	28.58	0.3	0.6	15	21	50	0.118
GEBK18S	18	42	23	16.5	31.75	0.6	0.6	15	26	61	0.16
GEBK20S	20	46	25	18	34.93	0.6	0.6	15	31	73	0.21
GEBK22S	22	50	28	20	38.1	0.6	0.6	15	38	88	0.26
GEBK25S	25	56	31	22	42.86	0.6	0.6	15	47	110	0.39
GEBK28S	28	62	35	25	47.63	0.6	0.6	15	59	138	0.50
GEBK30S	30	66	37	25	50.8	0.6	0.6	17	63	148	0.61

Tag:

Place of Origin:	Shanghai, China
Brand Name:	SYX
Certification:	ISO/TS 16949：2009
Model Number:	GEBK S

Minimum Order Quantity:	100 PCS
Packaging Details:	wooden pallet
Delivery Time:	30 working days
Payment Terms:	L/C,T/T
