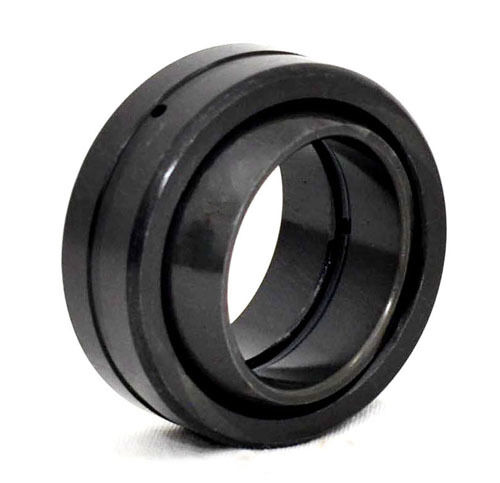

Name: GE...ES Self lubricating Spherical Plain Bearings High Load Plain Bearings
Brand: Shanghai Yongxing Bearing Manufacturing Co., Ltd.
SKU: GE...ES
Availability: InStock

Detail Information

Features:	Maintenance	Bearing Type:	Rod End Bearing
Dimension:	40x62x28mm	Inner Diameter:	160mm
Thickness:	85	Material:	Chrome Steel / Stainless Steel / Bronze
Size:	406819mm	Static Load:	166kN
Maintenance:	Self-lubricating	Single Gross Weight:	2.5 Kg
Hardness:	57-63	Package:	Industrial Packaging
Precision:	P0	Weight:	0.17kg
Bore:	30 Mm
Highlight:	Self lubricating Spherical Plain Bearing , Spherical High Load Plain Bearings , Static Load 166kN GE Series Bearing

Product Description

GE...ES Spherical Plain Bearings

Outer ring constructed from carbon chromium steel, fractured, hardened and phosphated, with sliding surface treated with MoS2. Inner ring made of carbon chromium steel, hardened and phosphated, with sliding surface treated with MoS. All bearings feature an annular groove and lubrication holes in each ring except those of the E design. Bearings of the 2RS design are equipped with seals at both sides.

Technical Specifications

Bearing number	Dimensions mm								Load ratings kN		Weight ≈kg
	d	D	B	C	dk	rs min	r1s min	α ˚ ≈	Dynamic	Static
GE4E	4	12	5	3	8	0.3	0.3	16	2	10	0.003
GE5E	5	14	6	4	10	0.3	0.3	13	3.4	17	0.005
GE6E	6	14	6	4	10	0.3	0.3	13	3.4	17	0.004
GE8E	8	16	8	5	13	0.3	0.3	15	5.5	27	0.007
GE10E	10	19	9	6	16	0.3	0.3	12	8.1	40	0.011
GE12E	12	22	10	7	18	0.3	0.3	10	10	53	0.017
GE15ES	15	26	12	9	22	0.3	0.3	8	16	84	0.026
GE17ES	17	30	14	10	25	0.3	0.3	10	21	106	0.040
GE20ES	20	35	16	12	29	0.3	0.3	9	30	146	0.064
GE25ES	25	42	20	16	35.5	0.6	0.6	7	48	240	0.115
GE30ES	30	47	22	18	40.7	0.6	0.6	6	62	310	0.149
GE35ES	35	55	25	20	47	0.6	1	6	79	399	0.228
GE40ES	40	62	28	22	53	0.6	1	7	99	495	0.318
GE45ES	45	68	32	25	60	0.6	1	7	127	637	0.421
GE50ES	50	75	35	28	66	0.6	1	6	156	780	0.562
GE55ES	55	85	40	32	74	0.6	1	7	200	1000	0.864
GE60ES	60	90	44	36	80	1	1	6	245	1220	1.03
GE70ES	70	105	49	40	92	1	1	6	313	1560	1.57
GE80ES	80	120	55	45	105	1	1	6	400	2000	2.32
GE90ES	90	130	60	50	115	1	1	5	488	2440	2.79
GE100ES	100	150	70	55	130	1	1	7	607	3030	4.44
GE110ES	110	160	70	55	140	1	1	6	654	3270	4.83
GE120ES	120	180	85	70	160	1	1	6	950	4750	8.11
GE140ES	140	210	90	70	180	1	1	7	1070	5350	11.2
GE160ES	160	230	105	80	200	1	1	8	1360	6800	14.1
GE180ES	180	260	105	80	225	1.1	1.1	6	1530	7650	18.5
GE200ES	200	290	130	100	250	1.1	1.1	7	2120	10600	28.4
GE220ES	220	320	135	100	275	1.1	1.1	8	2320	11600	35.7
GE240ES	240	340	140	100	300	1.1	1.1	8	2550	12700	39.7
GE260ES	260	370	150	110	325	1.1	1.1	7	3030	15190	51.5
GE280ES	280	400	155	120	350	1.1	1.1	6	3570	17850	64.9
GE300ES	300	430	165	120	375	1.1	1.1	7	3800	19100	77.6

Usage Questions & Answers

Where is the GE...ES bearing used?

These bearings handle high radial loads with oscillating motion, making them ideal for heavy machinery linkages, hydraulic cylinder joints, and pivot points in construction, agricultural, and material handling equipment.

How to choose the right type?

Match the bearing type to your operating environment:

Standard Type: For maintainable, high-load applications
2RS Sealed Type: For dirty or wet conditions requiring contamination protection
E Maintenance-Free Type: Where lubrication access is impossible or impractical

How to install it correctly?

Ensure proper fits: interference fit for housing, clearance fit for shaft. Press-fit only the required ring using correct tools—never strike sliding surfaces directly. Axially secure the bearing after installation to prevent movement.

How to lubricate?

Fully grease standard and 2RS types before use and relubricate periodically via lubrication nipple. Do not lubricate E-type bearings as they are maintenance-free.

Purchasing Guide

Heavy-Duty Oscillating Applications

(e.g., excavator linkages, crane pivots)

Recommend: Standard or 2RS type for high load and shock resistance

Harsh Environment & Low Maintenance

(e.g., agricultural gear, outdoor conveyors)

Recommend: 2RS or E type for seal protection against dirt and moisture

General Industrial Articulation

(e.g., valve actuators, machinery joints)

Recommend: Standard type for clean environments; 2RS if sealed protection is needed

Key Specifications to Confirm:

Size (bore, OD, width)
Correct suffix (2RS / E)
Load rating vs. application needs
Standard phosphating & MoS2 coating included

Tag:

Place of Origin:	Shanghai, China
Brand Name:	SYX
Certification:	ISO/TS 16949：2009
Model Number:	GE...ES

Minimum Order Quantity:	100 PCS
Packaging Details:	wooden pallet
Delivery Time:	30 working days
Payment Terms:	L/C,T/T
