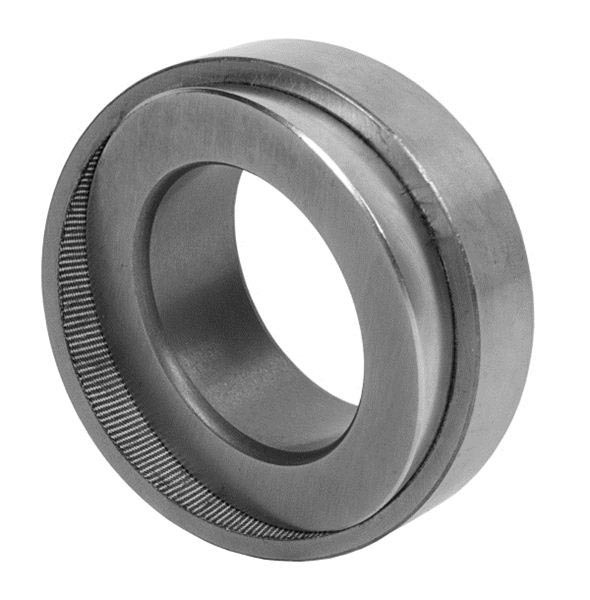

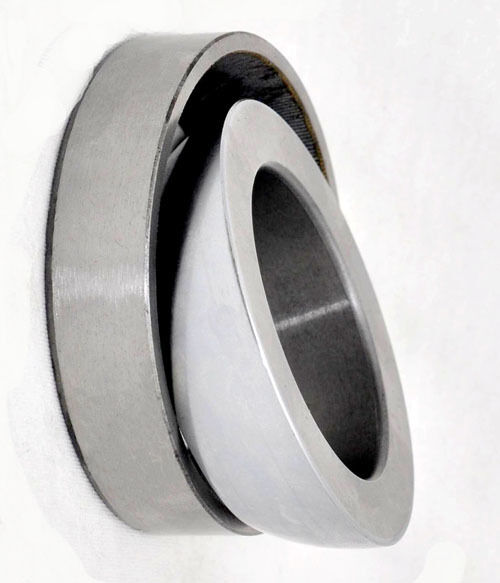

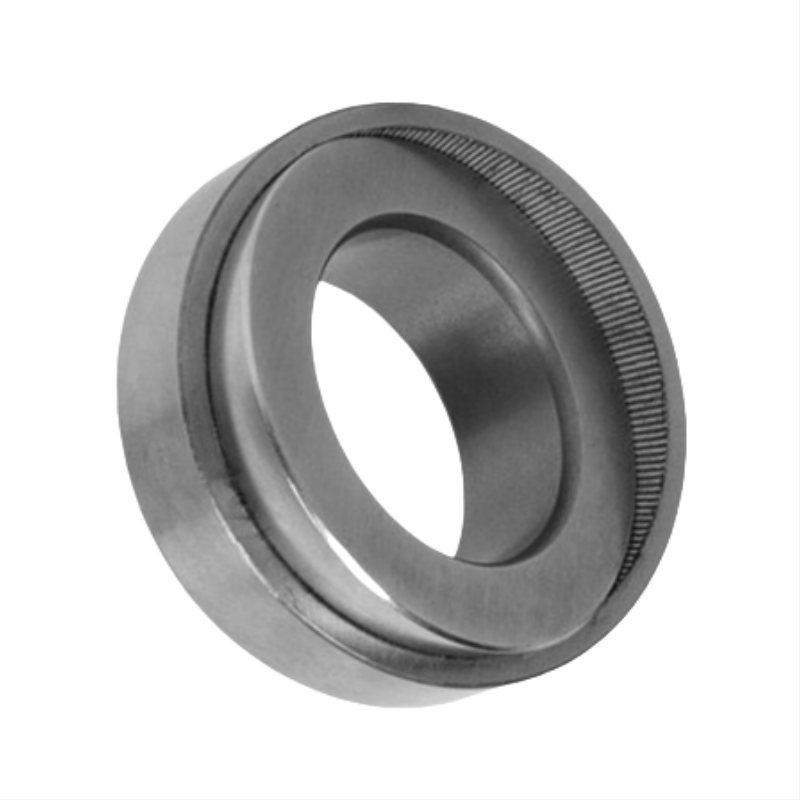

PTFE Lined Angular Contact Spherical Plain Bearing Self lubricating High Temperature Resistance

PTFE Lined Angular Contact Spherical Plain Bearing Self lubricating High Temperature Resistance
PTFE Lined Angular Contact Spherical Plain Bearing Self lubricating High Temperature Resistance PTFE Lined Angular Contact Spherical Plain Bearing Self lubricating High Temperature Resistance PTFE Lined Angular Contact Spherical Plain Bearing Self lubricating High Temperature Resistance PTFE Lined Angular Contact Spherical Plain Bearing Self lubricating High Temperature Resistance
Basic Information
Place of Origin: China
Brand Name: SYX
Certification: ISO/TS 16949:2009
Model Number: GAC..T
Minimum Order Quantity: 100pcs
Price: $2.00 - $50.00
Packaging Details: industrial pack
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 500pcs per week
Get Best Price
Chat Now
Detail Information
Type: Spherical Plain Bearings Precision Rating: P0
Bore Size: 25 - 160mm Material: Steel/PTFE Fabric Material,
Service: OEM Customized Services,OEM Or Private Label Accepted. Feature: Self-lubricated,High Temperature Resistance .carrying Capability,no Noise,High Speed,low Noise
Application: Industry,engineering,Machinery,Agricultural,Engineering Hydraulic Cylinders Sample: Available,Free Sample Available,free
Sliding Contact Surfaces: Steel / PTEF Composite,Steel / PTFE,Steel/PTFE Packing: Individual Or Industrial,Netual Packing,Industrial Packing,As Your Requirement
Highlight:

Self lubricating Angular Contact Bearing

,

PTFE Lined Spherical Plain Bearing

,

PTFE Angular Contact Spherical Plain Bearing

Product Description

Angular Contact Radial Bearing GAC..T Self-lubricating Spherical Plain Bearing
Angular contact radial bearing GAC..T is a self-lubricating joint bearing designed to withstand combined radial and unidirectional axial loads. Widely used in engineering machinery, automotive suspensions, agricultural machinery, and industrial automation equipment. Its core advantages include maintenance-free operation and excellent centering performance, making it suitable for low-speed swinging or reciprocating motion conditions.
Material Specifications

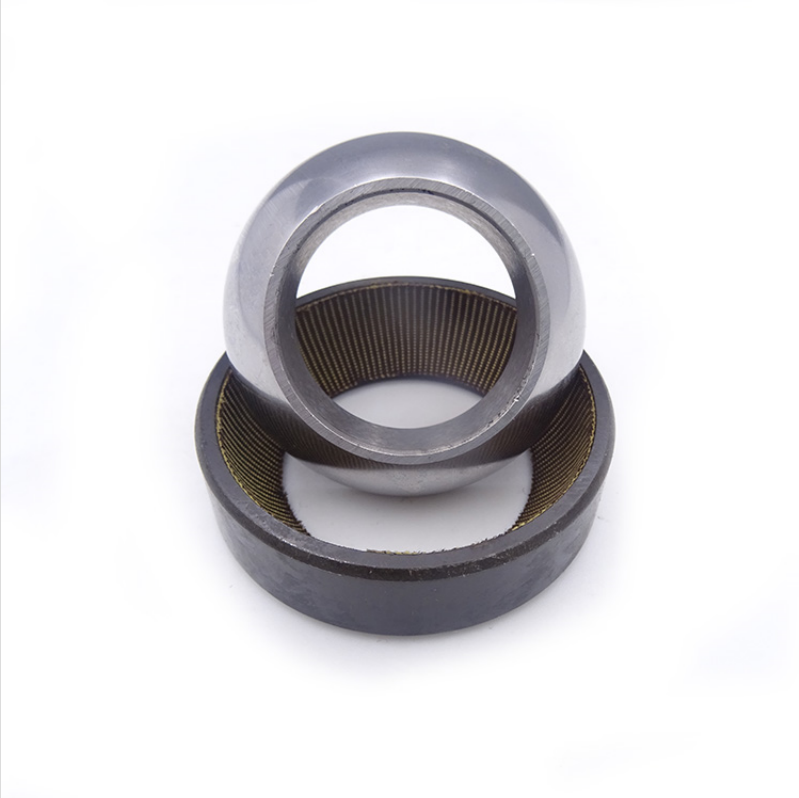

Both outer and inner rings are manufactured from carbon chromium steel and hardened for durability. The outer race sliding surface features PTFE fabric lining, while the spherical surface of the inner ring is hard chrome plated for enhanced performance.
Product Features
  • Load Capacity: Capable of withstanding both large radial loads and unidirectional axial loads simultaneously
  • Alignment Angle: Allows for deviation compensation (typically 1°-4.5°) to accommodate installation errors and structural deformations
  • Operating Conditions: Suitable for low-speed swinging and reciprocating motion, not recommended for high-speed rotation
  • Maintenance-Free: Built-in PTFE lubrication layer eliminates the need for additional lubrication, enabling long-term maintenance-free operation

Specifications:

Bearing Code Dimensions (mm)   Load Rating kN Weight
d D B C T dk S rs.rls a° Dynamic Static ≈kg
smin
GAC25T 25 47 15 14 15 42 0.6 1 2.5 89 225 0.148
GAC28T 28 52 15 15 16 47 1 1 2 100 270 0.186
GAC30T 30 55 17 15 17 49.5 1.3 1 4.3 110 285 0.208
GAC32T 32 58 17 16 17 52 2 1 2 125 320 0.241
GAC35T 36 62 18 16 18 55.5 2.1 1 4 135 340 0.268
GAC40T 40 68 19 17 19 62 2.8 1 3.5 160 400 0.327
GAC45T 45 75 20 18 20 68.5 3.5 1 3 190 470 0.416
GAC50T 50 80 20 19 20 74 4.3 1 1.5 215 540 0.455
GAC55T 55 90 23 20 23 82 5 1.1 4 250 630 0.645
GAC60T 60 95 23 21 23 88.5 5.7 1.1 2.5 285 710 0.714
GAC65T 65 100 23 22 23 93.5 6.5 1.1 1 315 790 0.759
GAC70T 70 110 25 23 25 102 7.2 1.1 2 360 900 1.04
GAC75T 75 115 25 24 25 107 7.9 1.1 1 395 980 1.12
GAC80T 80 125 29 25.5 29 115 8.6 1.1 3.5 450 1120 1.54
GAC85T 85 130 29 26.5 29 122 9.4 1.1 2 495 1240 1.61
GAC90T 90 140 32 28 32 128.5 10.1 1.5 3.5 550 1380 2.09
GAC95T 95 145 32 29.5 32 135 10.8 1.5 2 610 1530 2.22
GAC100T 100 150 32 31 32 141 11.6 1.5 0.5 670 1680 2.34
GAC105T 105 160 35 32.5 35 148 12.3 2 2 740 1850 2.93
GAC110T 110 170 38 34 38 155 13 2 3 810 2020 3.68
GAC120T 120 180 38 37 38 168 14.5 2 0.5 955 2390 3.97
GAC130T 130 200 45 43 45 188 18 2.5 1 1240 3110 5.92
GAC140T 140 210 45 43 45 198 19 2.5 1 1310 3270 6.33
GAC150T 150 225 48 46 48 211 20 3 1 1490 3730 8.01
GAC160T 160 240 51 49 51 225 20 3 1 1690 4240 9.79
 GAC..T is equivalent to GE..SW INA and GAC..F SKF.





Applications:

PTFE Lined Angular Contact Spherical Plain Bearing Self lubricating High Temperature Resistance 0
Application Information
Where is this bearing used?
Construction machinery: excavator arm connections, loader steering knuckles; Automotive systems: balance bridge suspensions, steering rod joints; Agricultural machinery: harvester transmission arms, tractor suspension devices; Industrial equipment: welding robot joints, rotary table support points.
Why choose spherical plain bearings?
These bearings offer excellent impact resistance, dust resistance, and lubrication-free operation, significantly enhancing machine lifetime and reliability.
How to choose the correct bearing size?
Select according to inner diameter, which determines the shaft diameter where the bearing will be installed.
Installation Guidelines
  1. Align Installation Direction: Ensure proper alignment of inner and outer rings, paying attention to lubrication grooves or positioning marks as per drawing requirements
  2. Use Specialized Tools for Press Fit: Apply uniform force to the inner ring end face using a press or hydraulic device with a sleeve (when inner ring is tightly fitted with shaft). Never transmit installation force through the outer ring or rolling elements to prevent sliding surface damage
  3. Control Pressing Speed and Force: Slowly press in to avoid deformation of the inner ring or peeling of the chrome plating layer caused by impact loads
  4. Bidirectional Load Applications: For equipment requiring bidirectional axial force, install two GAC.T bearings back-to-back or face-to-face in pairs with consistent preload force
Purchasing Guide
Environmental Adaptability Considerations: For humid environments, select reinforced sealing types (such as GAC.T-SL). For strong corrosive environments, consider custom stainless steel materials or specialized coatings to ensure optimal performance and longevity.
