Name: GE AX Thrust Angular Contact Spherical Plain Bearing With Lubricating Oil Groove
Brand: Shanghai Yongxing Bearing Manufacturing Co., Ltd.
SKU: GE..AX
Price: 27.00 USD
Availability: InStock

Detail Information

Loadtype:	Radial And Axial Loads	Precisiongrade:	P0, P6, P5 (varies By Model)
Outerring:	Spherical	Sealing:	Metal Shielded Or Rubber Sealed
Material:	High Carbon Chromium Steel	Lubrication:	Grease Lubricated
Operatingtemperaturerange:	-30°C To +120°C	Corrosionresistance:	High
Innerring:	Spherical	Installationmethod:	Press Fit Or Shrink Fit
Contactangle:	Angular Contact	Productname:	Angular Contact Spherical Plain Bearing
Applications:	Automotive, Industrial Machinery, Construction Equipment	Bearingtype:	Spherical Plain Bearing
Surfacetreatment:	Chrome Plated Or Heat Treated
Highlight:	Thrust Angular Contact Spherical Plain Bearing , Thrust Spherical Plain Bearing , Lubricating Oil Groove Spherical Plain Bearing

Product Description

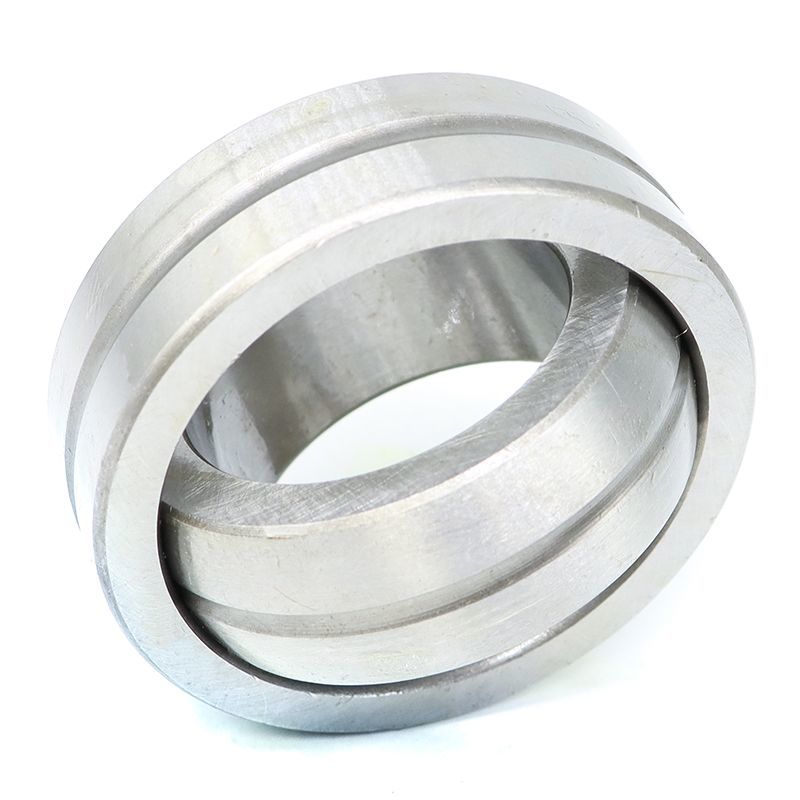

GE..AX Thrust Spherical Plain Bearing With Lubricating Oil Groove

Maintenance-required bearing with lubricating groove designed for heavy-duty applications requiring radial and unidirectional axial (combined) loads.

Product Overview

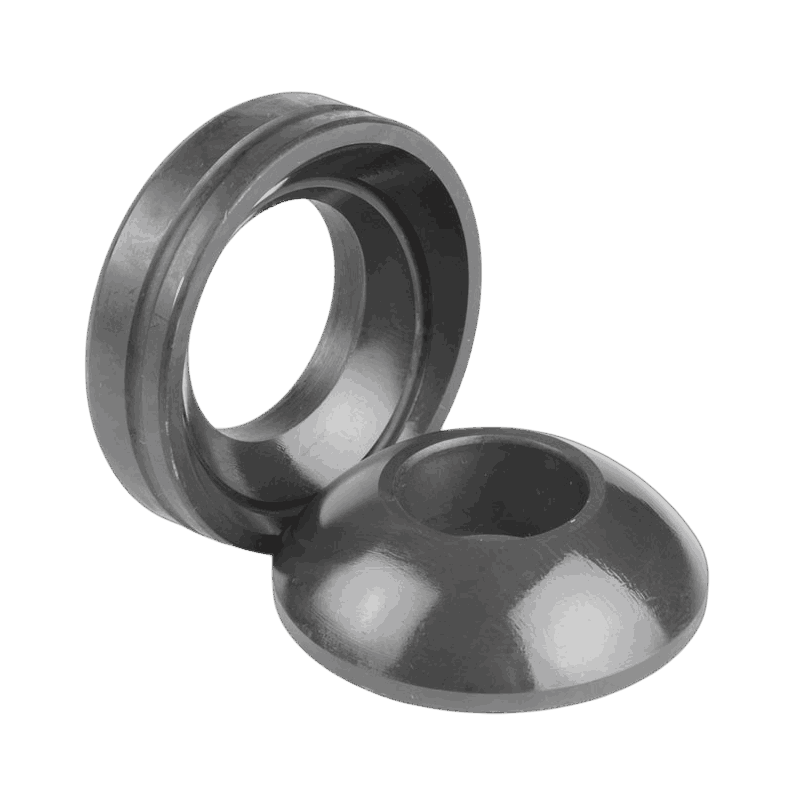

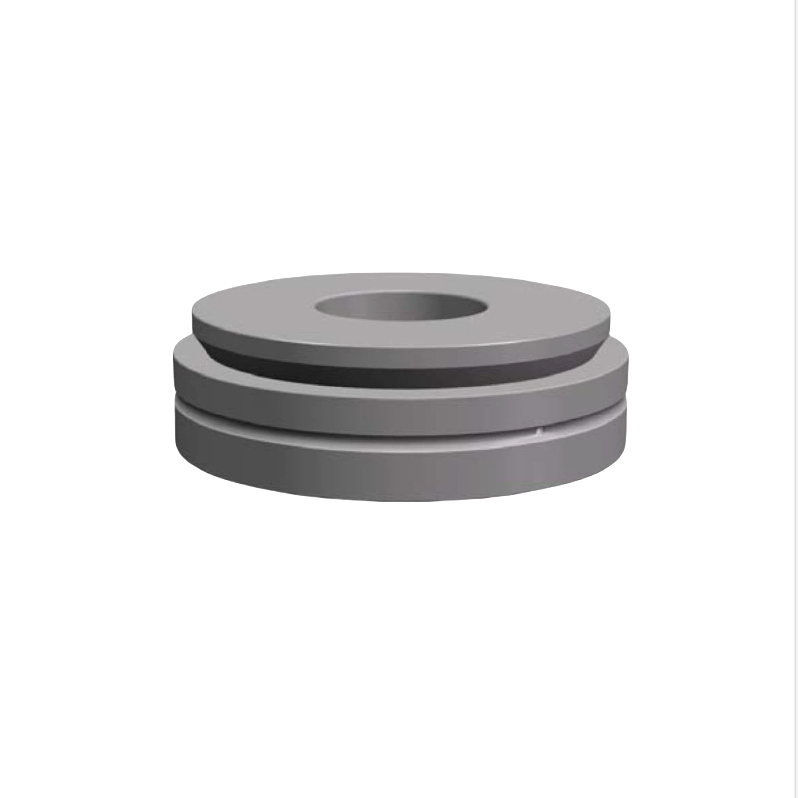

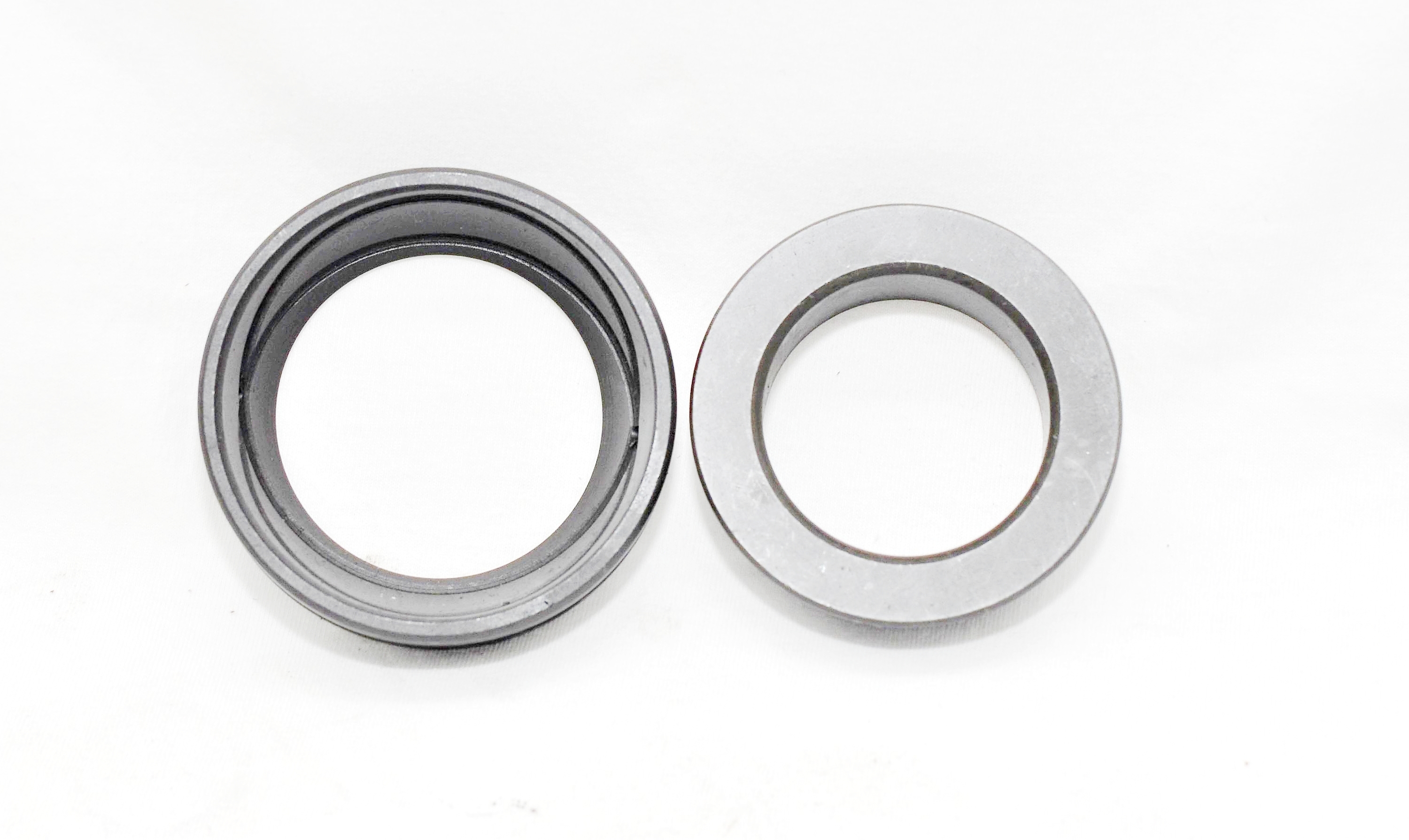

GE..AX bearings are thrust joint bearings engineered to withstand unidirectional axial loads or combined loads. Featuring self-aligning capabilities, they are ideal for low-speed swing and heavy load conditions. The design includes a flat-bottomed seat with lubricating oil holes on the inner ring and a spherical structure on the outer ring, effectively compensating for installation errors and structural deformations.

Material Specifications

Both outer and inner rings manufactured from carbon chromium steel
Hardened and phosphorization treatment for enhanced durability
Outer ring features lubricating groove and holes with two cross lubricating grooves on sliding surface
Sliding surface treated with MoS2 for improved performance

Specifications:

Bearing Code	Dimensions (mm)														Load Rating kN		Weight
	d	D	H	dk	d1	d2	d3	B	C	S	A	R1	R2	a°	Dynamic	Static	≈kg
	d	D	H	dk	d1	d2	d3	B	C	S	A	smin	smin	≈kg	Dynamic	Static	≈kg
GE10AX	10	30	9.5	32	16.5	27.5	21	7.9	6	7	3	0.6	0.2	10	24	120	0.04
GE12AX	12	35	13	37		32	24	9.3	9	8	4	0.6	0.2	9	32.5	163	0.07
GE15AX	15	42	15	45	24	38.9	29	10.7	11	10	5	0.6	0.15	7	52	260	0.12
GE17AX	17	47	16	50		43.4	34	11.5	11.5	11	5	0.6	0.3	6	58.5	300	0.16
GE20AX	20	55	20	60	33.5	50	40	14.3	13	12.5	6	1	0.3	6	75	375	0.25
GE25AX	25	62	22.5	66		57.5	45	16	17	14	6	1	0.3	7	129	640	0.38
GE30AX	30	75	26	80	44	69	56	18	19.5	17.5	8	1	0.3	6	170	850	0.65
GE35AX	35	90	28	98		84	66	22	20	22	8	1	0.3	6	260	1290	1
GE40AX	40	105	32	114	59	98	78	27	22	24.5	9	1	0.3	6	375	1860	1.6
GE45AX	45	120	36.5	130		112	89	31	25	27.5	11	1	0.3	6	490	2450	2.4
GE50AX	50	130	42.5	140	69	122.5	98	33.5	32	30	10	1	0.3	5	655	3250	3.3
GE60AX	60	150	45	160		140	108	37	33	35	12.5	1	0.3	7	735	3650	4.5
GE70AX	70	160	50	170	95	149.5	121	40	36	35	13.5	1	0.3	6	800	4050	5.5
GE80AX	80	180	50	194		168	130	42	36	42.5	14.5	1	0.3	6	1040	5200	7
GE100AX	100	210	59	220	133	195.5	155	50	42	45	15	1	0.3	7	1200	6000	10.5
GE120AX	120	230	64	245		214	170	52	45	52.5	16.5	1	0.3	8	1250	6200	13
GE140AX	140	260	72	272	176	244	198	61	50	52.5	23	1.5	0.6	6	1630	8150	18
GE160AX	160	290	77	310		272	213	65	52	65	23	1.5	0.6	7	1900	9500	23
GE180AX	180	320	86	335	224	300	240	70	60	67.5	26	1.5	0.6	8	2120	10600	31
GE200AX	200	340	87	358		321	265	74	60	70	27	1.5	0.6	8	2360	11800	34

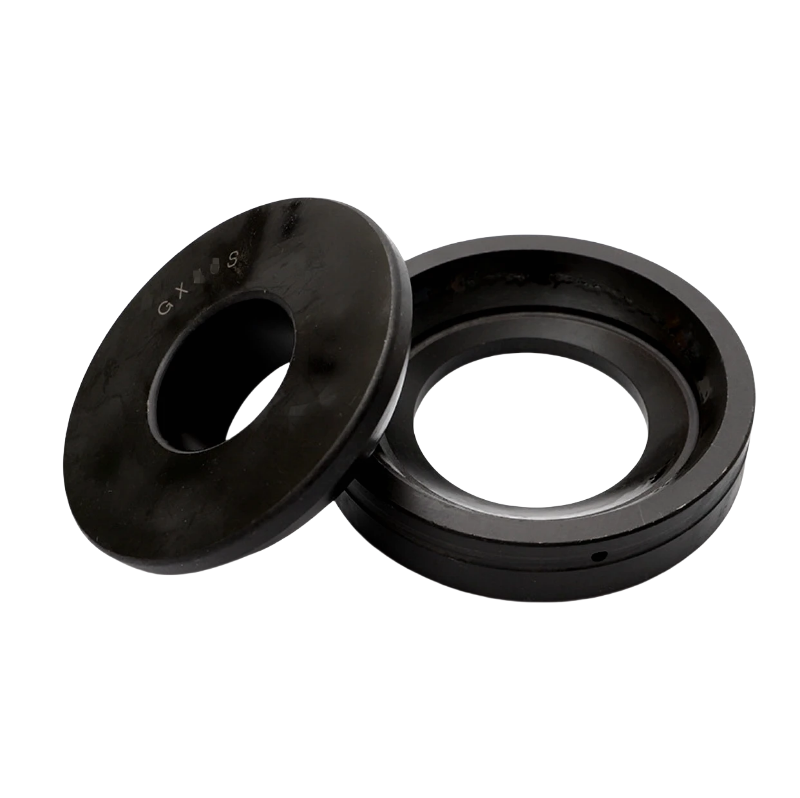

GE..AX is equivalent to GX..S.

Product Features

Load Capacity: Simultaneously withstands large radial loads and unidirectional axial loads (combined loads)
Adjustment Angle: Typically 1°~4.5°, depending on model size (larger sizes have smaller angles)
Operating Conditions: Suitable for low-speed swing (<600 swing/min) and reciprocating motion, not recommended for high-speed rotation
Lubrication Method: Requires regular addition of lubricating grease through oil groove and oil hole; recommended lithium-based or extreme pressure lubricating grease
Temperature Range: Standard range from -30°C to +120°C, up to 150°C under extreme conditions

Important Note: This bearing type cannot withstand bidirectional axial loads. For bidirectional loading requirements, install in pairs in reverse orientation.

Application Information

Common Applications

Construction Machinery: Excavator arm connections, loader steering knuckles, crane pivot points
Automotive Systems: Balance bridge suspension, steering rod joints, transmission shaft universal joints
Industrial Equipment: Welding robot joints, rotary table supports, hydraulic cylinder hinge points
Mining & Metallurgy: Crusher swing arms, conveyor hinges, steel rolling equipment connection parts

Installation Guidelines

Align Installation Direction: Ensure the lubrication groove on the outer ring is oriented toward a position convenient for later maintenance (upward or lateral) to facilitate lubricating grease addition.

Use Specialized Tools for Press Fit: Apply force smoothly and vertically to avoid inner ring deformation or spherical surface damage from eccentric load. Control pressing speed at 0.1-0.3 mm/s to prevent impact-induced coating peeling or retaining frame damage.

Precautions for Paired Installation: For equipment requiring bidirectional axial force resistance, install two GAC.S bearings back-to-back or face-to-face in pairs with consistent preload force to prevent eccentric wear.

Purchasing Guide

Model Selection: Select based on load requirements with priority given to rated dynamic load CC, ensuring C > 1.2 * Peq (equivalent load)
Safety Factor: Increase to 1.5 times or more for high-impact working conditions
Lubrication Maintenance: In dusty environments, add lubricating grease every 500 hours
Extended Maintenance: Models with sealing rings (such as -2RS) can extend lubrication intervals

Tag:

Place of Origin:	China
Brand Name:	SYX
Certification:	ISO/TS 16949:2009
Model Number:	GE..AX

Minimum Order Quantity:	500pcs
Price:	$4.00 - $50.00
Packaging Details:	industrial pack
Delivery Time:	30 days
Payment Terms:	T/T
Supply Ability:	1000pcs per month
