POSB Plain Bearing Bush Male Rod End Bearing Machine Lathed Body 0.19" to 1 Inch

Basic Information
Place of Origin: China
Brand Name: SYX
Certification: ISO/TS 16949:2009
Model Number: POS... GAKR..PB
Minimum Order Quantity: 100pcs
Price: US$0.5 - US$20.00
Packaging Details: white box, plasic bag, color box, ect.
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 100000pcs per week
Get Best Price
Chat Now
Detail Information
Bearing Type: Plain Bearing Bore Size: 0.19"-1"
Surface Treatment: Zinc Plated Lubrication: Pre-lubricated
Thread Size: M5 To M35 (varies By Model) Thread Type: Male / Inch
Body Treatment: Machine Lathed Or Precsion Forged Application: Automotive, Aerospace, Industrial Machinery
Highlight:

Male Rod End Bearing

,

Machine Lathed Rod End Bearing

,

Rod End Bearing 1 Inch


Product Description

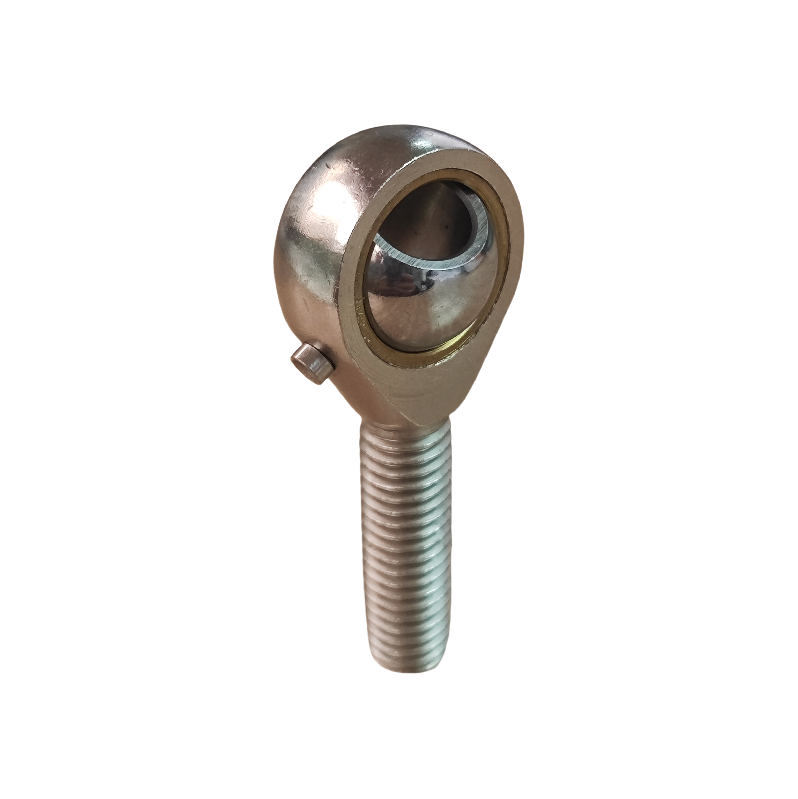

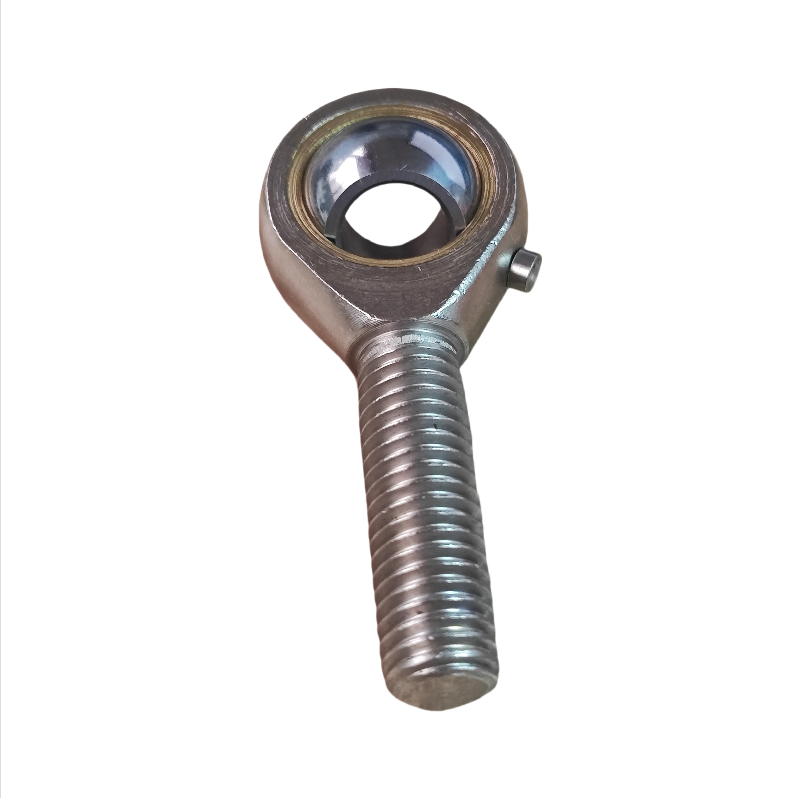

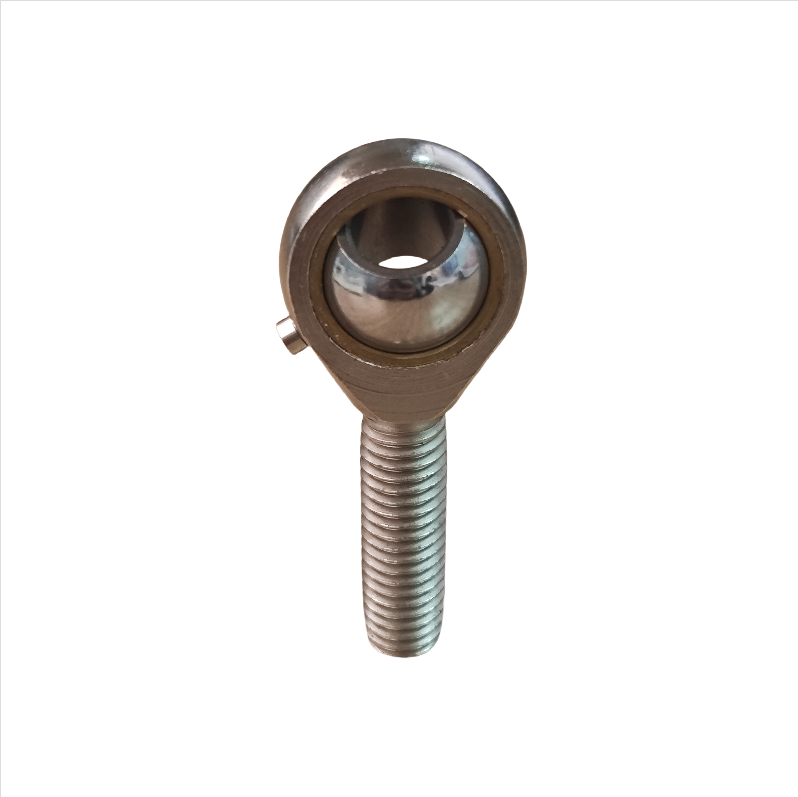

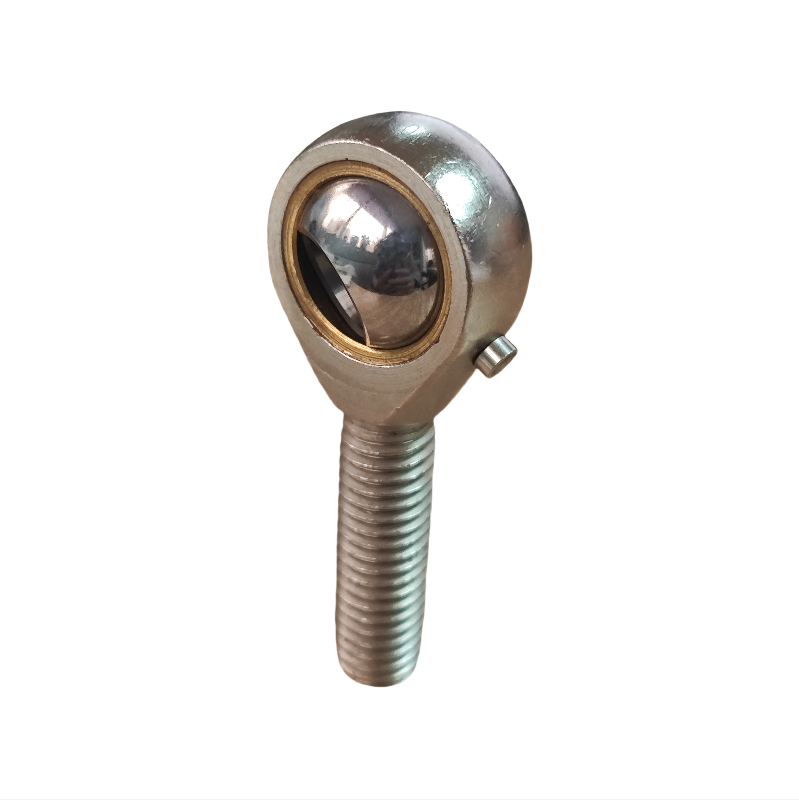

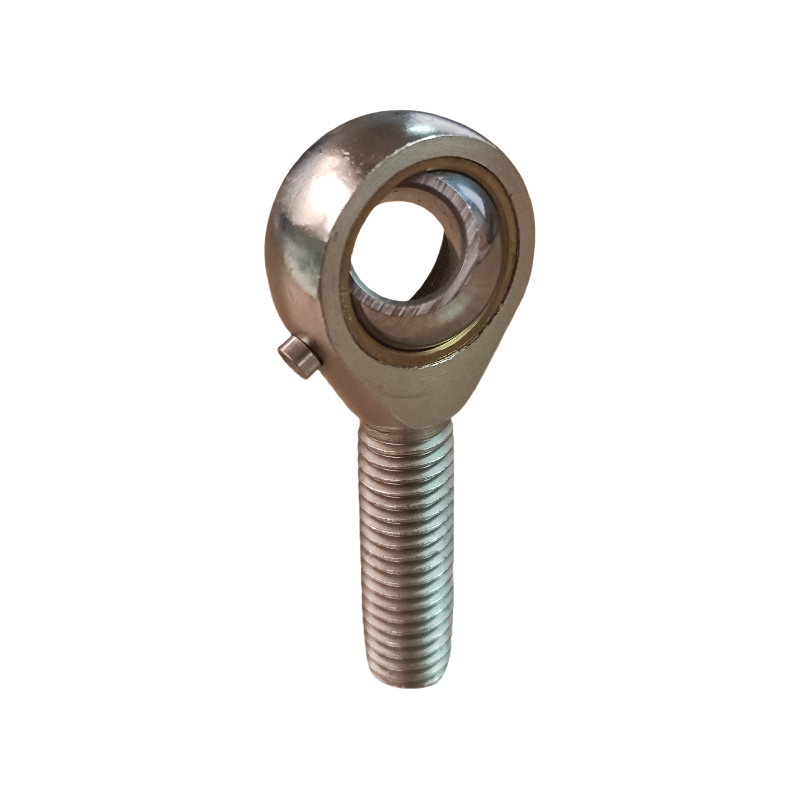

POSB Inch Size Plain Bearing Bush Male Rod End Bearing Machine Lathed Body

A rod end bearing, also known as a spherical rod end joint or universal joint, is a specialized bearing designed for use at the end of rods or in hinged parts, typically at the ends of mechanical linkages.



Rod end bearings can withstand significant radial and axial loads and allow multi-directional movement, making them suitable for applications that require oscillating, tilting, or rotational motion. For example, they are used in hydraulic and pneumatic cylinders, agricultural machinery, construction equipment, and various industrial machines.



POSB Inch Size Plain Bearing Bush Male Rod End Bearing Machine Lathed Body



This products are connectors that support loads and allow motion control.

Product Features
  • Inch sizes from 0.19" to 1"
  • Sliding surface with bronze liner
  • Carbon steel body with zinc plating for corrosion resistance
  • Hardened carbon chromium steel inner ring with hard chrome plating
  • Relubricated via a nipple or a hole on the body.
Technical Specifications
Available Sizes:
5mm to 35mm diameter range
